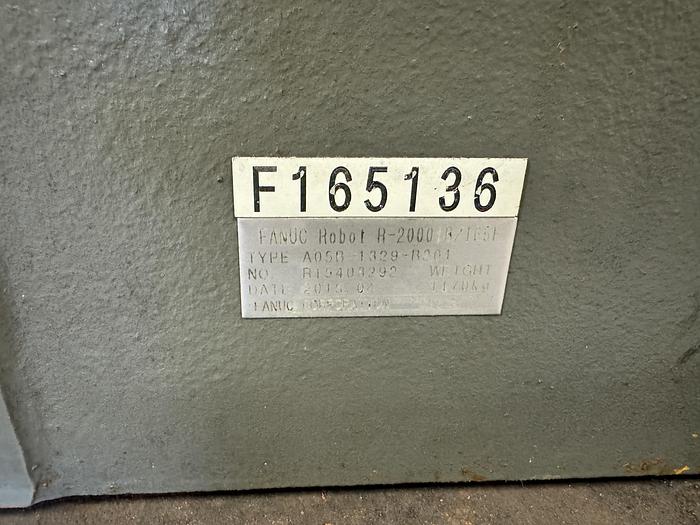

2014 FANUC R-2000IB/165F ARTICULATED ROBOT, 165KG PAYLOAD, 2655MM REACH, R-30IB CONTROL

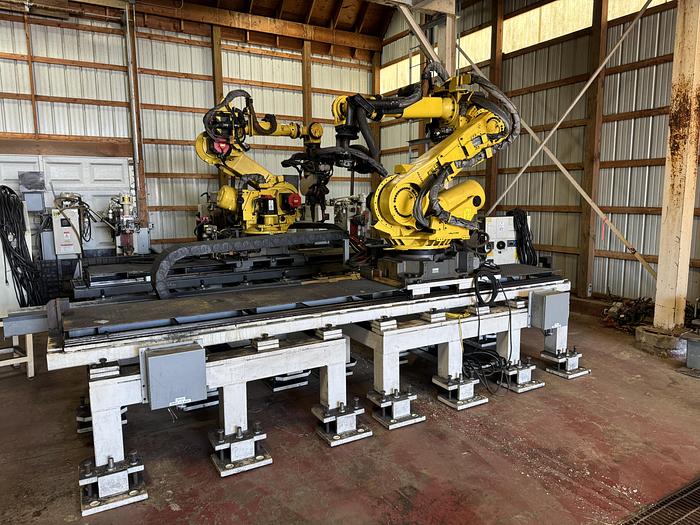

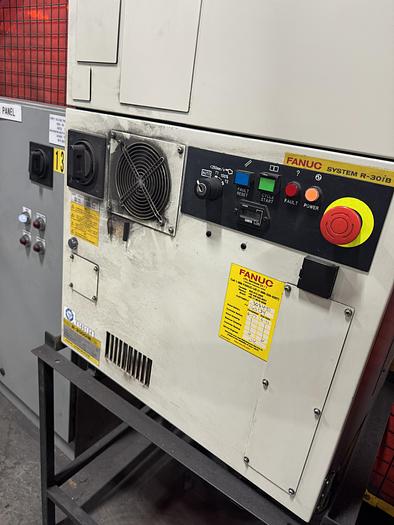

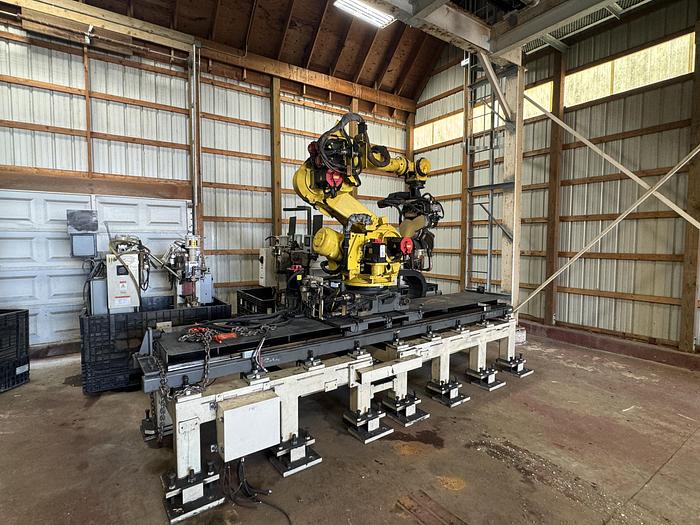

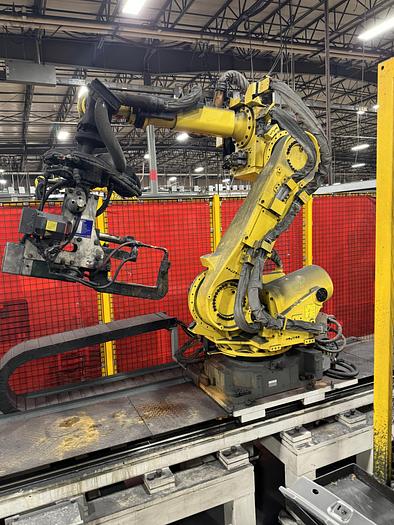

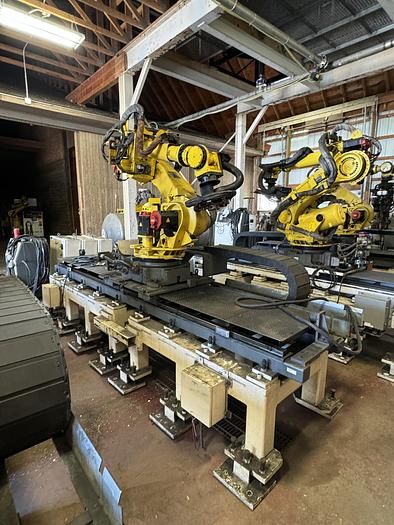

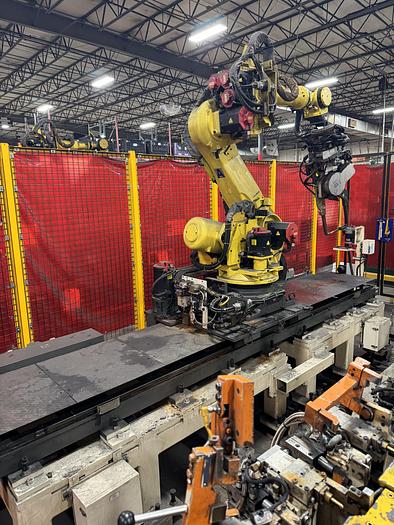

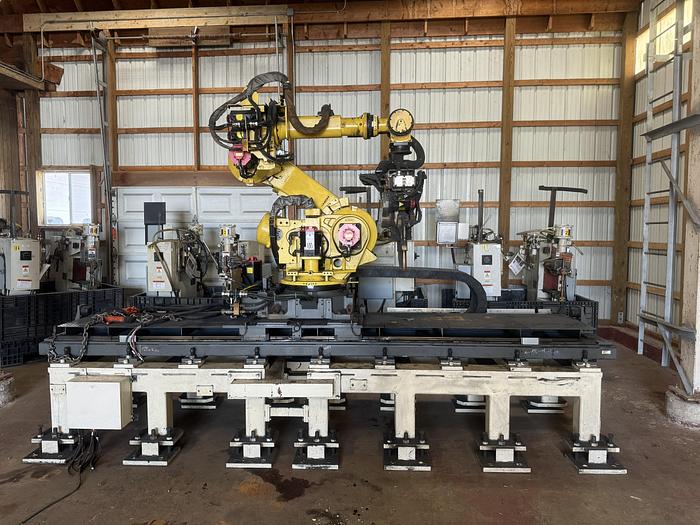

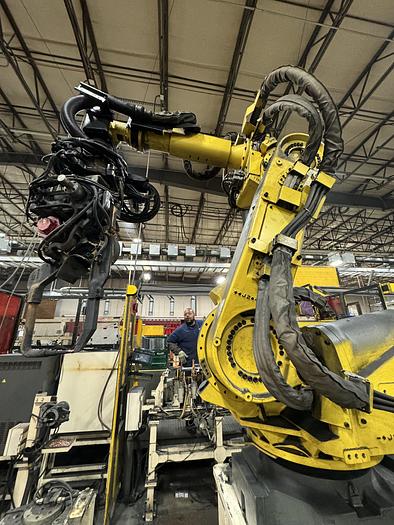

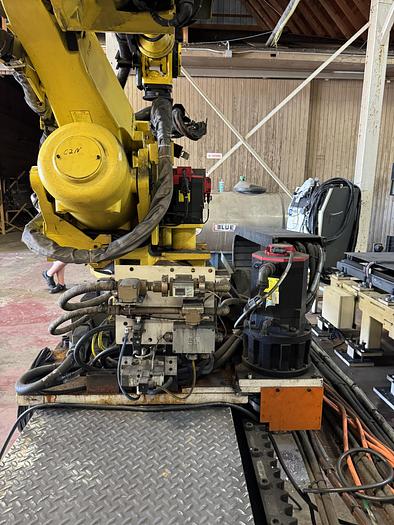

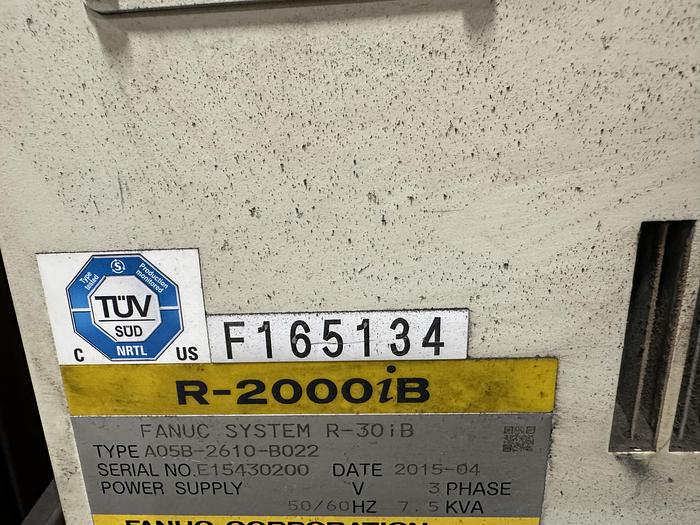

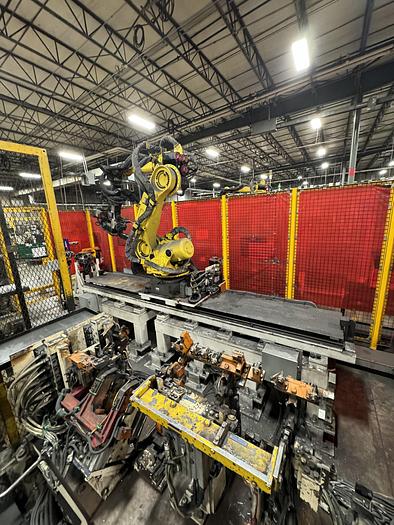

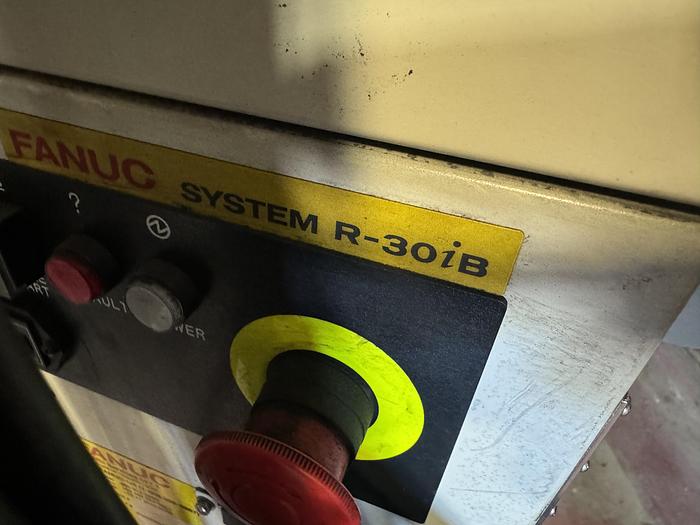

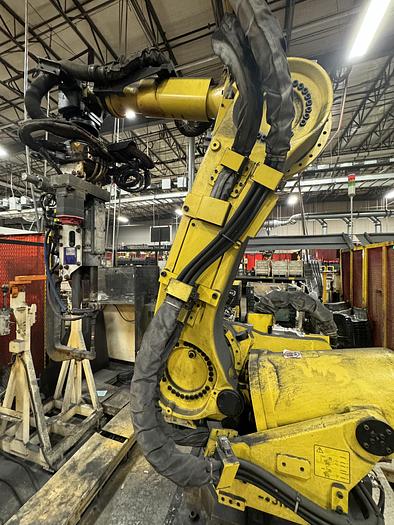

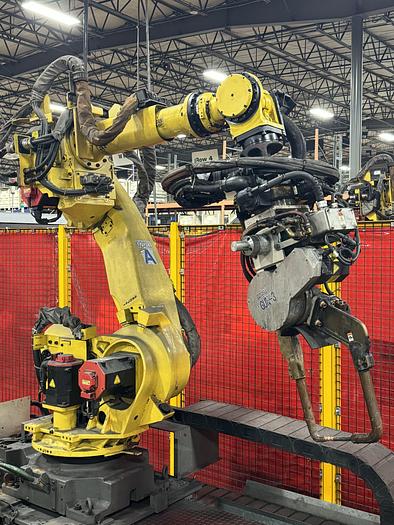

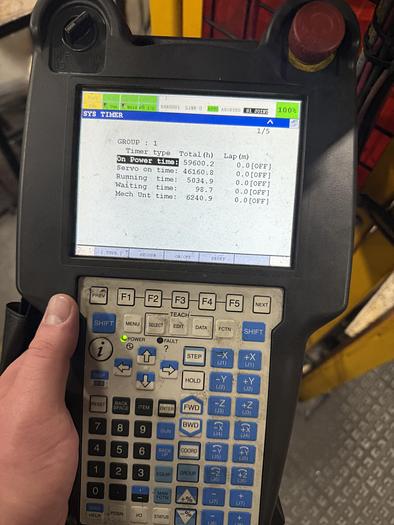

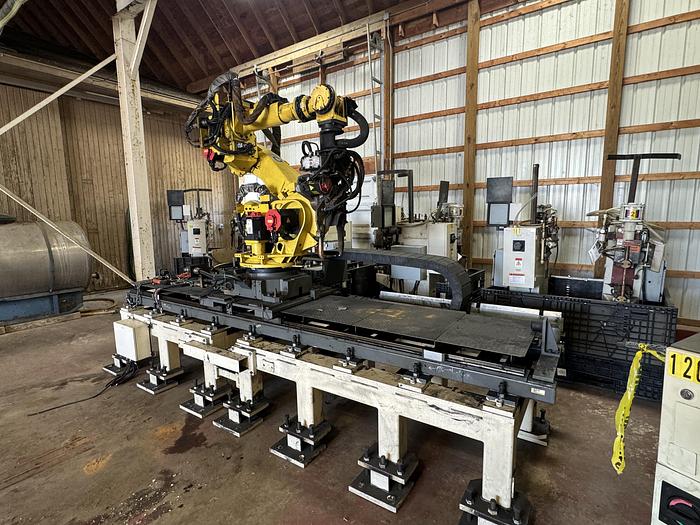

THE 2014 FANUC R-2000IB/165F IS A SIX-AXIS ARTICULATED ROBOT DESIGNED FOR HIGH-PAYLOAD APPLICATIONS INCLUDING SPOT WELDING, MATERIAL HANDLING, AND MACHINE TENDING. IT FEATURES A 165 KG PAYLOAD CAPACITY, A HORIZONTAL REACH OF 2655 MM, AND A REPEATABILITY OF ±0.2 MM. THE ROBOT HAS A MASS OF 1170 KG AND IS CONFIGURED FOR FLOOR MOUNTING. THIS SYSTEM IS EQUIPPED WITH A FANUC R-30IB CONTROLLER, A COLOR TEACH PENDANT, AND CONNECTION CABLES. IT INCLUDES INTEGRATED COMPONENTS FOR SPECIALIZED TASKS, SPECIFICALLY A FANUC 7TH AXIS DRIVE FOR A SPOT WELDING GUN AND AN 8TH AXIS DRIVE FOR A 3-METER ROBOT TRANSFER UNIT. THE UNIT IS FURTHER EQUIPPED WITH A DENGENSHA SERVO SPOT WELD GUN, POWER SUPPLY, AND A DENGENSHA PBM-770E PROGRAM BOX. MOTION SPEEDS ARE 110 DEGREES PER SECOND FOR AXES J1, J2, AND J3, 150 DEGREES PER SECOND FOR J4 AND J5, AND 220 DEGREES PER SECOND FOR J6. THE MOTION RANGE FOR THE AXES IS J1 ±180 DEGREES, J2 +75 DEGREES TO -60 DEGREES, J3 +230 DEGREES TO -132 DEGREES, J4 ±360 DEGREES, J5 ±125 DEGREES, AND J6 ±360 DEGREES.
