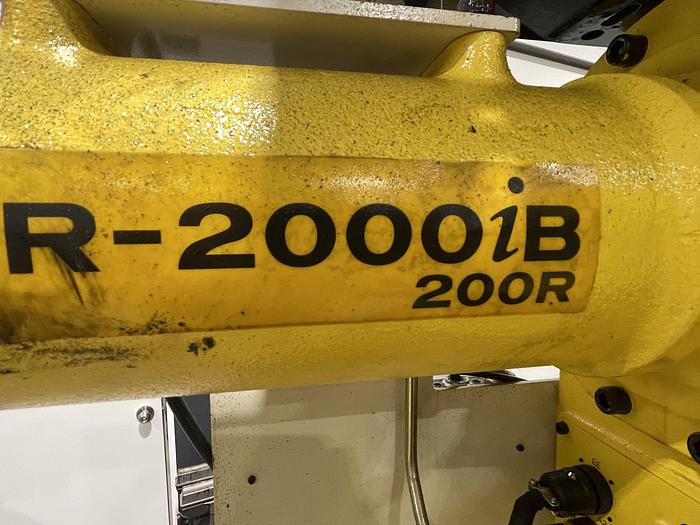

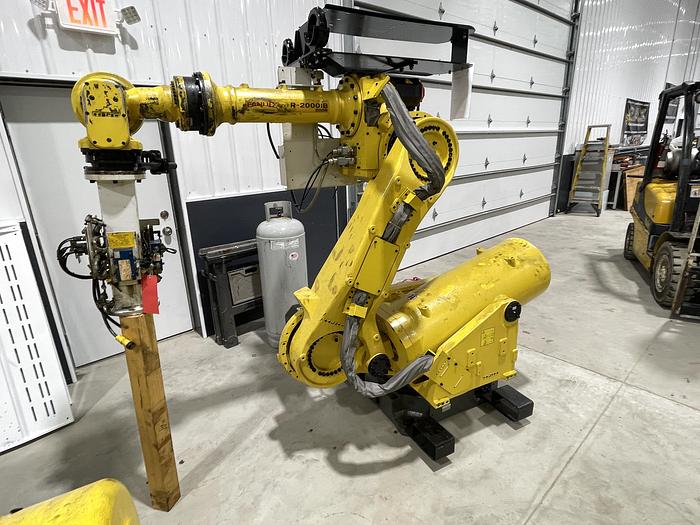

2014 FANUC R-2000IB/200R ROBOT, 200KG PAYLOAD, 3095MM REACH, R-30IA CONTROLLER

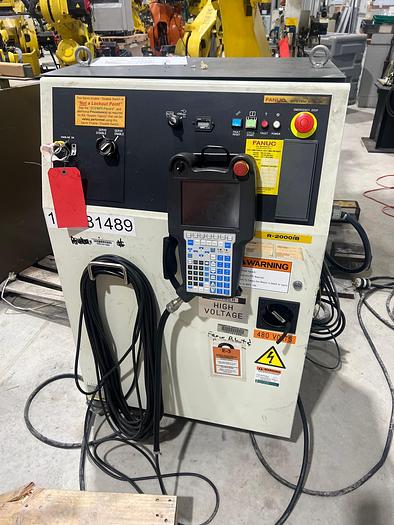

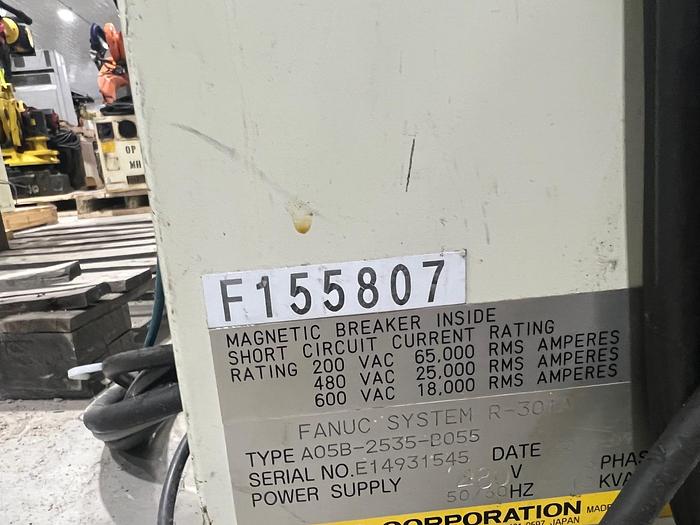

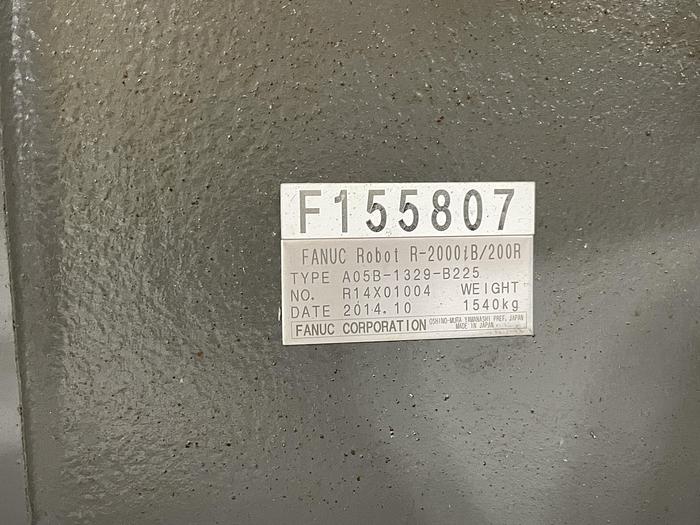

THE 2014 FANUC R-2000IB/200R IS A RACK-MOUNTED SIX-AXIS ARTICULATED INDUSTRIAL ROBOT DESIGNED FOR HIGH-PAYLOAD APPLICATIONS SUCH AS MATERIAL HANDLING, SPOT WELDING, MACHINE TENDING, AND PALLETIZING. IT FEATURES A 200 KG PAYLOAD CAPACITY, A 3095 MM REACH, AND A REPEATABILITY OF ±0.3 MM. THE ROBOT HAS A MASS OF 1540 KG AND IS EQUIPPED WITH A FANUC R-30IA CONTROLLER, COLOR TEACH PENDANT, AND CONNECTION CABLES. AXIS MOTION SPEEDS ARE 90°/S FOR J1, 85°/S FOR J2, 95°/S FOR J3, 120°/S FOR J4 AND J5, AND 190°/S FOR J6. THE MOTION RANGE FOR THE AXES IS J1 ±360°, J2 ±185°, J3 ±365°, J4 ±720°, J5 ±250°, AND J6 ±720°. THE SYSTEM INCLUDES EE, ARP1, AND ARM1 CONNECTIONS TO SUPPORT VARIOUS INDUSTRIAL APPLICATIONS.
