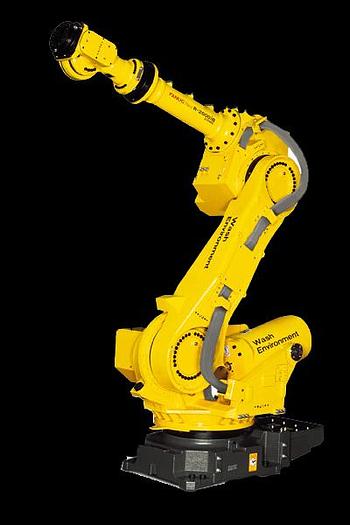

2014 FANUC R2000IB/200R ROBOT, 200KG PAYLOAD, 3095MM REACH, R30IA CONTROLLER, 1540KG MASS

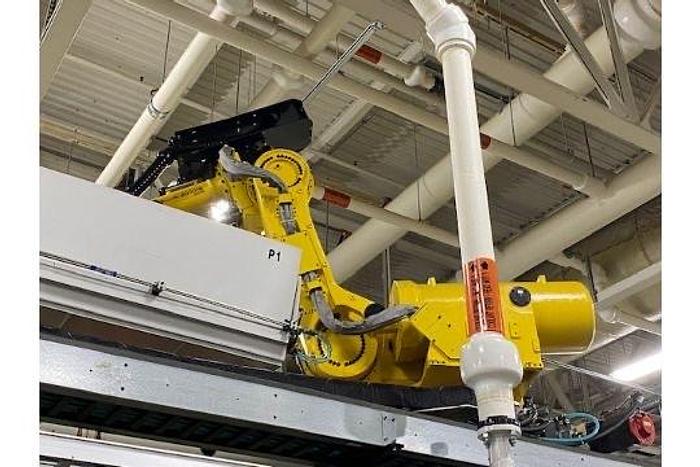

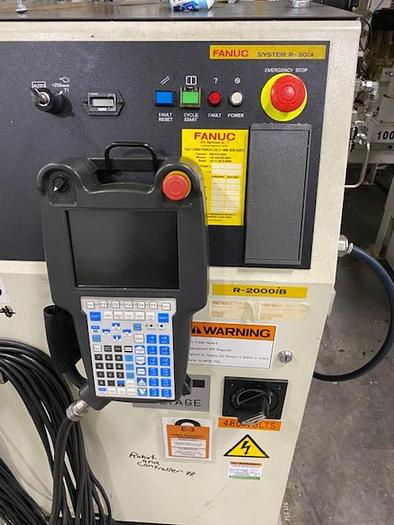

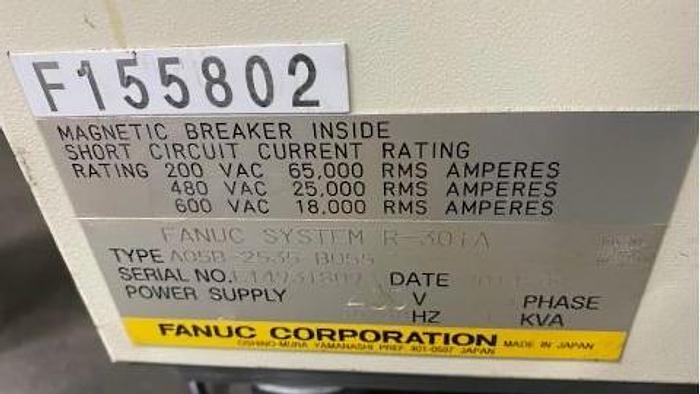

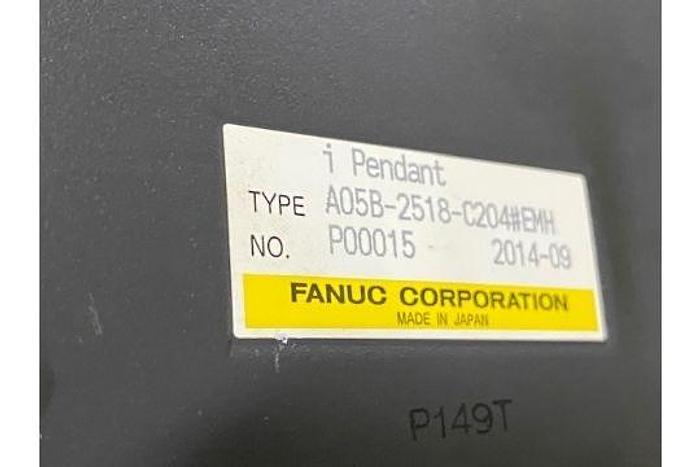

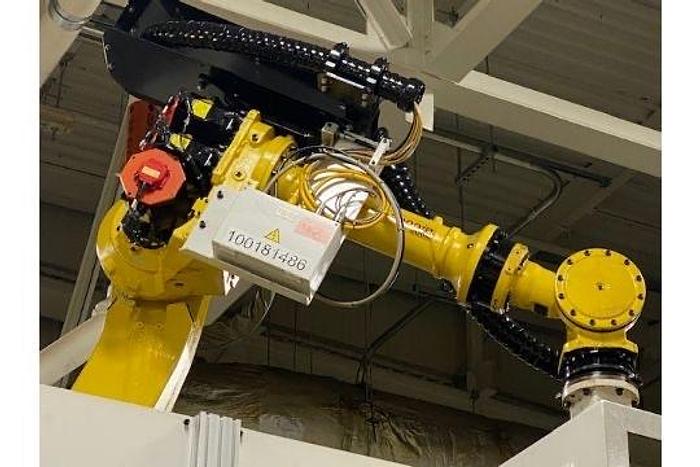

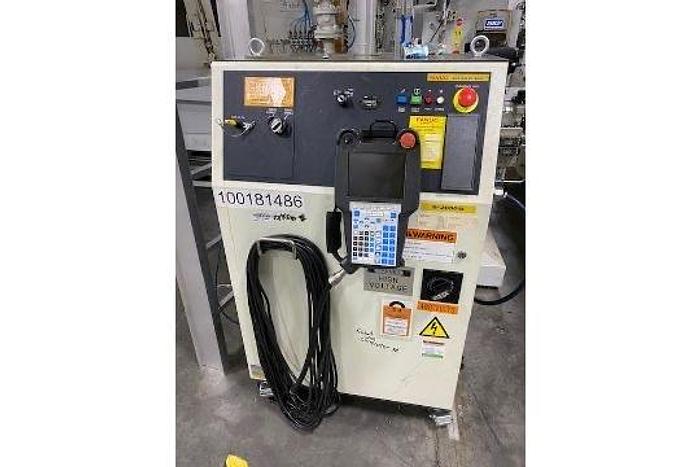

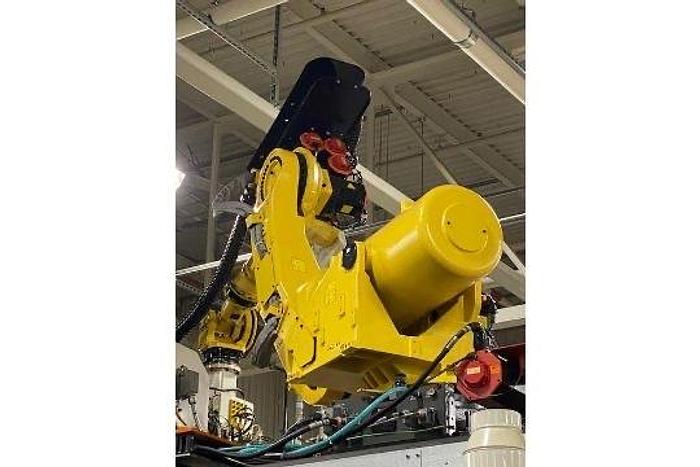

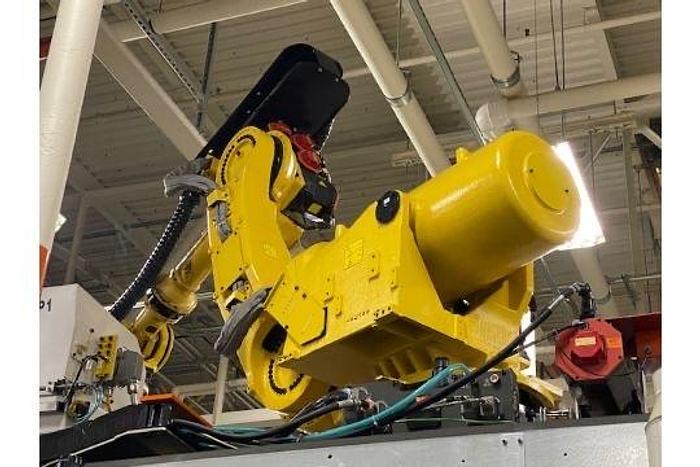

THE 2014 FANUC R2000IB/200R IS A RACK-MOUNTED, SIX-AXIS ARTICULATED INDUSTRIAL ROBOT DESIGNED FOR A WIDE RANGE OF APPLICATIONS, INCLUDING SPOT WELDING, MATERIAL HANDLING, MACHINE TENDING, PICK AND PLACE, INJECTION MOLDING, PALLETIZING, FIBERGLASS CUTTING, AND FOUNDRY OPERATIONS. IT FEATURES A 200 KG PAYLOAD CAPACITY, A REACH OF 3095 MM, AND A REPEATABILITY OF ± 0.3 MM. THE ROBOT HAS A MASS OF 1540 KG. MOTION SPEEDS FOR THE AXES ARE 90°/S FOR J1, 85°/S FOR J2, 95°/S FOR J3, 120°/S FOR J4 AND J5, AND 190°/S FOR J6. THE MOTION RANGE FOR THE AXES IS J1 360°, J2 185°, J3 365°, J4 720°, J5 250°, AND J6 720°. THIS SYSTEM IS EQUIPPED WITH A FANUC R30IA CONTROLLER, ROBOT CONNECTION CABLES, A COLOR TEACH PENDANT, EE CONNECTIONS, AND ARP1 AND ARM1 CONNECTIONS.
