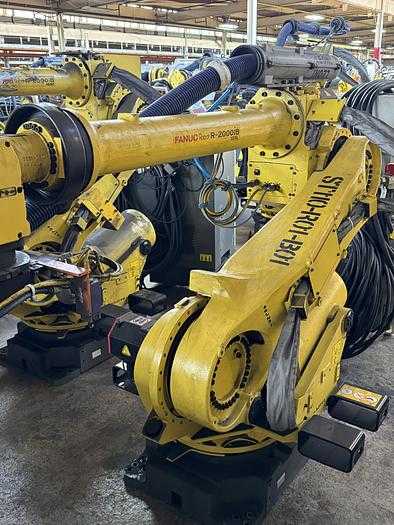

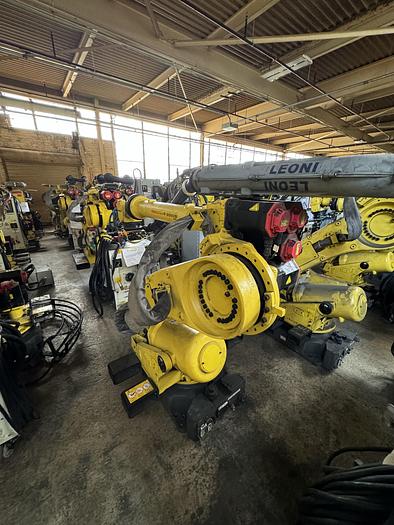

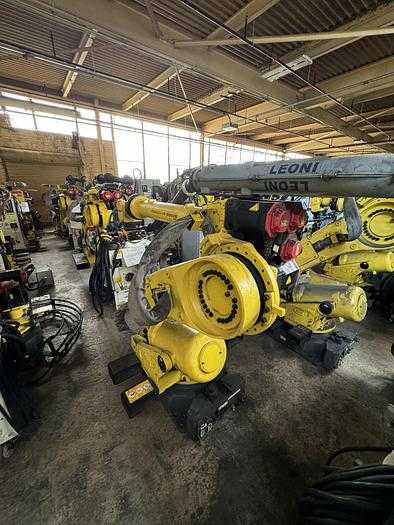

2015 FANUC R-2000IB/125L ARTICULATED ROBOT, 125KG PAYLOAD, 3005MM REACH, R-30IB CONTROLLER

THE 2015 FANUC R-2000IB/125L IS A SIX-AXIS ARTICULATED ROBOT DESIGNED FOR HIGH-PERFORMANCE APPLICATIONS INCLUDING MATERIAL HANDLING, PLASMA CUTTING, MACHINE LOADING, SPOT WELDING, AND FOUNDRY OPERATIONS. IT FEATURES A PAYLOAD CAPACITY OF 125 KG, A HORIZONTAL REACH OF 3005 MM, AND A REPEATABILITY OF ±0.2 MM. THE ROBOT HAS A MASS OF 1190 KG AND IS DESIGNED FOR FLOOR MOUNTING. THIS LONG-REACH MODEL IS EQUIPPED WITH A FANUC R-30IB CONTROLLER, COLOR TEACH PENDANT, AND CONNECTION CABLES. AXIS MOTION SPEEDS ARE 110°/S FOR J1, J2, AND J3, 170°/S FOR J4 AND J5, AND 260°/S FOR J6. THE MOTION RANGE FOR THE AXES IS J1 ±180°, J2 +75°/-60°, J3 +230°/-132°, J4 ±360°, J5 ±125°, AND J6 ±360°. THE SYSTEM IS ENGINEERED FOR FAST CYCLE TIMES, HIGH THROUGHPUT, AND A LARGE WORK ENVELOPE, PROVIDING VERSATILE PROCESS SOLUTIONS FOR INTEGRATED AUTOMATION NEEDS.
