2017 ABB IRB 120 CNC Robot, 3 kg Payload, 580 mm Reach, IRC5 Controller, 25 kg Mass

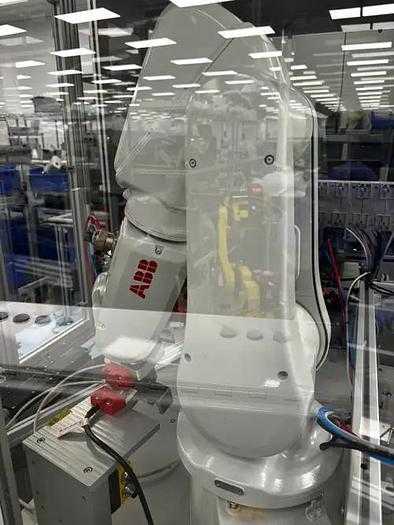

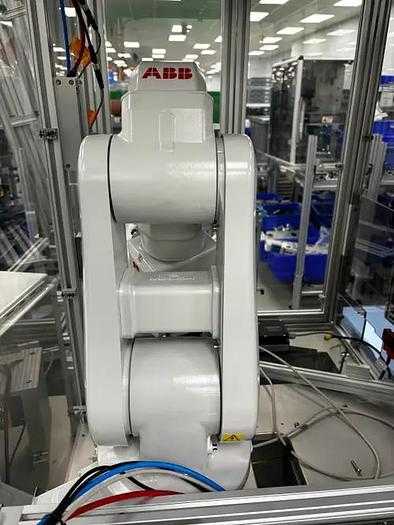

The 2017 ABB IRB 120 is a six-axis articulated CNC robot designed for a wide range of applications, including assembly, cleanroom operations, material handling, order picking, packaging, palletizing, part transfer, and pick and place. It features a 3 kg payload capacity, a horizontal reach of 580 mm, and a repeatability of ± 0.01 mm. The robot has a mass of 25 kg and supports mounting at any angle. The unit is equipped with an IRC5 controller, connection cables, and a teach pendant. Axis motion speeds are 250°/s for axes 1, 2, and 3, 320°/s for axes 4 and 5, and 420°/s for axis 6. The motion range for the axes is ±165° for axis 1, +110° to -110° for axis 2, +70° to -110° for axis 3, ±160° for axis 4, ±120° for axis 5, and ±400° for axis 6.
