2019 KAWASAKI RS010L INDUSTRIAL ROBOT, 10KG PAYLOAD, 1925MM REACH, IP67, 13,100MM/S SPEED

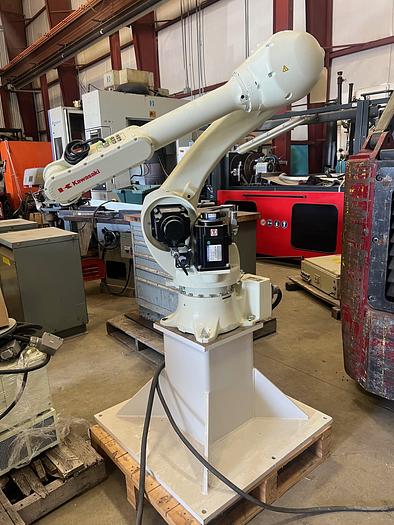

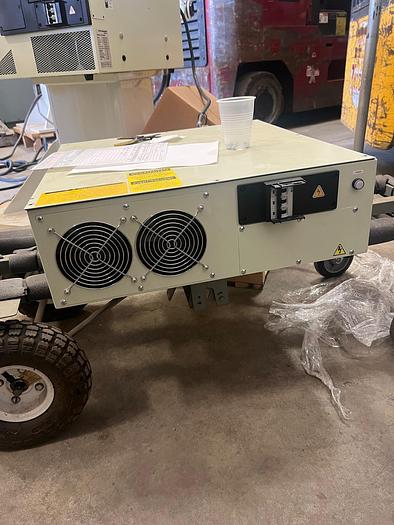

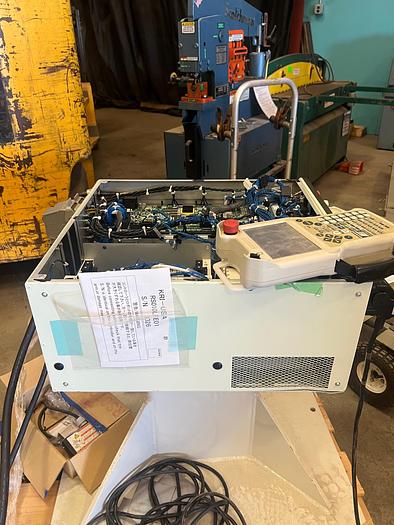

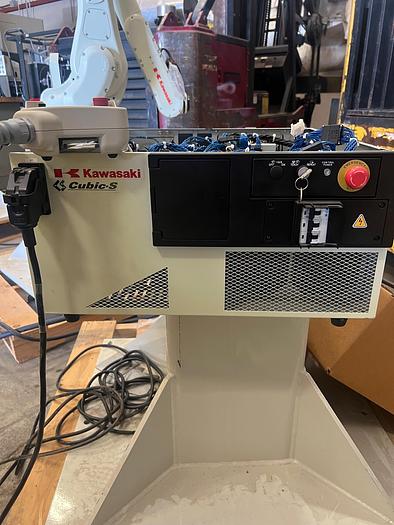

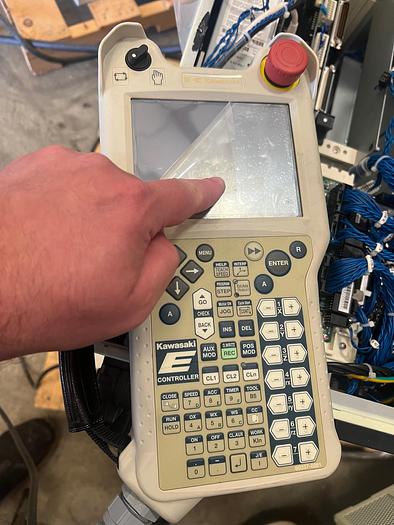

THE 2019 KAWASAKI RS010L IS A HIGH-SPEED, SIX-AXIS INDUSTRIAL ROBOT FROM THE R SERIES, DESIGNED FOR VERSATILE APPLICATIONS INCLUDING MIG/ARC WELDING, MATERIAL HANDLING, WATER JET CUTTING, AND MACHINE TENDING. IT FEATURES A 10 KG PAYLOAD CAPACITY, A MAXIMUM REACH OF 1925 MM, AND A REPEATABILITY OF ±0.05 MM. THE ROBOT ARM WEIGHS 230 KG AND SUPPORTS FLOOR OR CEILING MOUNTING. IT IS EQUIPPED WITH A KAWASAKI E01 CONTROLLER, COLOR TEACH PENDANT, CONNECTION CABLES, TRANSFORMER, AND RISER. TECHNICAL MOTION RANGES INCLUDE J1 ±180°, J2 +155° TO -105°, J3 +150° TO -163°, J4 ±270°, J5 ±145°, AND J6 ±360°. MAXIMUM AXIS SPEEDS ARE 190°/S (J1), 205°/S (J2), 210°/S (J3), 400°/S (J4), 360°/S (J5), AND 610°/S (J6), WITH A TOTAL MAXIMUM LINEAR SPEED OF 13,100 MM/S. THE UNIT FEATURES INTERNAL PNEUMATIC LINES AND WIRING, WITH AN ENVIRONMENTAL PROTECTION RATING OF IP67 FOR THE WRIST AND IP65 FOR THE BASE AXES. THE R SERIES DESIGN UTILIZES HIGH-OUTPUT MOTORS AND A RIGID ARM CONSTRUCTION TO PROVIDE HIGH TORQUE RATINGS AND INDUSTRY-LEADING ACCELERATION.
