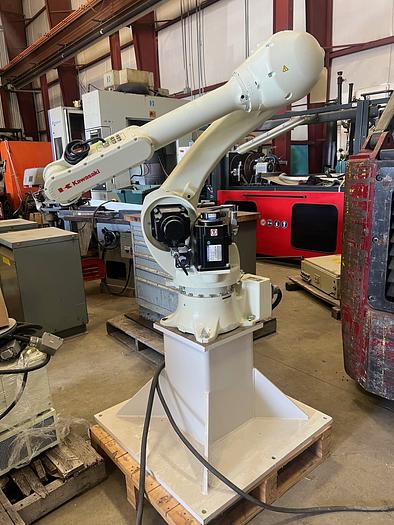

2018 KAWASAKI RS010L ARTICULATED ROBOT, 10KG PAYLOAD, 1925MM REACH, EO1 CONTROLLER

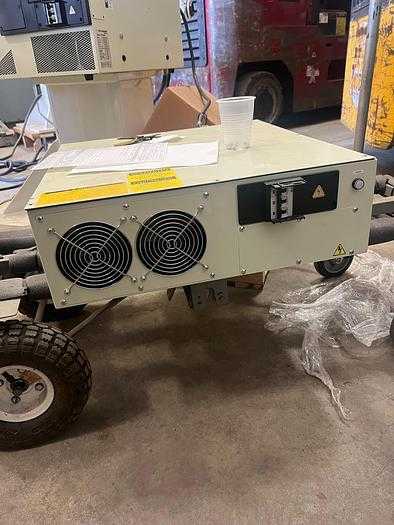

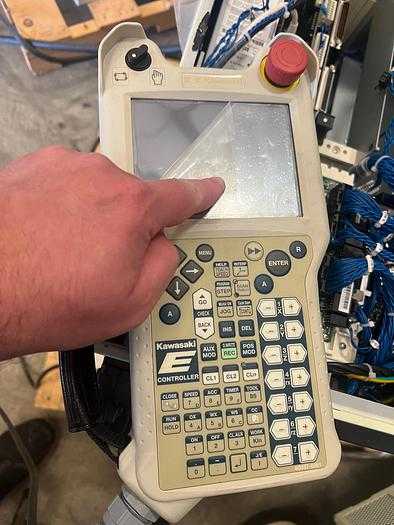

THE 2018 KAWASAKI RS010L IS A HIGH-SPEED, GENERAL-PURPOSE INDUSTRIAL ROBOT FROM THE R SERIES, DESIGNED FOR SMALL TO MEDIUM-DUTY APPLICATIONS INCLUDING MIG/ARC WELDING, MATERIAL HANDLING, WATER JET CUTTING, AND MACHINE TENDING. IT FEATURES A 10 KG PAYLOAD CAPACITY, A MAXIMUM REACH OF 1925 MM, AND A POSITIONAL REPEATABILITY OF ±0.05 MM. THE SIX-AXIS ARTICULATED ARM HAS A MOTION RANGE OF ±180° FOR JT1, +155° TO -105° FOR JT2, +150° TO -163° FOR JT3, ±270° FOR JT4, ±145° FOR JT5, AND ±360° FOR JT6. MAXIMUM MOTION SPEEDS REACH UP TO 610°/S ON THE WRIST AXIS, WITH A MAXIMUM COMPOSITE SPEED OF 13,100 MM/S. THE ROBOT WEIGHS 230 KG AND SUPPORTS FLOOR OR CEILING MOUNTING. IT IS EQUIPPED WITH A KAWASAKI E01 CONTROLLER, COLOR TEACH PENDANT, CONNECTION CABLES, RISER, AND TRANSFORMER. THE UNIT FEATURES INTERNAL PNEUMATIC LINES AND WIRING, WITH A DOUBLE SEAL CONSTRUCTION PROVIDING AN IP67 PROTECTION RATING FOR THE WRIST AND IP65 FOR THE BASE AXES. HIGH-OUTPUT MOTORS AND A RIGID ARM DESIGN ENABLE HIGH TORQUE RATINGS AND OPTIMIZED ACCELERATION BASED ON PAYLOAD AND POSTURE.
