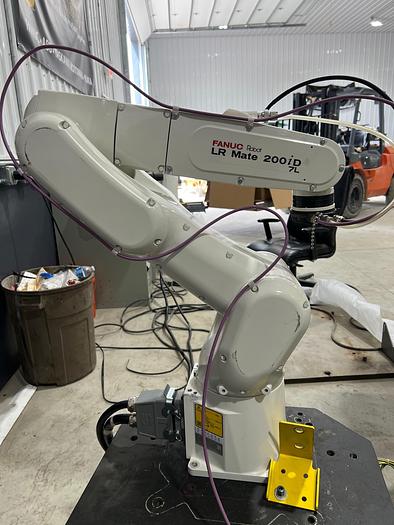

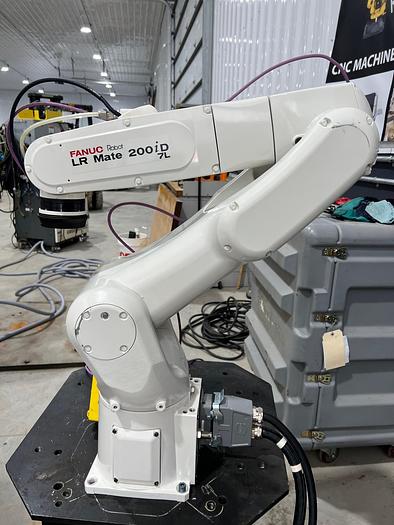

2019 FANUC LR MATE 200ID/7L ROBOT, 7KG PAYLOAD, 911MM REACH, ±0.03MM REPEATABILITY, R30IB CONTROL

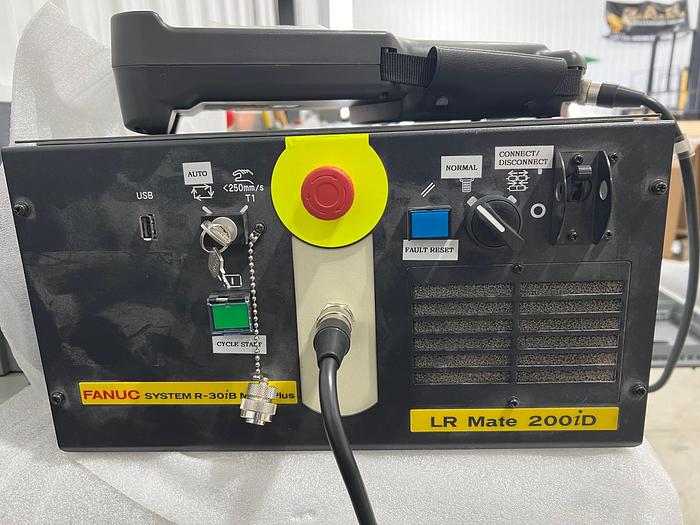

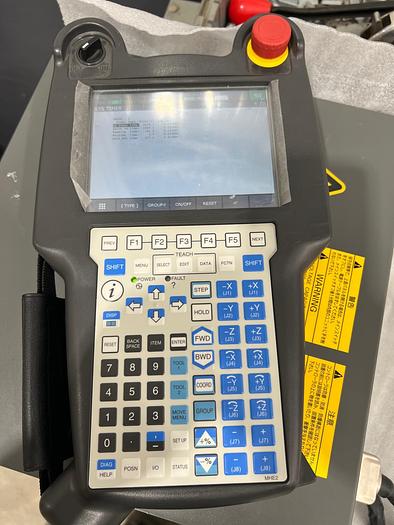

THE 2019 FANUC LR MATE 200ID/7L IS A SIX-AXIS ARTICULATED ROBOT DESIGNED FOR HIGH-SPEED PRECISION APPLICATIONS. IT FEATURES A 7KG PAYLOAD CAPACITY, A HORIZONTAL REACH OF 911MM, AND A REPEATABILITY OF ±0.03MM. THE ROBOT HAS A MASS OF 27KG AND SUPPORTS FLOOR, INVERTED, AND ANGLE MOUNTING CONFIGURATIONS. IT IS EQUIPPED WITH A FANUC R30IB MATE PLUS COMPACT CONTROLLER, CONNECTION CABLES, AND A COLOR I-PENDANT. AXIS MOTION SPEEDS ARE J1 AT 370°/S, J2 AT 310°/S, J3 AT 410°/S, J4 AT 550°/S, J5 AT 545°/S, AND J6 AT 1000°/S. THE MOTION RANGE FOR THE AXES INCLUDES J1 FROM +340° TO -360°, J2 AT ±245°, J3 AT ±420°, J4 AT ±380°, J5 AT ±250°, AND J6 AT ±720°.
