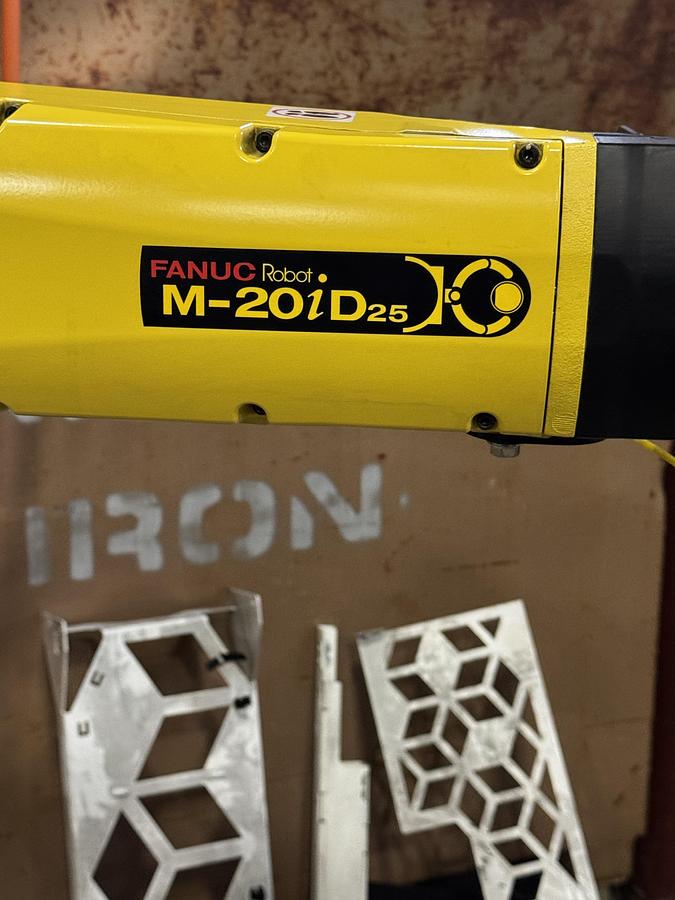

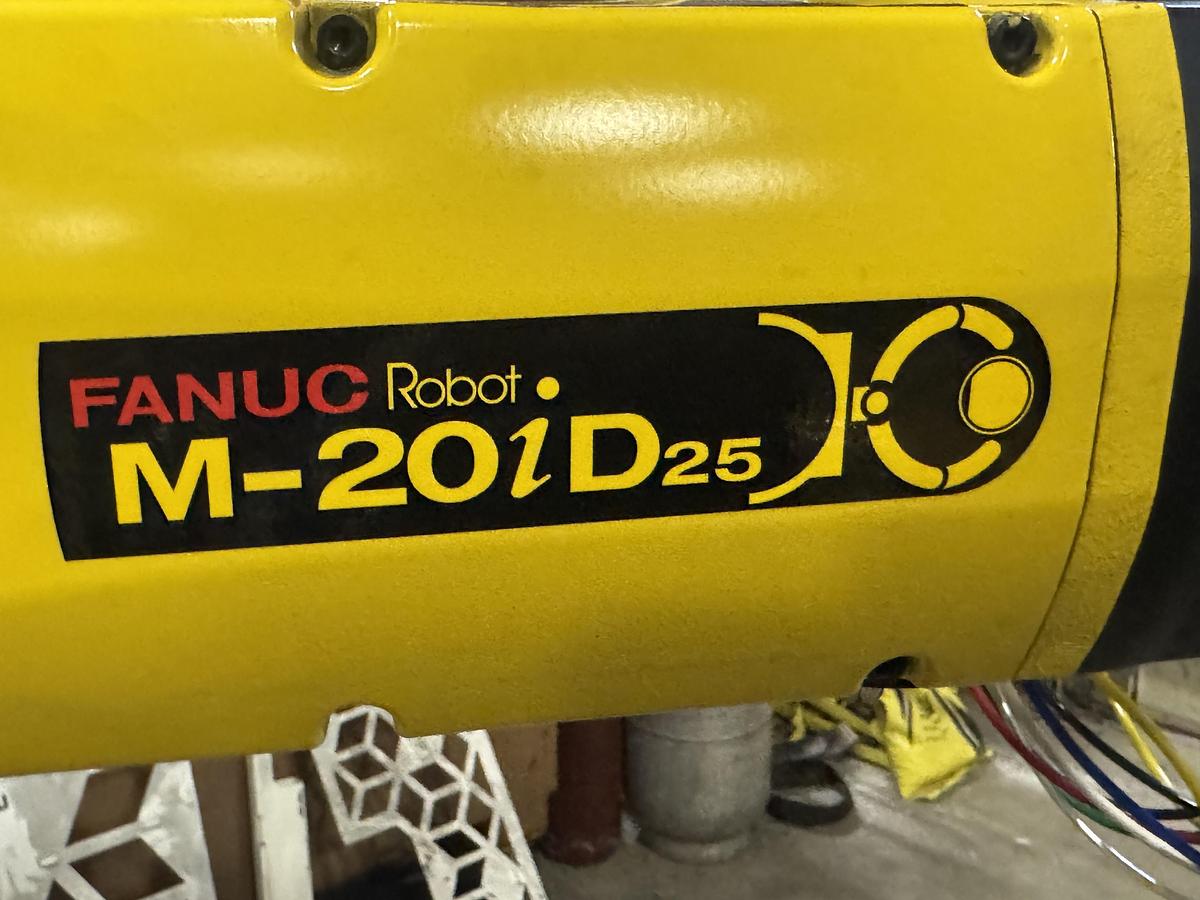

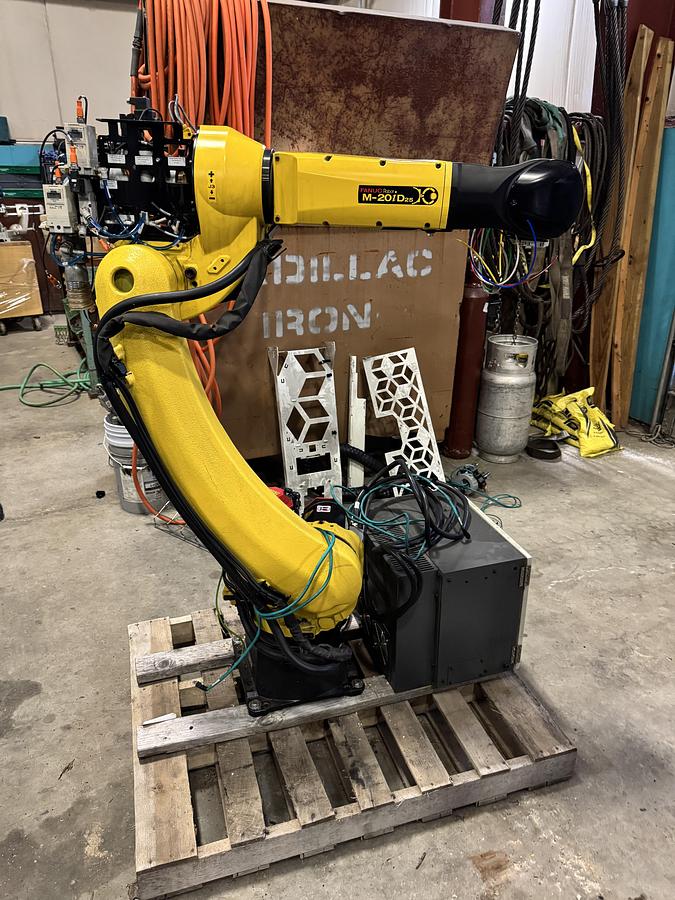

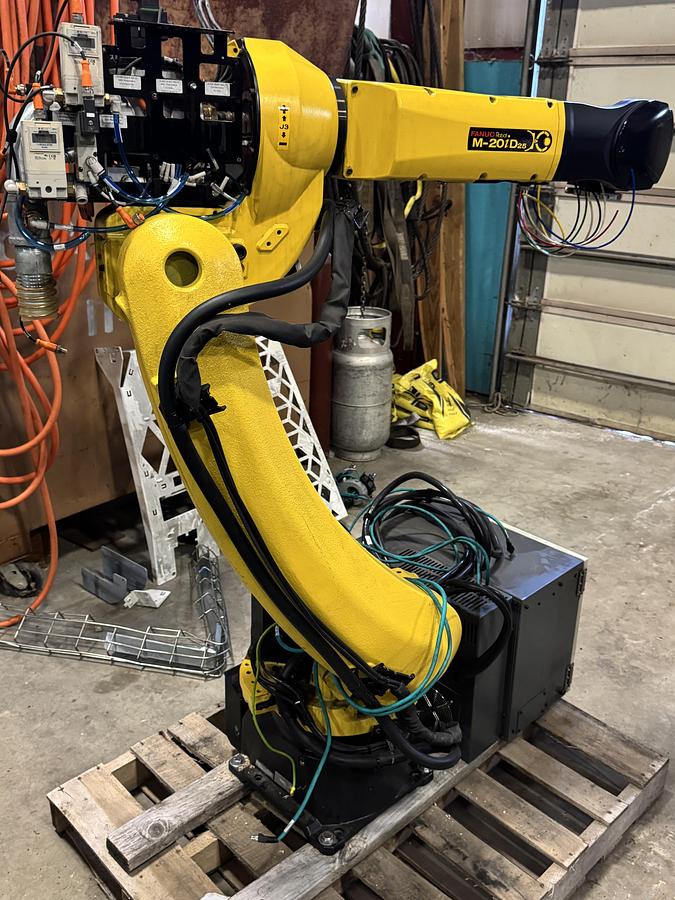

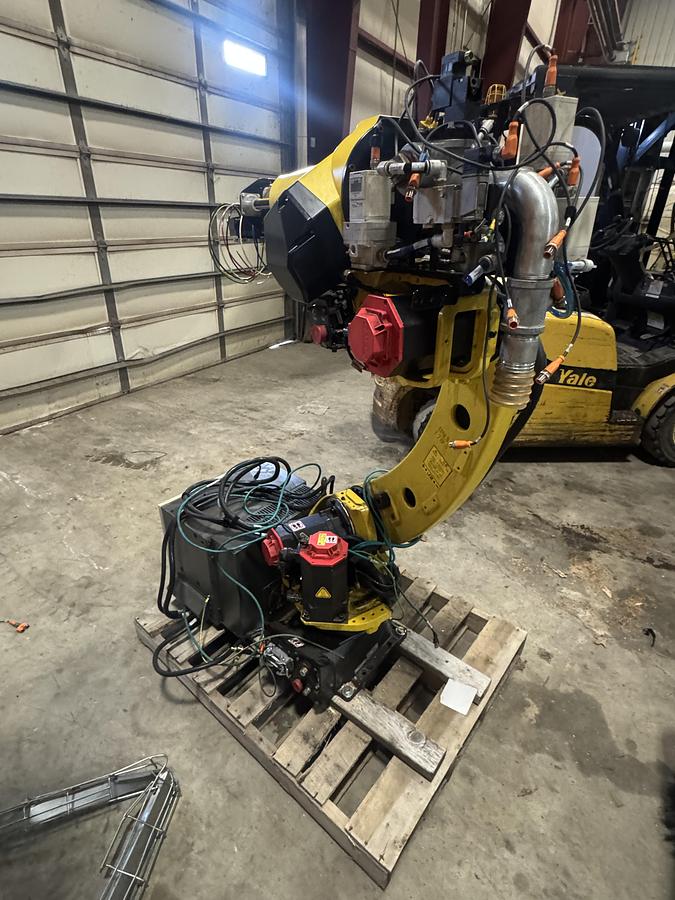

2021 FANUC M-20ID/25 Articulated Robot, 25kg Payload, 1831mm Reach, R-30iB Plus Mate Control

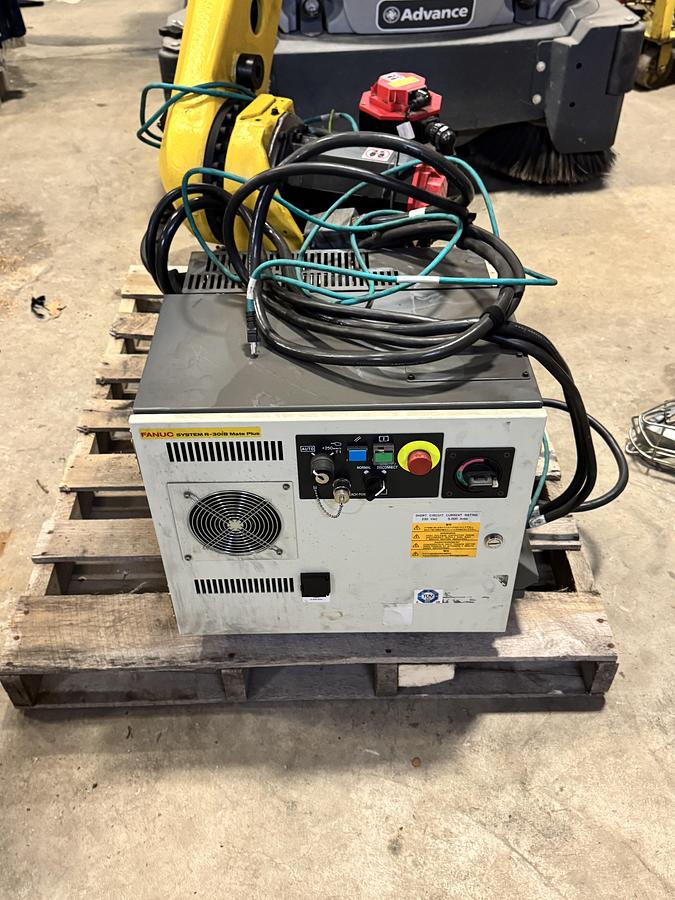

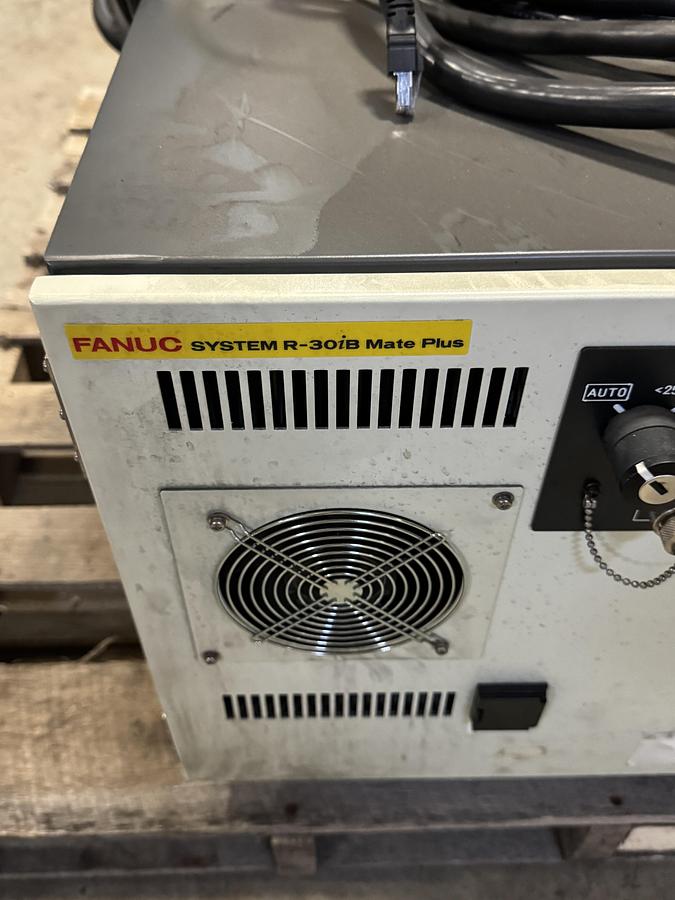

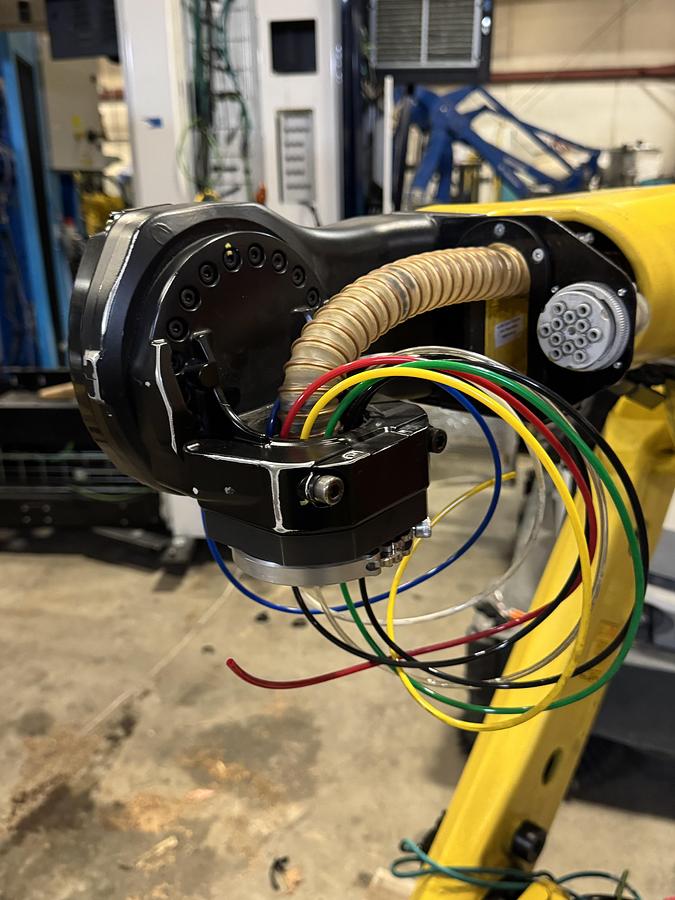

The 2021 FANUC M-20ID/25 is a six-axis articulated robot featuring a 25 kg payload capacity and an 1,831 mm reach. It provides a repeatability of ± 0.02 mm and has a robot mass of 250 kg. Designed for floor, inverted, or angle mounting, the unit is equipped with a FANUC R-30iB Plus Mate Control, a teach pendant, and connection cables. Axis motion speeds are J1 and J2 at 210°/s, J3 at 265°/s, J4 and J5 at 420°/s, and J6 at 700°/s. The motion range for the axes is J1 ±340°, J2 ±260°, J3 ±458°, J4 ±400°, J5 ±360°, and J6 ±900°. The robot features a compact arm and wrist with internal cable routing to prevent snagging. Technical applications include assembly, load/transfer, dispensing, material removal, material handling, and palletizing.
