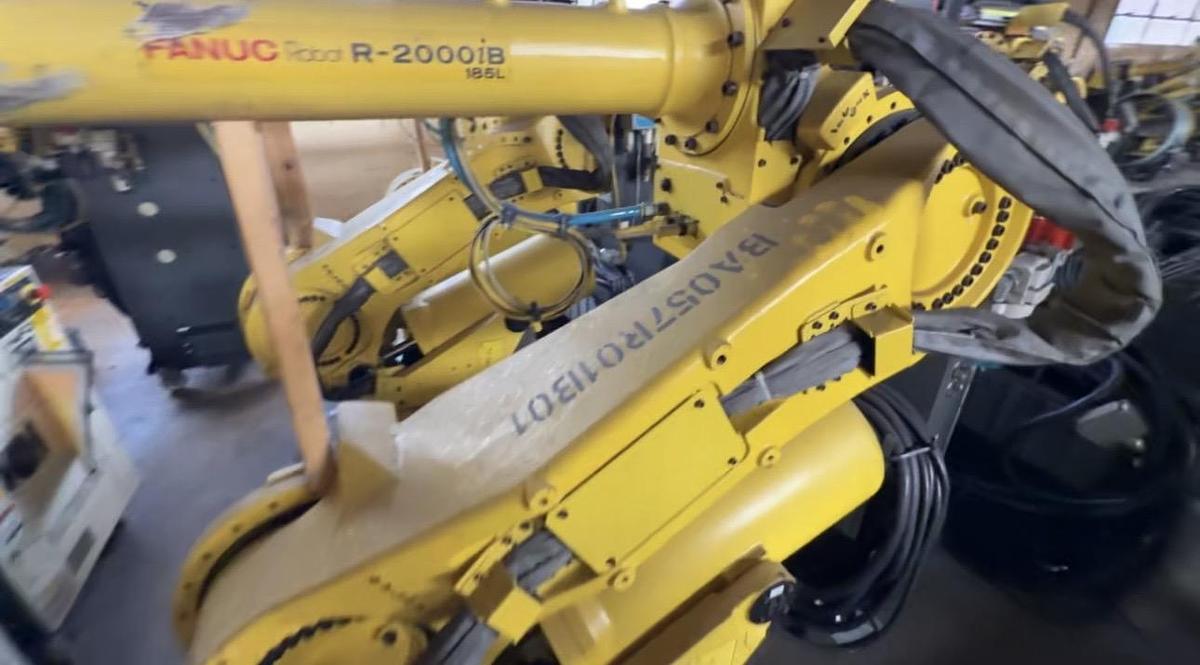

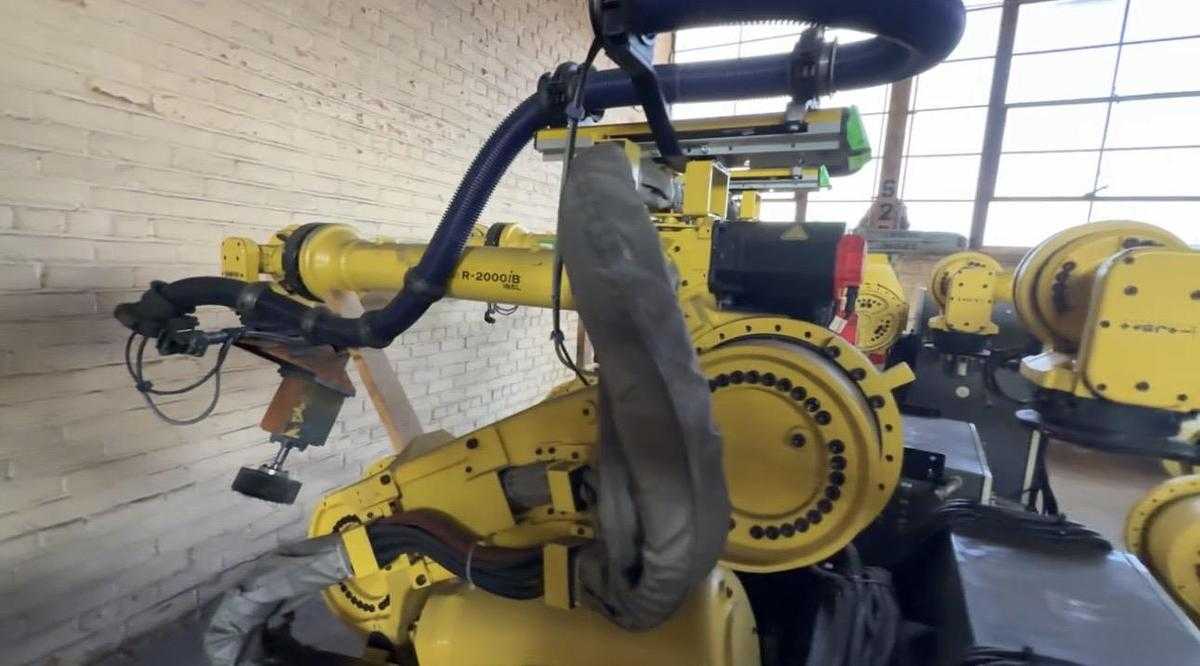

2019 FANUC R-2000IB/185L ARTICULATED ROBOT, 185KG PAYLOAD, 3060MM REACH, R-30IB CONTROLLER

THE 2019 FANUC R-2000IB/185L IS A SIX-AXIS ARTICULATED ROBOT DESIGNED FOR HIGH-PAYLOAD APPLICATIONS SUCH AS MACHINE LOADING, MATERIAL HANDLING, MACHINE TENDING, SPOT WELDING, ROUTERING, AND ADHESIVE APPLICATIONS. THIS HEAVY-DUTY FLOOR-MOUNTED ROBOT FEATURES A 185 KG PAYLOAD CAPACITY, AN EXTENDED REACH OF 3060 MM, AND A REPEATABILITY OF ± 0.3 MM. THE UNIT HAS A TOTAL MASS OF 1290 KG. AXIS MOTION SPEEDS ARE 95°/S FOR J1, 85°/S FOR J2, 88°/S FOR J3, 120°/S FOR J4 AND J5, AND 190°/S FOR J6. THE MOTION RANGE FOR THE AXES IS J1 ±360°, J2 ±136°, J3 ±346°, J4 ±720°, J5 ±250°, AND J6 ±720°. THE SYSTEM IS EQUIPPED WITH A FANUC R-30IB CONTROLLER, 20-METER ROBOT CONNECTION CABLES, AND A FANUC COLOR TEACH PENDANT. ITS DESIGN PROVIDES A LARGE WORK ENVELOPE AND THE FLEXIBILITY REQUIRED FOR VARIOUS INDUSTRIAL AUTOMATION NEEDS.
