2019 Kawasaki RS007L Articulated Robot, 7kg Payload, 930mm Reach, F60F Controller

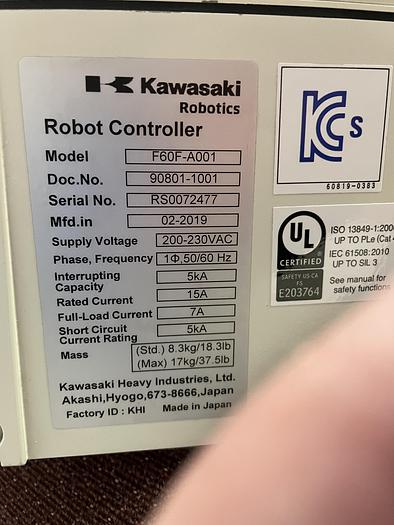

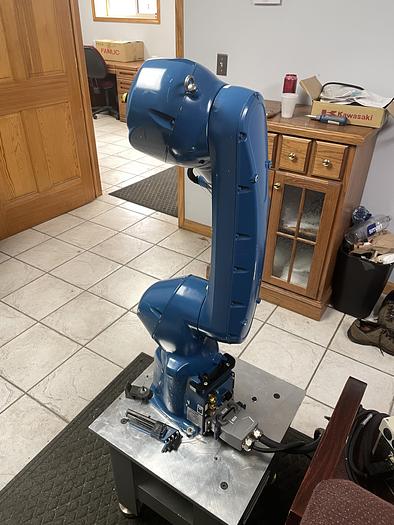

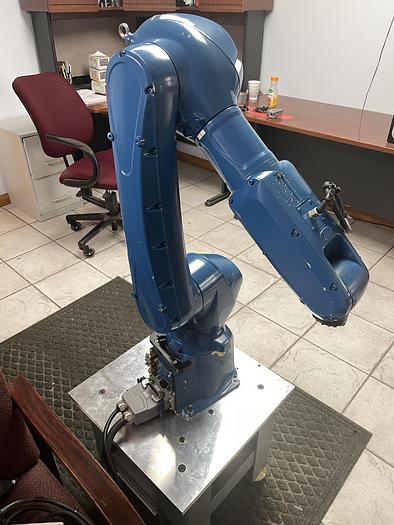

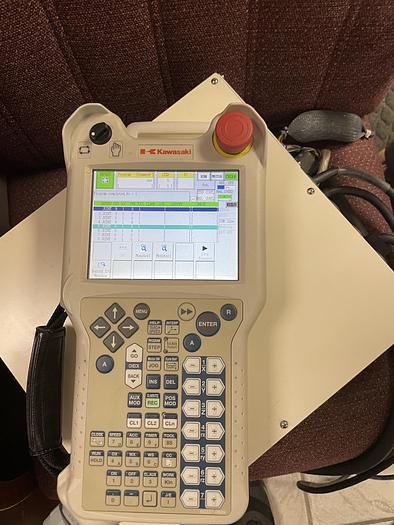

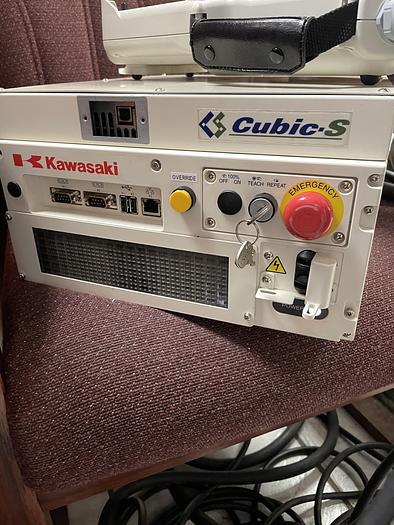

The 2019 Kawasaki RS007L is a six-axis articulated robot designed for applications such as machine loading, machine tending, material handling, and pick and place operations. It features a 7 kg payload capacity, a horizontal reach of 930 mm, and a repeatability of ±0.03 mm. The robot has a mass of 36 kg and supports floor, wall, and ceiling mounting configurations. Motion speeds for the axes are J1 370°/s, J2 310°/s, J3 410°/s, J4 550°/s, J5 550°/s, and J6 1000°/s. The motion range for the axes is J1 ±180°, J2 ±135°, J3 ±157°, J4 ±200°, J5 ±125°, and J6 ±360°. The system is equipped with a Kawasaki F60F controller with Cubic S, a teach pendant, and connection cables.
