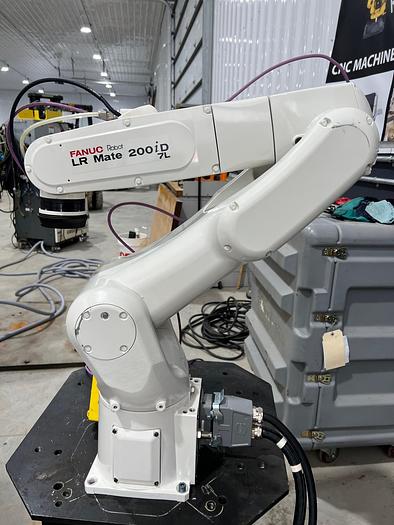

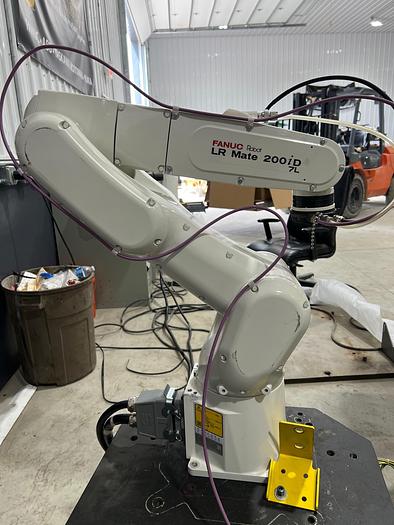

2020 FANUC LR MATE 200ID/7L ROBOT, 7KG PAYLOAD, 911MM REACH, ±0.03MM REPEATABILITY, 27KG MASS

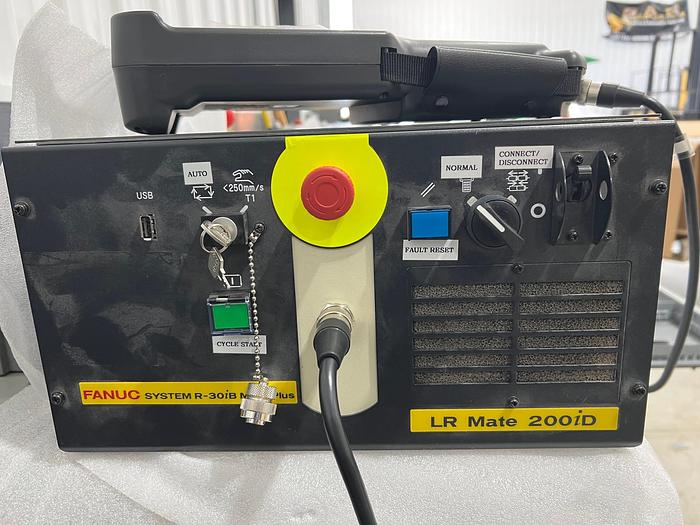

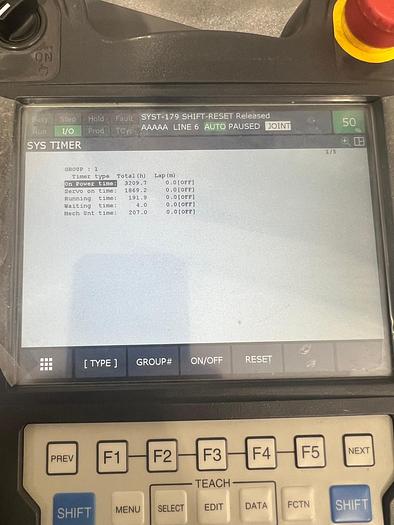

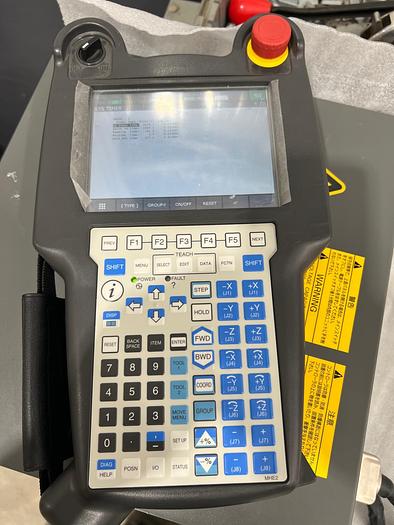

THE 2020 FANUC LR MATE 200ID/7L IS A SIX-AXIS ARTICULATED ROBOT FEATURING A 7KG PAYLOAD CAPACITY AND A LONG-REACH HORIZONTAL REACH OF 911MM. THIS MODEL PROVIDES A REPEATABILITY OF ±0.03MM AND A ROBOT MASS OF 27KG, SUPPORTING FLOOR, INVERTED, AND ANGLE MOUNTING CONFIGURATIONS. TECHNICAL MOTION SPEEDS ARE RATED AT 370°/S FOR J1, 310°/S FOR J2, 410°/S FOR J3, 550°/S FOR J4, 545°/S FOR J5, AND 1000°/S FOR J6. THE MOTION RANGE INCLUDES J1 AT +340° TO -360°, J2 AT ±245°, J3 AT ±420°, J4 AT ±380°, J5 AT ±250°, AND J6 AT ±720°. THE SYSTEM IS EQUIPPED WITH A FANUC R-30IB MATE PLUS COMPACT CONTROLLER, ROBOT CONNECTION CABLES, AND A FANUC COLOR I-PENDANT.
