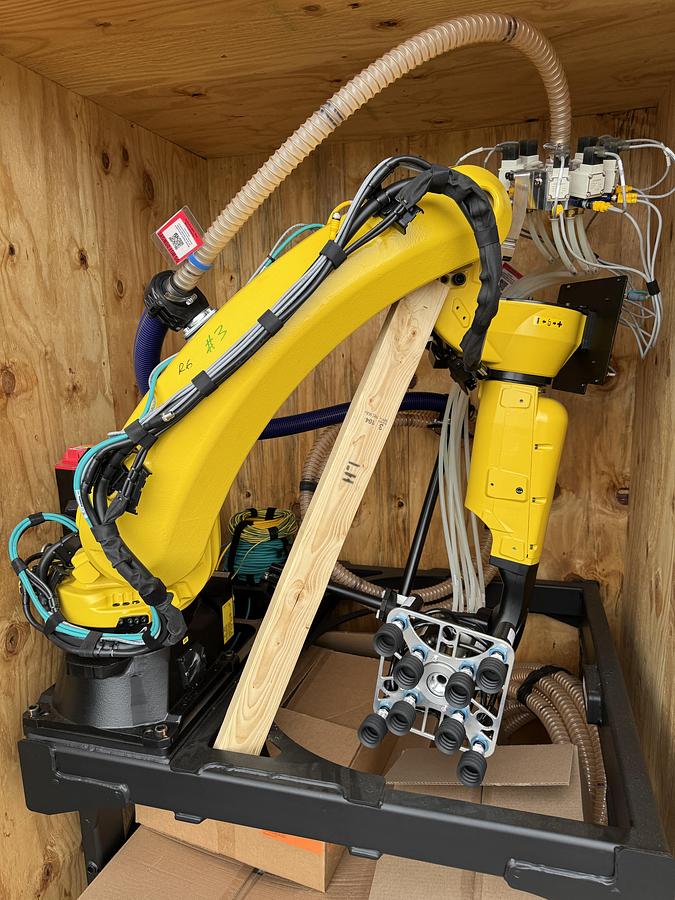

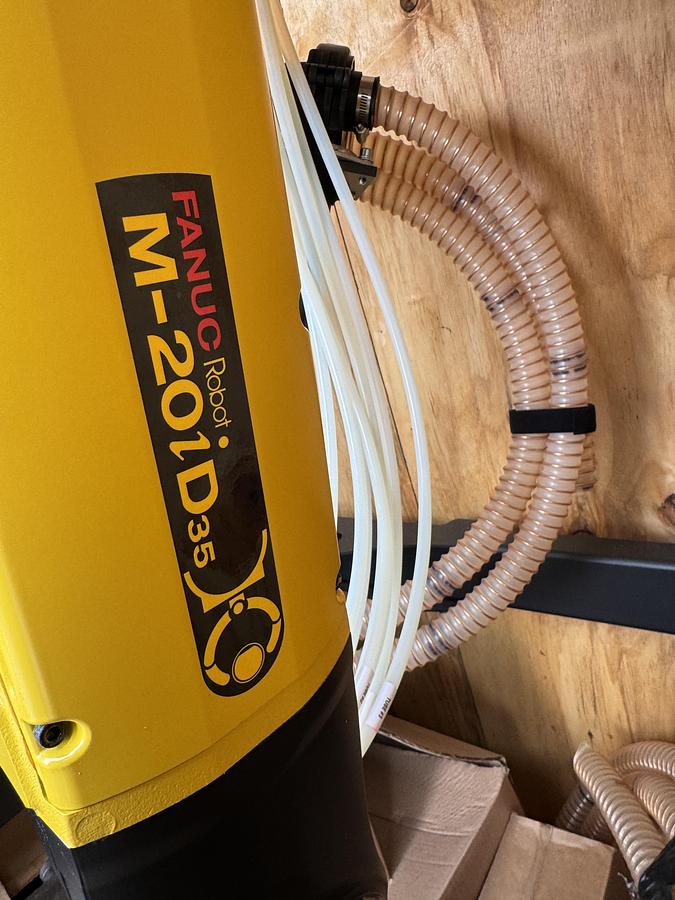

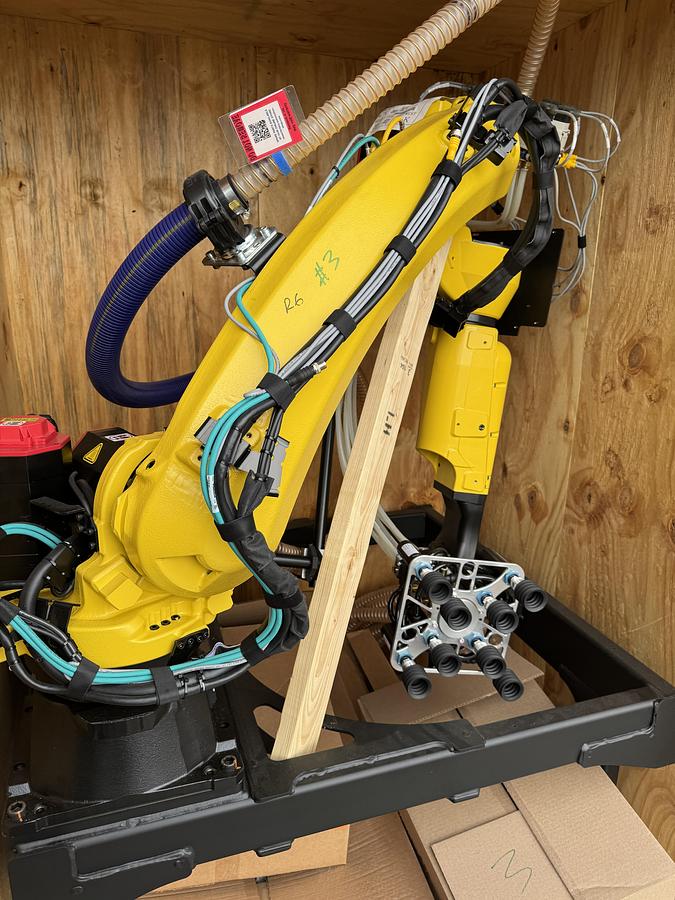

2021 FANUC M-20ID/35 Articulated Robot, 35kg Payload, 1831mm Reach, R-30iB Plus Control

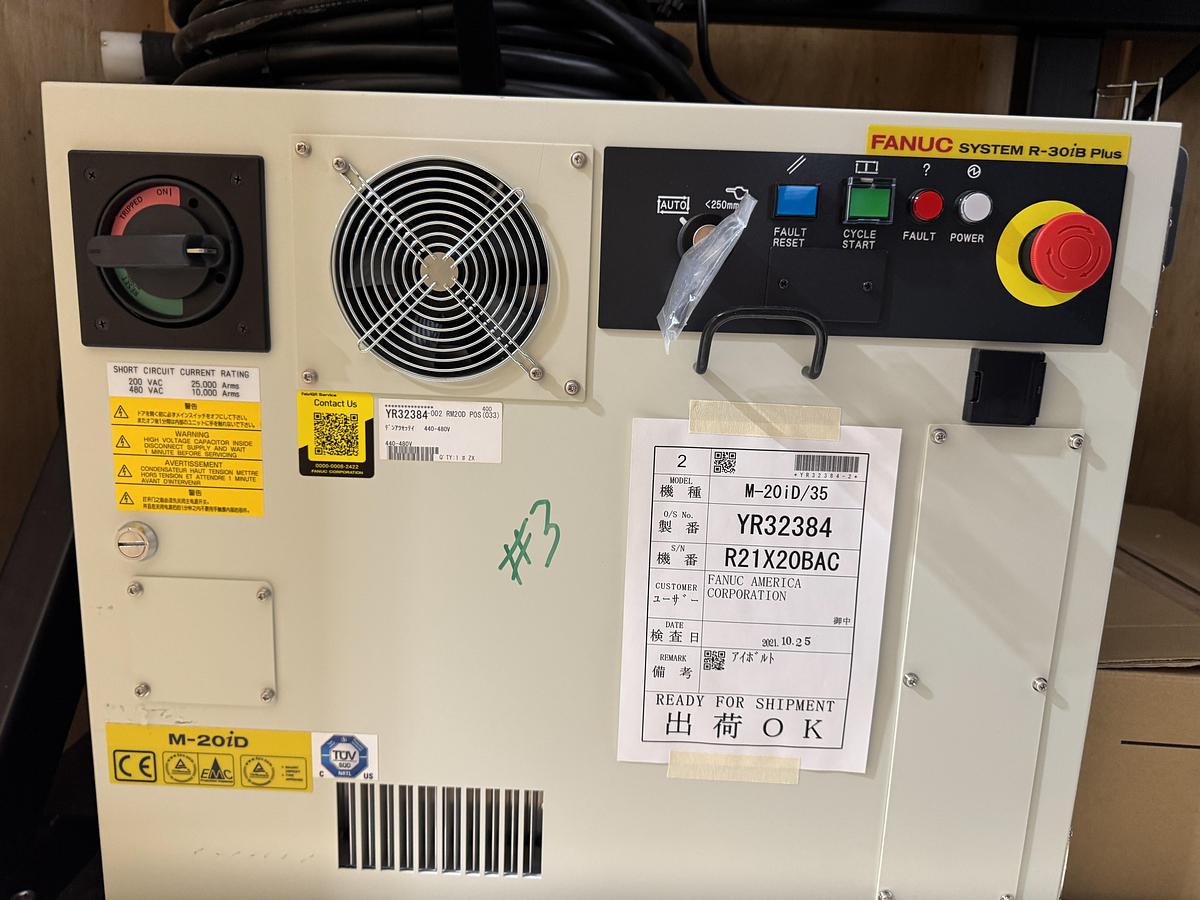

The 2021 FANUC M-20ID/35 is a high-performance six-axis industrial robot designed for handling large parts and materials. It features a 35 kg payload capacity, an 1831 mm horizontal reach, and a repeatability of ± 0.03 mm. The mechanical unit weighs 250 kg and is engineered for high flexibility in wrist-load applications, making it suitable for pick and place, machine servicing, and material handling operations. Axis motion ranges are J1 at 370° or 340°, J2 at 260°, J3 at 458°, J4 at 400°, J5 at 360°, and J6 at 900°. Maximum axis speeds are 180 °/s for J1 and J2, 200 °/s for J3, 350 °/s for J4 and J5, and 400 °/s for J6. The system is equipped with a FANUC R-30IB PLUS controller, a teach pendant, and necessary connection cables. Its design focuses on best-in-class accuracy and high axis speeds to optimize throughput in automated environments.
