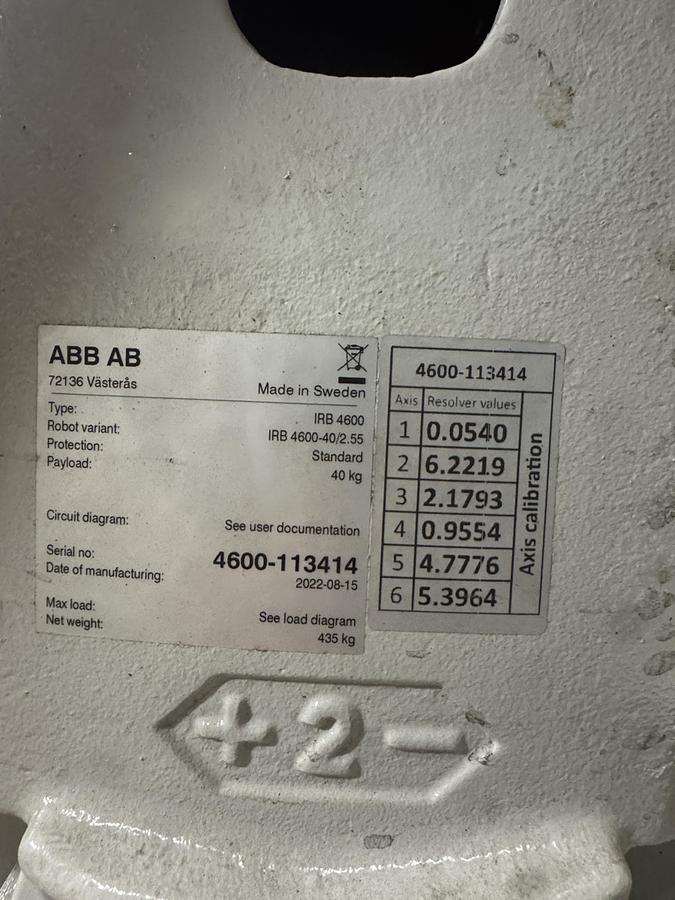

2022 ABB IRB 4600-40/2.55 Articulated Robot, 40kg Payload, 2550mm Reach, IRC5 Controller

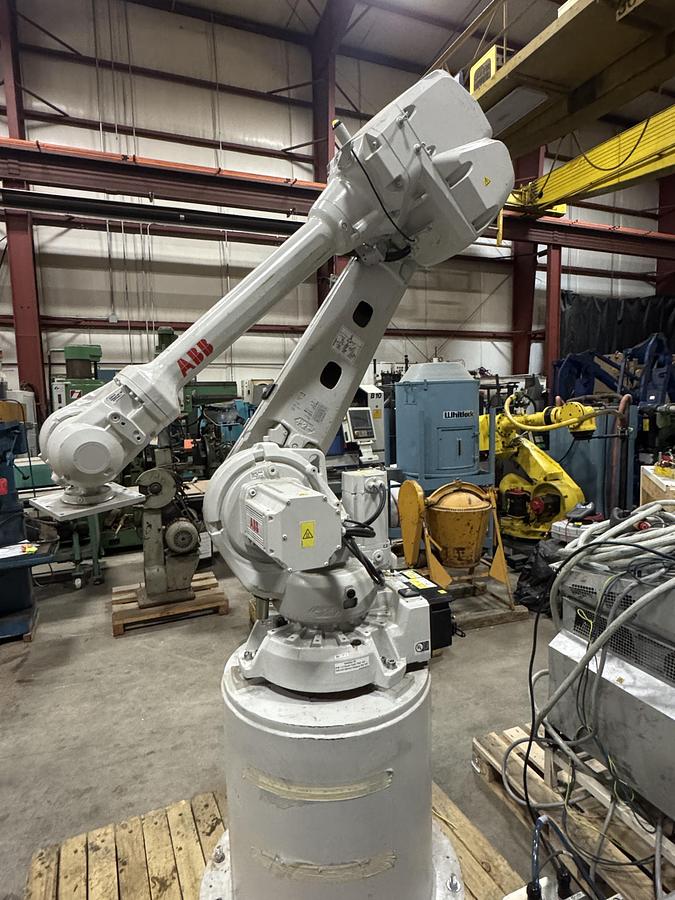

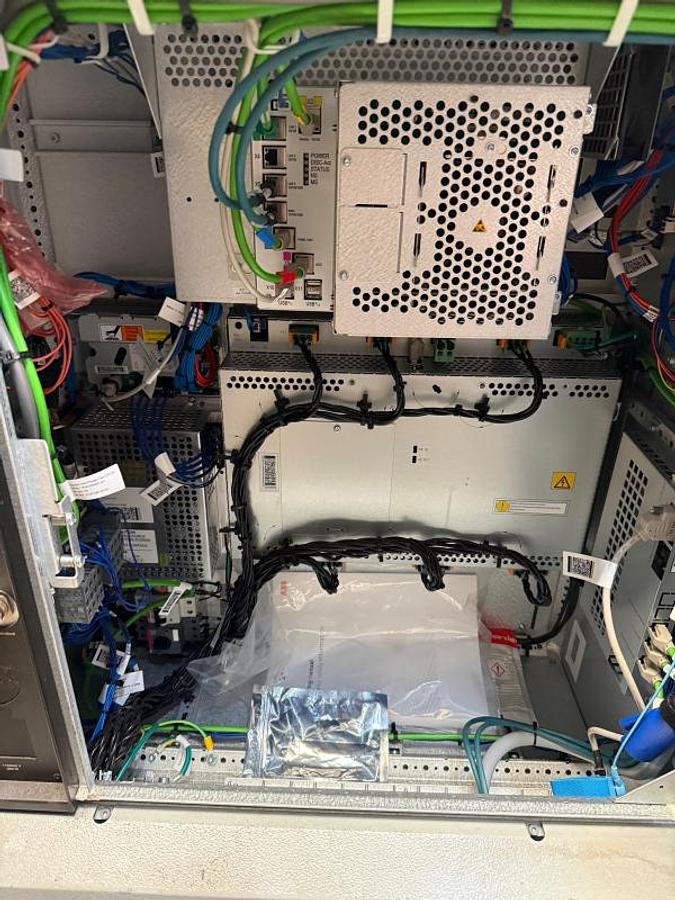

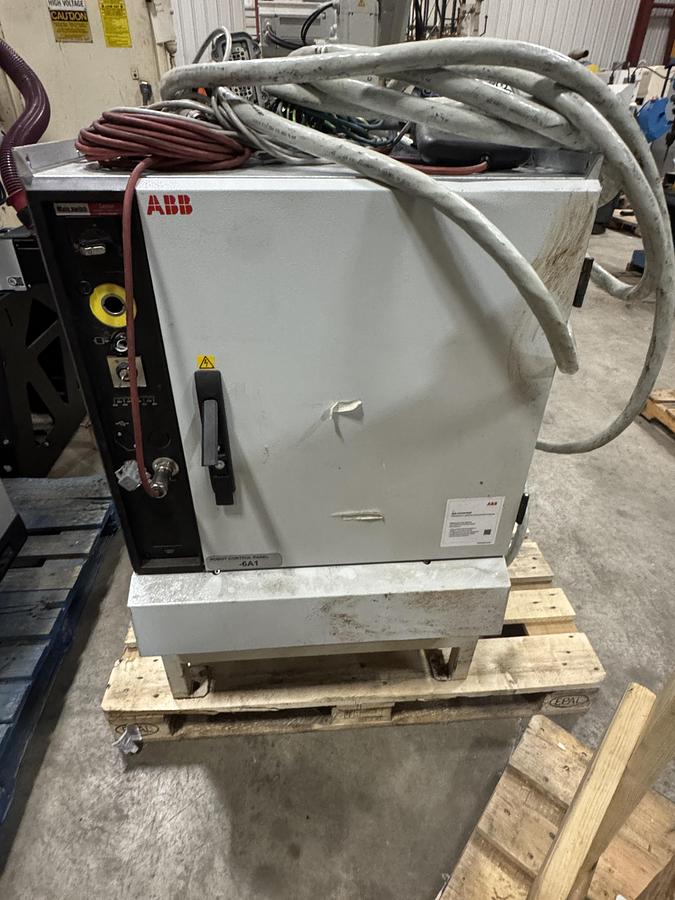

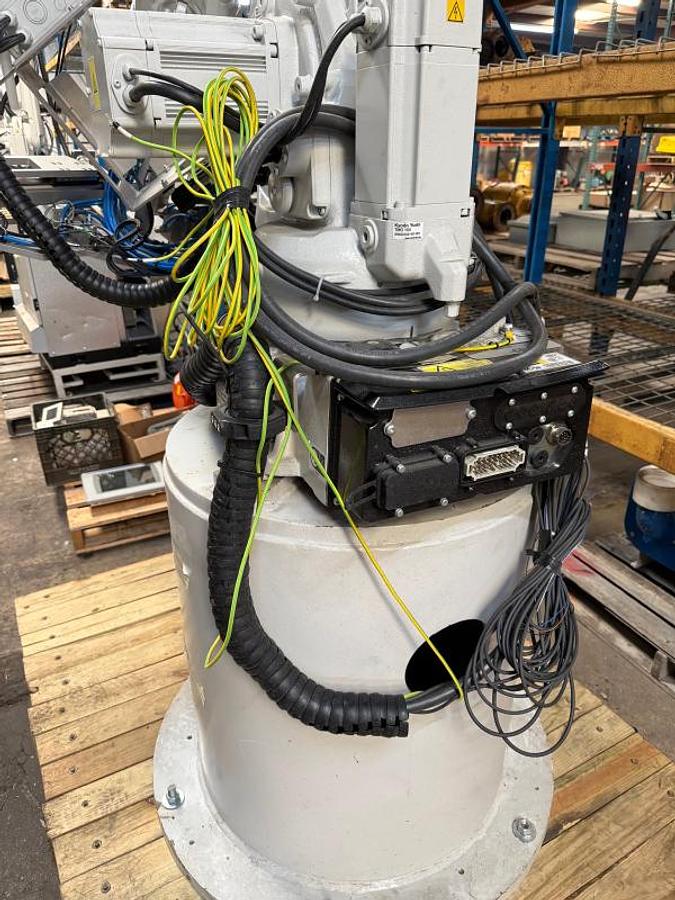

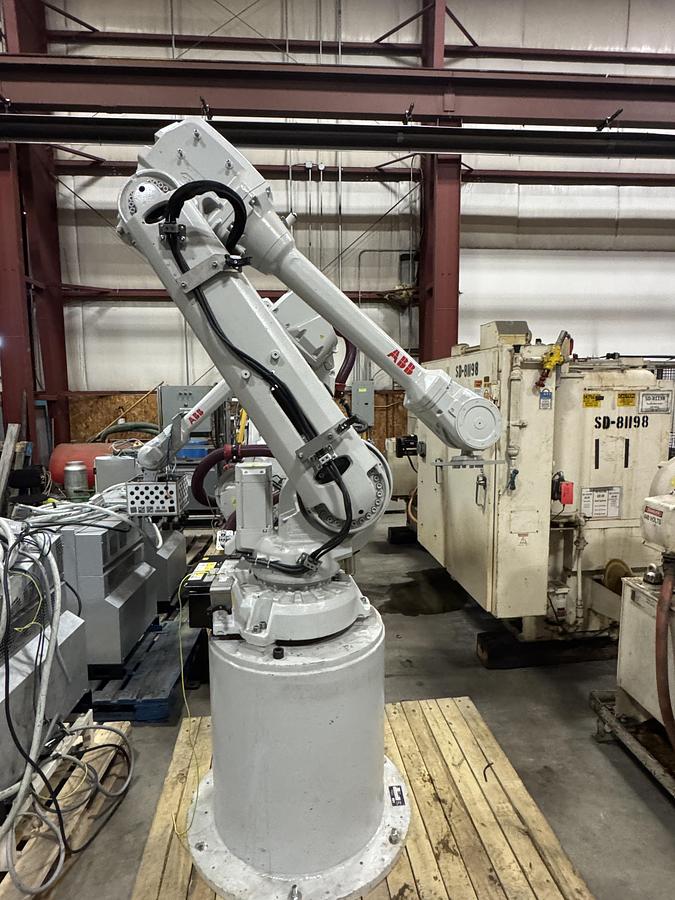

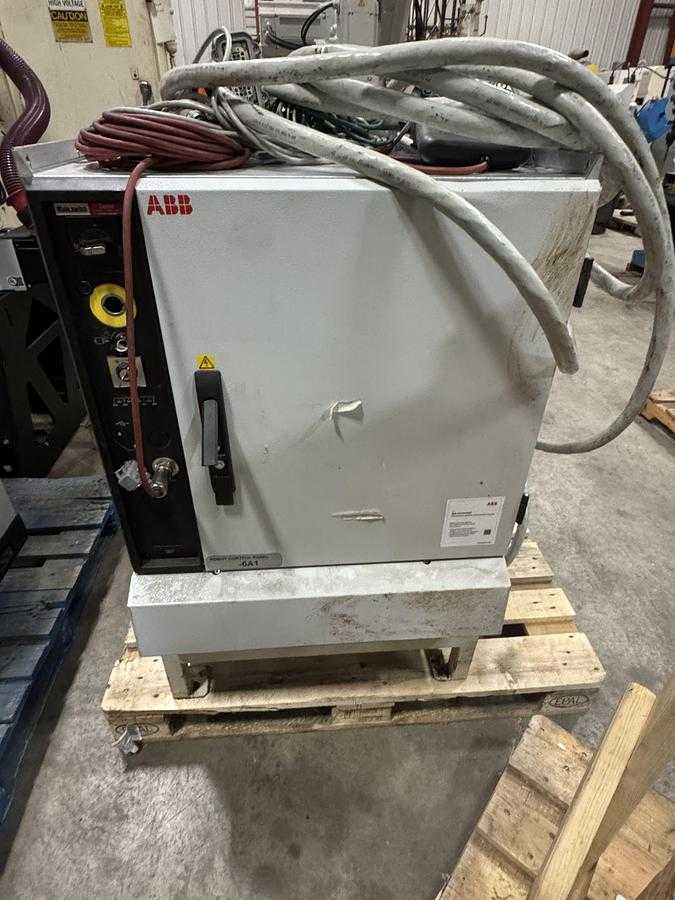

The 2022 ABB IRB 4600-40/2.55 is a six-axis articulated robot designed for versatile applications including arc welding, assembly, cutting, dispensing, machine tending, material handling, packaging, and palletizing. It features a 40 kg payload capacity, a 2550 mm reach, and a repeatability of 0.05 mm. The robot has a mass of 412 kg and supports floor, inverted, and angle mounting. The compact design includes a slim swing base, a fine elbow, and a compact wrist to minimize the manufacturing cell footprint. Axis motion speeds are 175°/s for J1, J2, and J3; 360°/s for J4 and J6; and 250°/s for J5. The motion range for the axes is J1 ±180°, J2 +150° to -90°, J3 +75° to -180°, J4 ±400°, J5 +120° to -125°, and J6 ±400°. The system is rated with IP67 machine protection and is equipped with an ABB IRC5 controller and connection cables.
