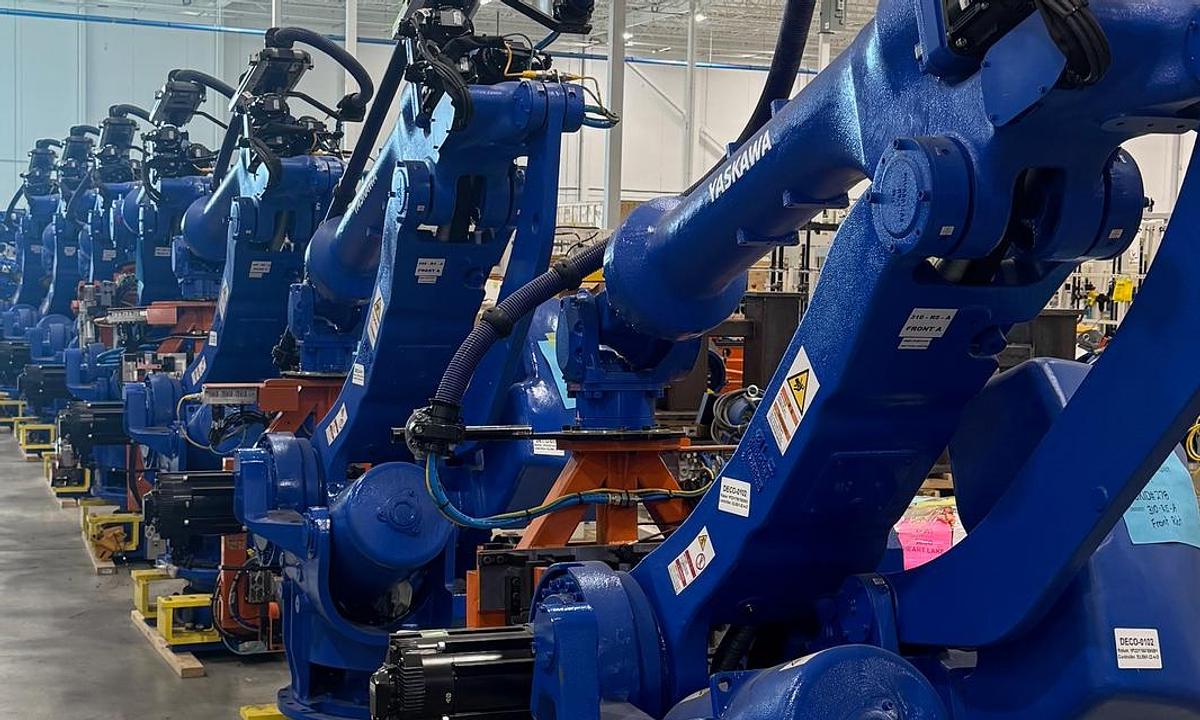

2022 YASKAWA MOTOMAN GP280L INDUSTRIAL ROBOT, 280KG PAYLOAD, 3114MM REACH, YRC1000 CONTROLLER

THE 2022 YASKAWA MOTOMAN GP280L IS A SIX-AXIS INDUSTRIAL ROBOT DESIGNED FOR HIGH-PAYLOAD HANDLING AND EXTENDED-REACH APPLICATIONS. IT FEATURES A MAXIMUM PAYLOAD CAPACITY OF 280 KG, A HORIZONTAL REACH OF 3,114 MM, A VERTICAL REACH OF 3,552 MM, AND A REPEATABILITY OF ±0.01 MM. THE ROBOT IS CONTROLLED BY THE YRC1000 SYSTEM AND HAS A WEIGHT OF 2,380 KG. TECHNICAL SPECIFICATIONS INCLUDE INTERNAL USER I/O CABLES WITH 24 CONDUCTORS PLUS GROUND AND A 3/8-INCH INTERNAL USER AIR LINE CONNECTION. POWER REQUIREMENTS ARE 380-480 VAC WITH A 7.5 KVA RATING. RANGE OF MOTION FOR THE AXES IS S ±180°, L +90°/-45°, U +15.5°/-120°, R ±360°, B ±125°, AND T ±360°. MAXIMUM AXIS SPEEDS ARE RATED AT 110°/SEC FOR S, 90°/SEC FOR L AND U, 125°/SEC FOR R AND B, AND 205°/SEC FOR T. THE UNIT IS ENGINEERED FOR APPLICATIONS SUCH AS DISPENSING, MATERIAL CUTTING, MATERIAL HANDLING, MACHINE TENDING, AND PRESS TENDING. ITS DESIGN INCLUDES A STREAMLINED UPPER ARM TO MINIMIZE INTERFERENCE WITH FIXTURES AND HIGH MOMENT OF INERTIA RATINGS TO ACCOMMODATE LARGE PARTS.
