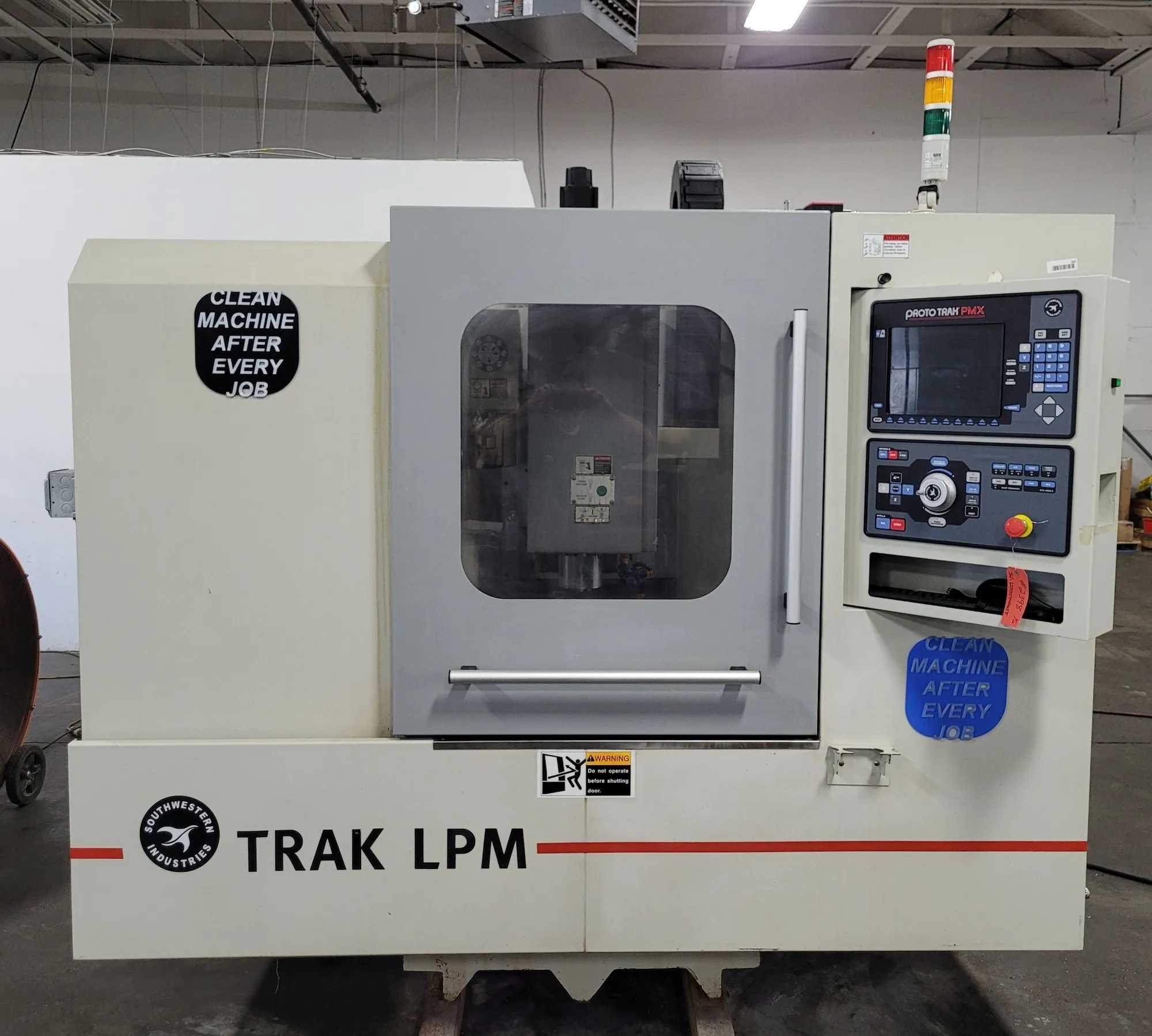

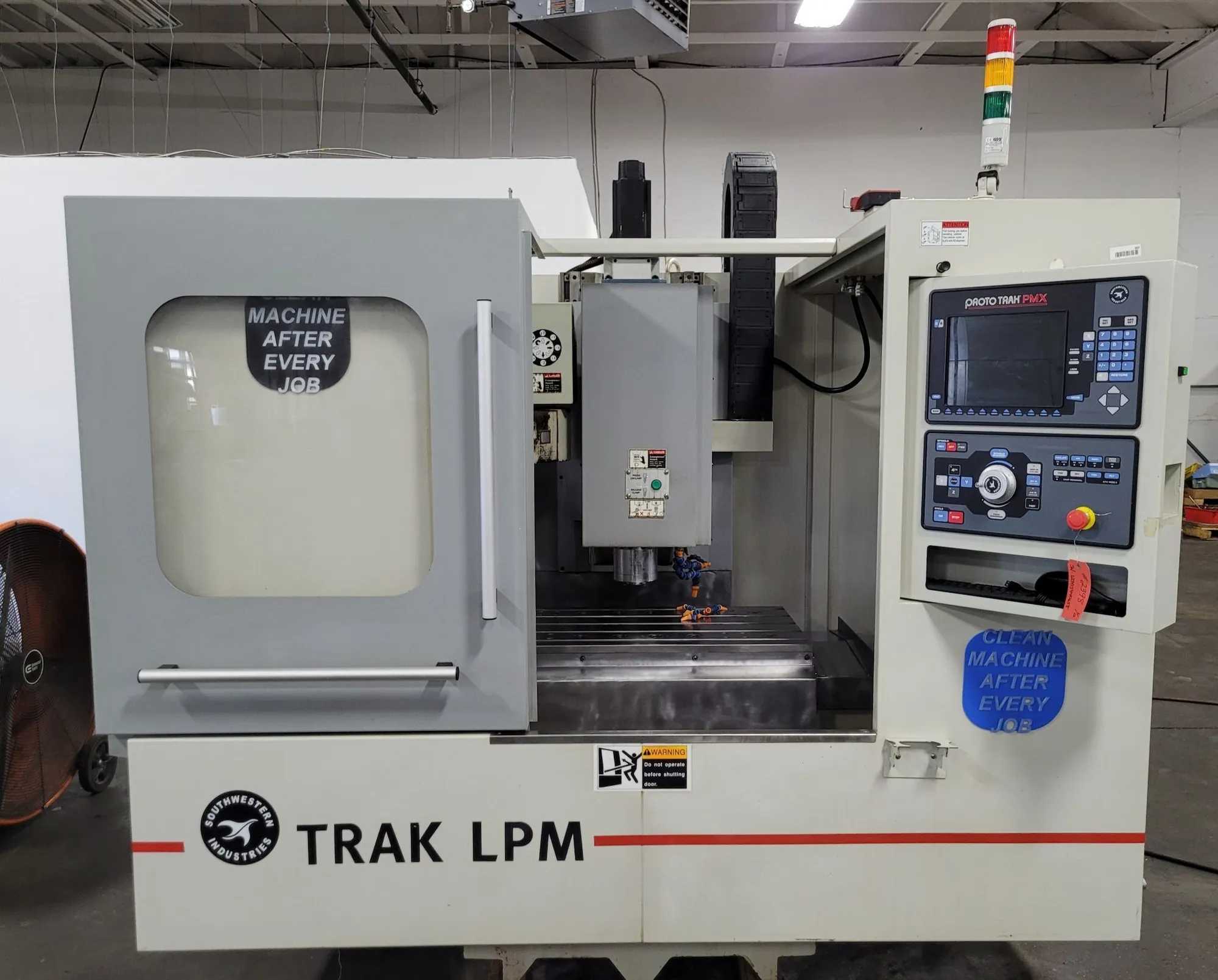

Southwestern Industries Trak Lpm 3-Axis CNC VMC - 8,000 RPM, 15 HP, 35.4" x 19.6" Table

Asking Price:
$22,950.00

Financing From: $380/mo

Get pre-approved in minutes — no credit impact

Apply

Delivery Options

Rigging · Included

Loading · Included

Shipping · Buyer or

Removal Deadline · 30 days

Product Description

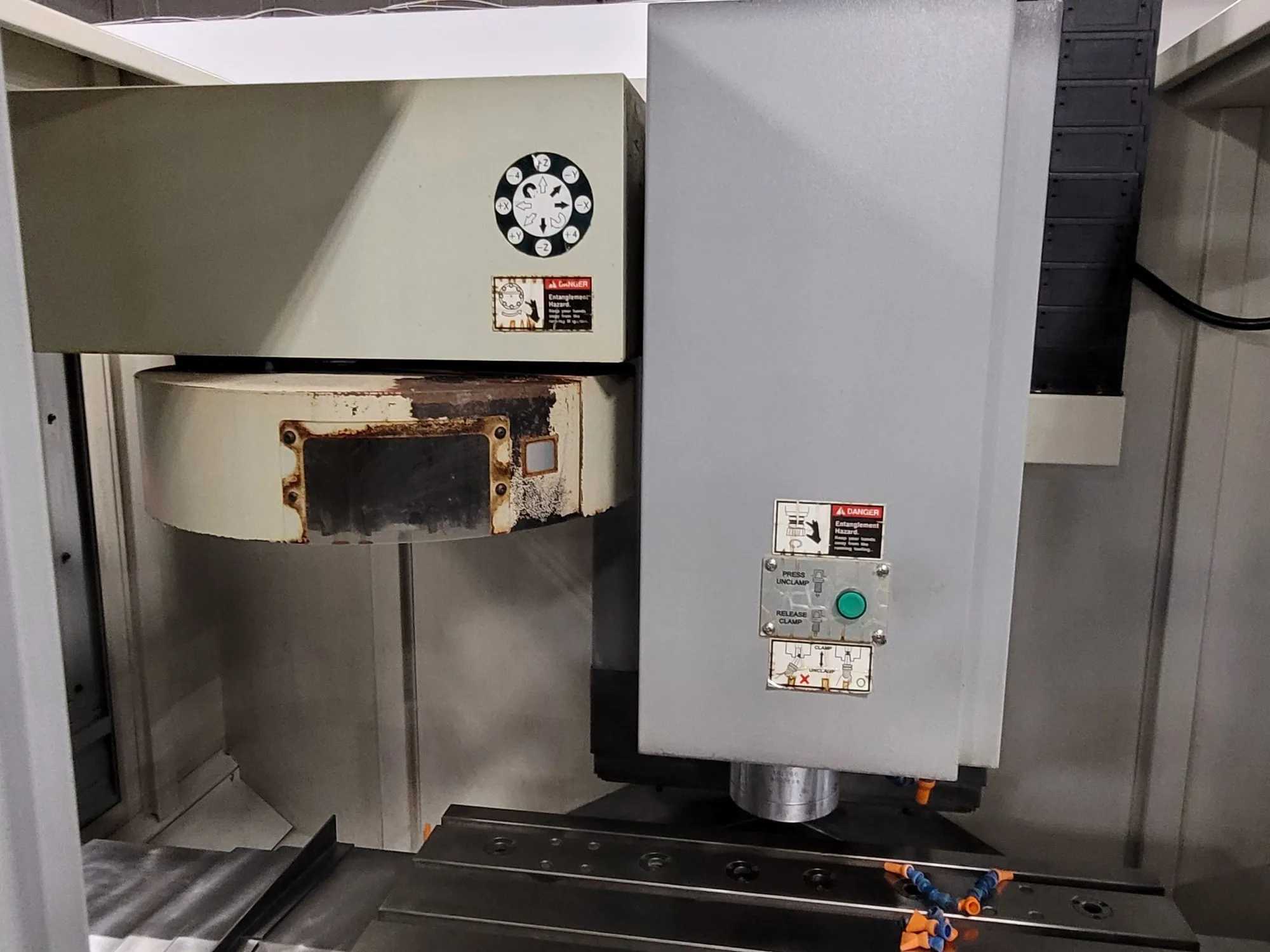

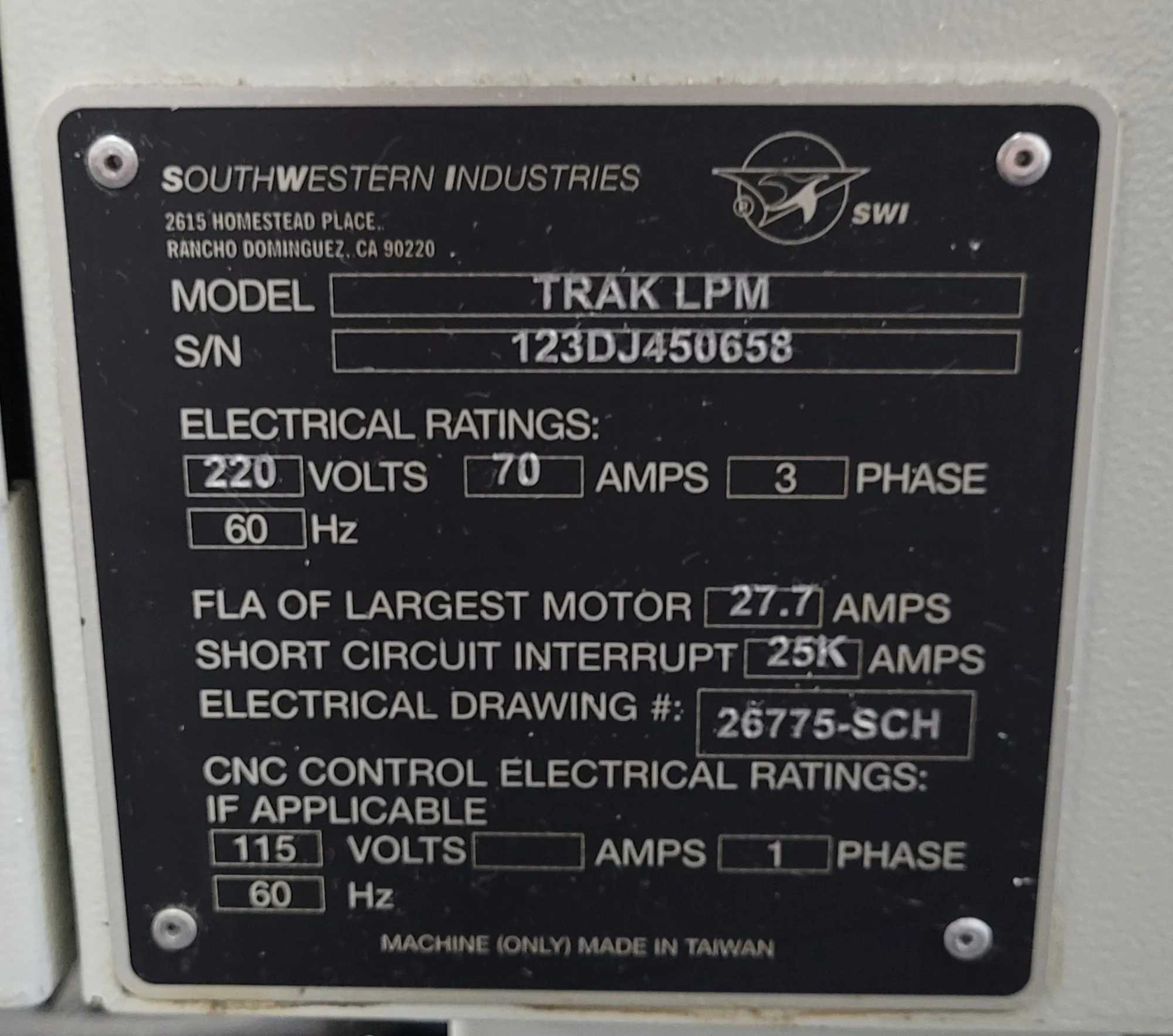

The 2012 Southwestern Industries TRAK LPM is a 3-axis vertical CNC machining center with a ProtoTrak PMX control, designed for quick changeovers. X - 31" Y - 18.5" Z - 21" Power - 10 hp RPM - 8,000 RPM # ATC - 16 Taper - CT 40 Pallet-W - 19.625" Pallet-L - 35.375" # Axis - 3 Control - CNC (ProtoTrak PMX CNC) Dimensions - 113 L x 88 W x 98 H Weight - 7,650 lbs Southern Industries Trak LPM Vertical CNC Machining Center, S/N 123DJ440658 Machine Specifications (2012 Model): Model: TRAK LPM (Southwestern Industries) Control: ProtoTrak PMX CNC Travels (X/Y/Z): 31" x 18.5" x 21" Table Size: 35-3/8" x 19-5/8" Table Capacity: 1,000 lbs Tee-Slotted Table with Jergens Ball Lock System Spindle Speed: 8,000 RPM Max Spindle Taper: CT 40 Wired for 4th Axis Spindle Motor: 15 HP Peak / 10 HP Continuous Tool Changer: 16 Stations (Carousel) Max Tool weight 15 Lbs. Rapid Traverse (X/Y/Z): 800 / 800 / 700 IPM Chip Auger DXF Input [ conversational mode ] Weight: Approx. 7,650 lbs Dimensions: ~113"L x 88"W x 98"H Power Requirement: 208-240V / 3 Phase / 70-78 FLA Key Features: Stage Mode: Allows programming the next part while the current one is cutting. Capabilities: Includes rigid tapping, air blast, coolant pump, and chip auger. Southern Industries Trak LPM Vertical CNC Machining Center, S/N 123DJ440658 Machine Specifications (2012 Model): Model: TRAK LPM (Southwestern Industries) Control: ProtoTrak PMX CNC Travels (X/Y/Z): 31" x 18.5" x 21" Table Size: 35-3/8" x 19-5/8" Table Capacity: 1,000 lbs Tee-Slotted Table with Jergens Ball Lock System Spindle Speed: 8,000 RPM Max Spindle Taper: CT 40 Wired for 4th Axis Spindle Motor: 15 HP Peak / 10 HP Continuous Tool Changer: 16 Stations (Carousel) Max Tool weight 15 Lbs. Rapid Traverse (X/Y/Z): 800 / 800 / 700 IPM Chip Auger DXF Input [ conversational mode ] Weight: Approx. 7,650 lbs Dimensions: ~113"L x 88"W x 98"H Power Requirement: 208-240V / 3 Phase / 70-78 FLA Key Features: Stage Mode: Allows programming the next part while the current one is cutting. Capabilities: Includes rigid tapping, air blast, coolant pump, and chip auger. Southern Industries Trak LPM Vertical CNC Machining Center, S/N 123DJ440658 Machine Specifications (2012 Model): Model: TRAK LPM (Southwestern Industries) Control: ProtoTrak PMX CNC Travels (X/Y/Z): 31" x 18.5" x 21" Table Size: 35-3/8" x 19-5/8" Table Capacity: 1,000 lbs Tee-Slotted Table with Jergens Ball Lock System Spindle Speed: 8,000 RPM Max Spindle Taper: CT 40 Wired for 4th Axis Spindle Motor: 15 HP Peak / 10 HP Continuous Tool Changer: 16 Stations (Carousel) Max Tool weight 15 Lbs. Rapid Traverse (X/Y/Z): 800 / 800 / 700 IPM Chip Auger DXF Input [ conversational mode ] Weight: Approx. 7,650 lbs Dimensions: ~113"L x 88"W x 98"H Power Requirement: 208-240V / 3 Phase / 70-78 FLA Key Features: Stage Mode: Allows programming the next part while the current one is cutting. Capabilities: Includes rigid tapping, air blast, coolant pump, and chip auger. https://www.youtube.com/watch?v=dLSuWCIKnBU

Core Specifications

Manufacturer: SWI

Model: TRAK LPM

Year: 2012

Packaging Type: 1 Piece

Condition: Good - Item functions as originally intended, shows minimal signs of wear.
