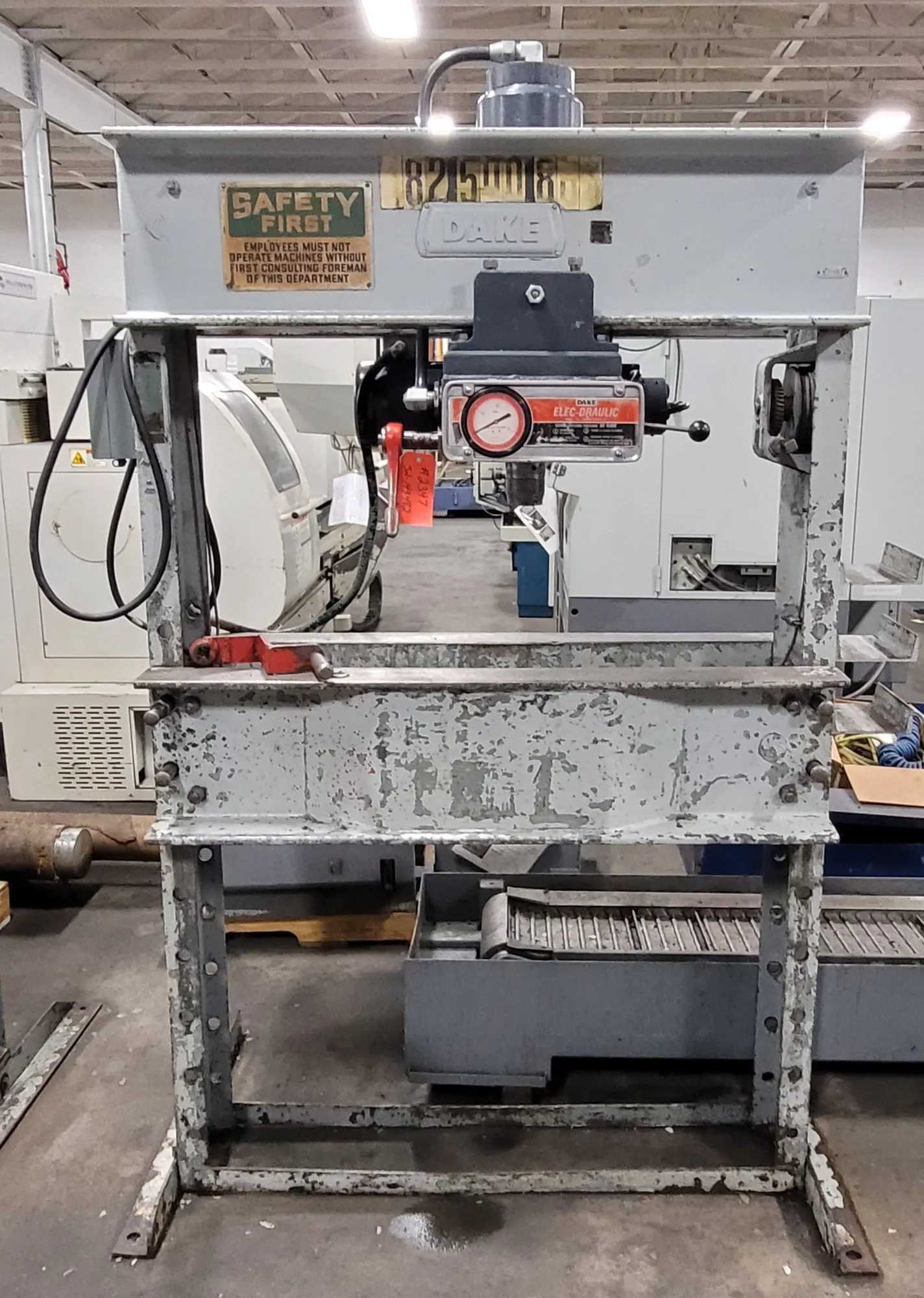

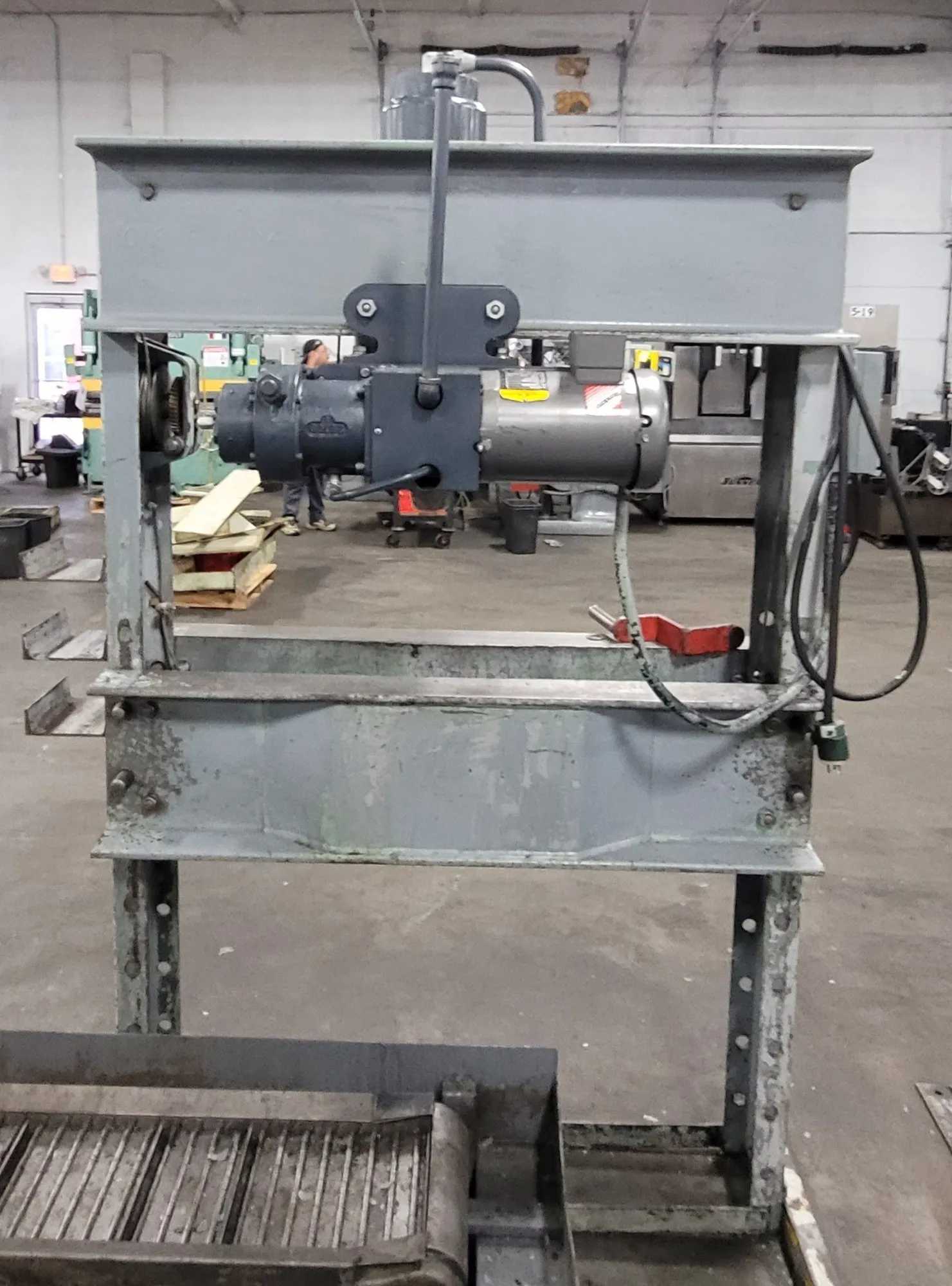

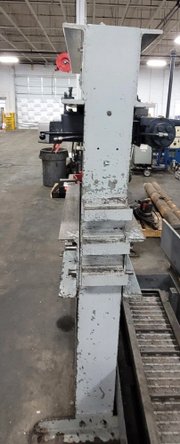

Dake 5-075 Elec-Draulic I H-Frame Press, 75-Ton, 2 HP, 10" Ram Travel, 44" Width, 220V/440V

The Dake 5-075 Elec-Draulic I H-Frame Press is a 75-ton electric-hydraulic press designed for industrial, maintenance, and production applications. It features a 2 HP motor compatible with 220V/440V 3-phase power. The unit provides a 44-inch width between uprights and 8 1/4 inches between table channels. The ram travel is 10 inches, while the movable workhead offers 24 inches of horizontal travel for off-center operations. The distance from the ram to the table ranges from a minimum of 6 inches to a maximum of 36 inches. Performance specifications include an approximate advance ram speed of 28 IPM and a pressing speed of 5 IPM. The press includes an adjustable table with a self-locking hoist and fingertip controls with a safety overload bypass. The physical dimensions are approximately 55 x 36 x 87 inches with a weight of 1,245 lbs.
