75 Ton Dake Model 5-075 Elec-Draulic H-Frame Traveling-Column Straightening Press

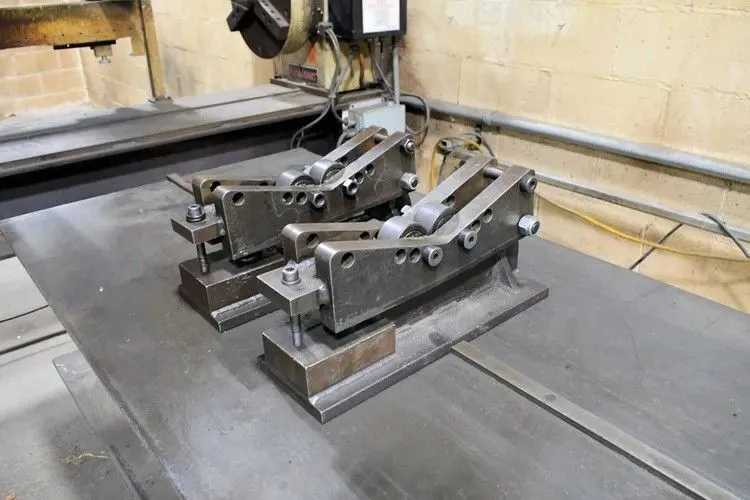

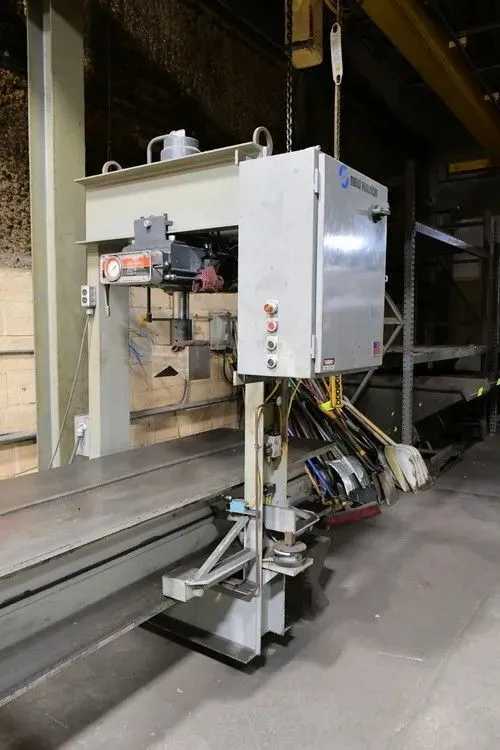

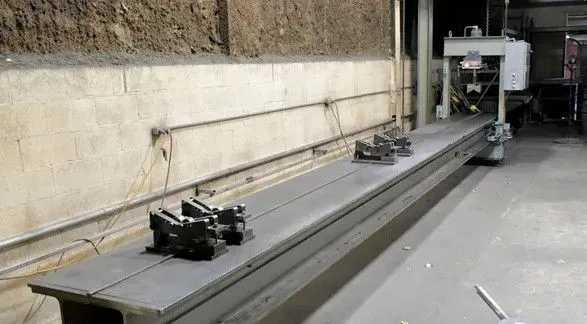

The model 5-075 75 ton Dake Elec-Draulic H-Frame traveling-column hydraulic straightening press is engineered for precision and power. It features a robust 75-ton tonnage capacity and a 10-inch stroke length. The machine includes a 2 HP Elec-Draulic moveable workhead and is equipped with power column traverse, variable ram speed, and (3) adjustable work supports. Key specifications include 35 inches distance between housings and a substantial 360-inch (30 feet) by 32-inch worktable. Ram speeds are 5 IPM for pressing and 28 IPM for advancing. The unit is powered by a 2 HP/1745 RPM motor, operating on a 230-460/3/60 electrical system. Overall dimensions are 360 inches long by 64 inches wide, with an overall height of 96 inches.
