2007 Dake 6-650 H-Frame Shop Press 150T, 16" Ram Travel, 48" Upright W, 90-125 PSI

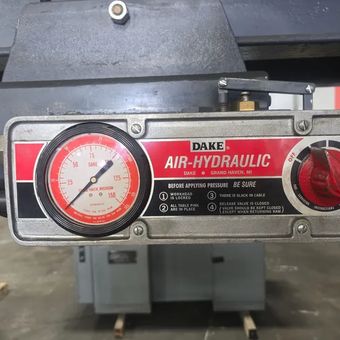

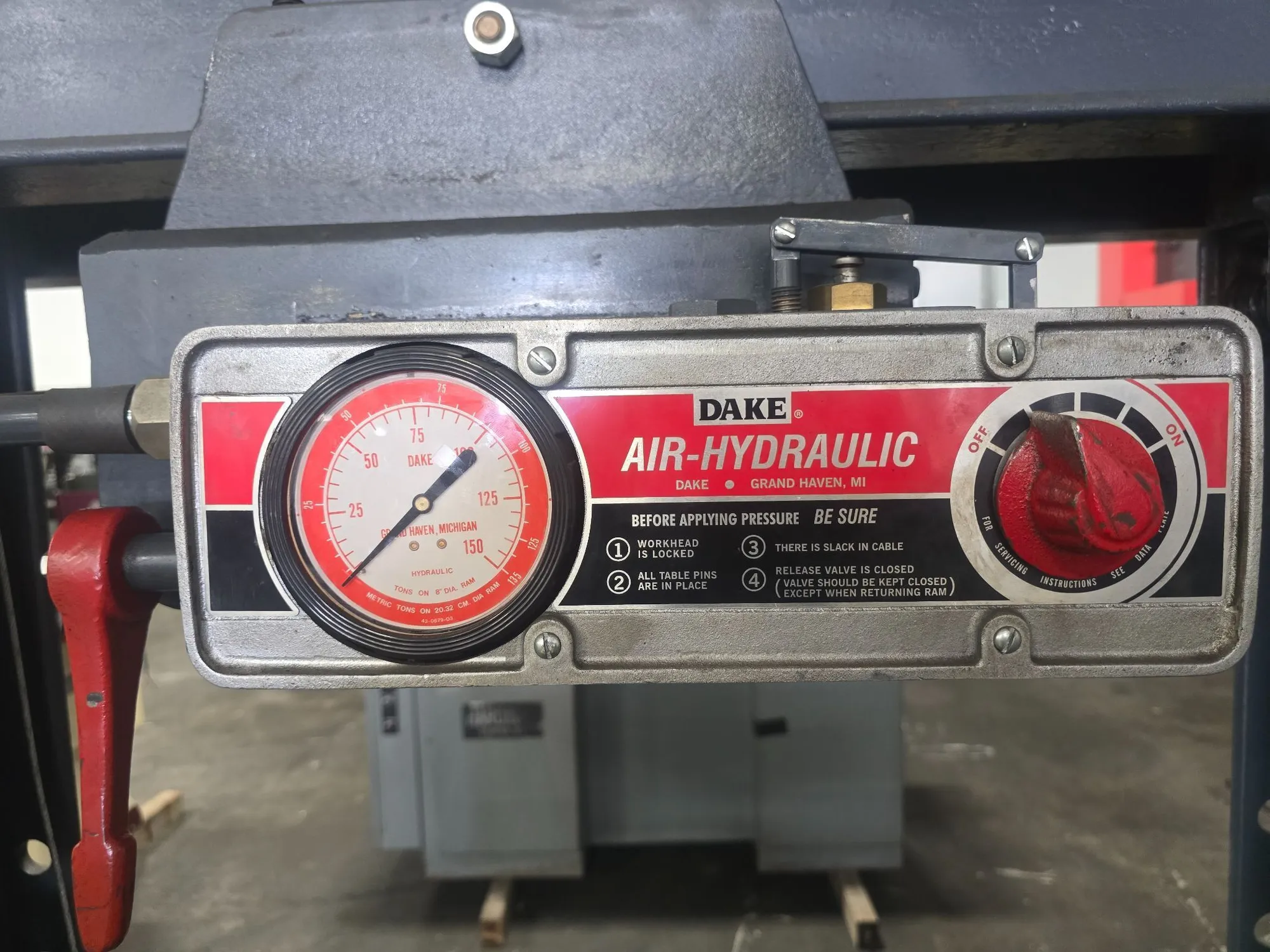

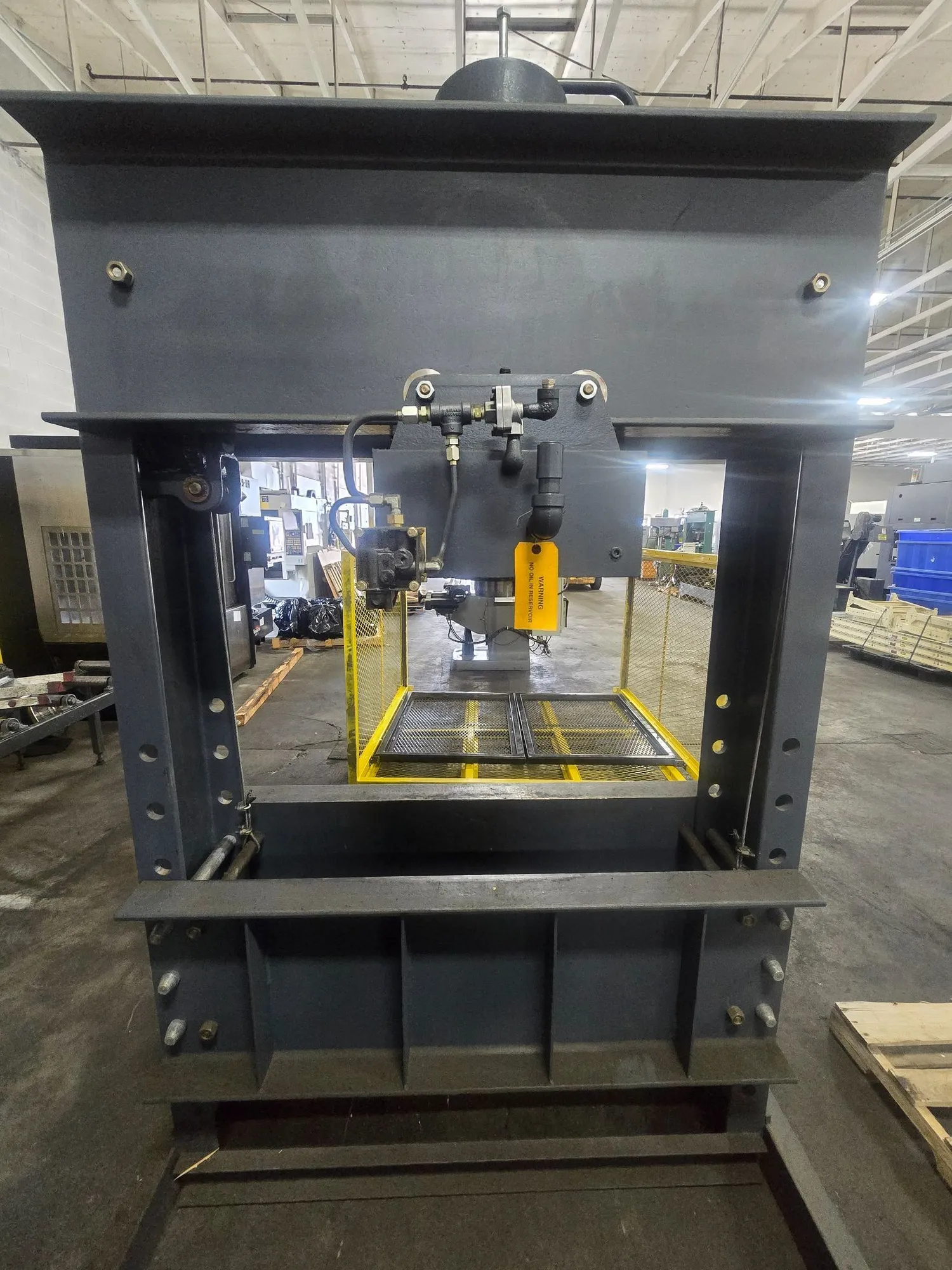

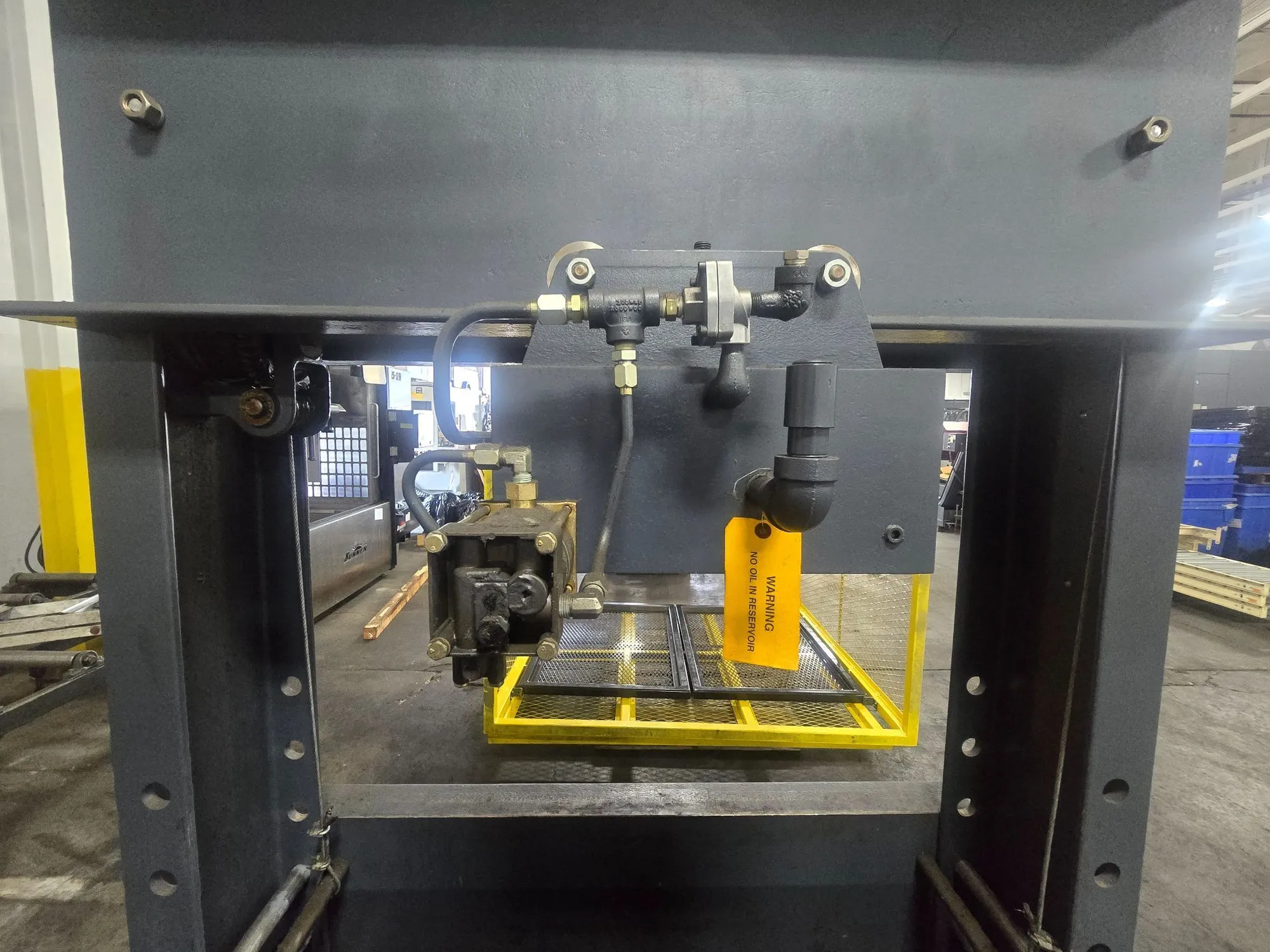

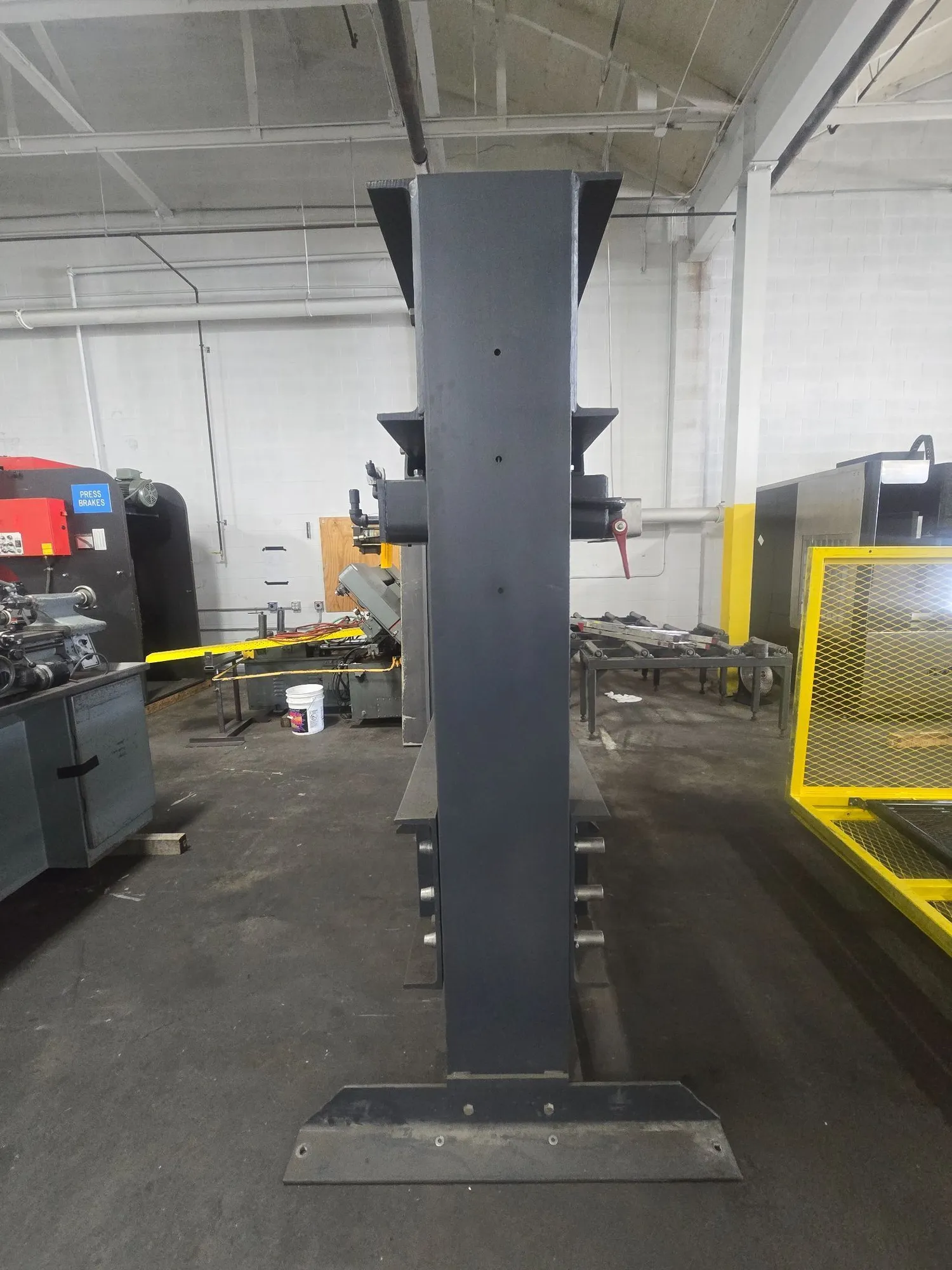

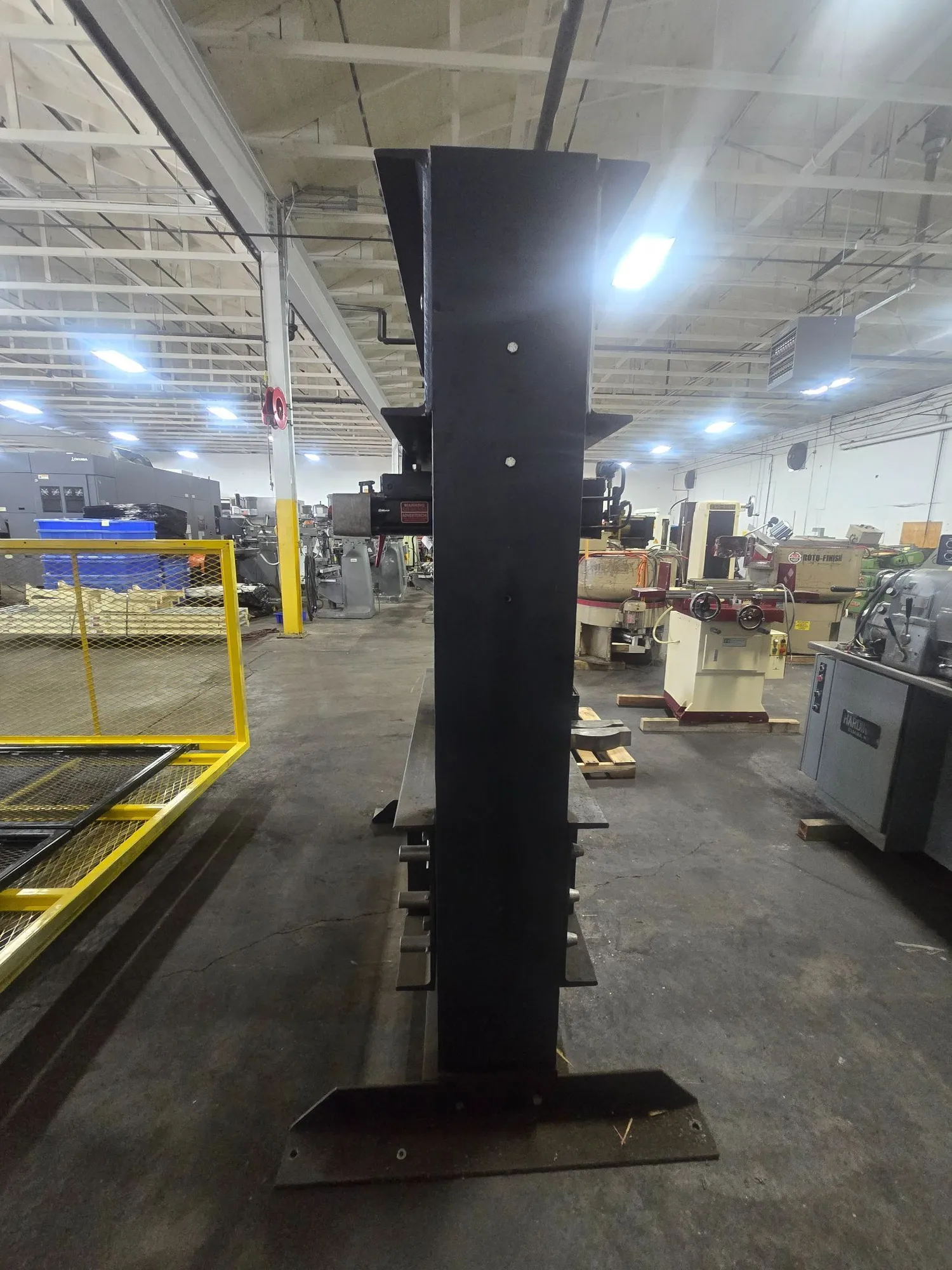

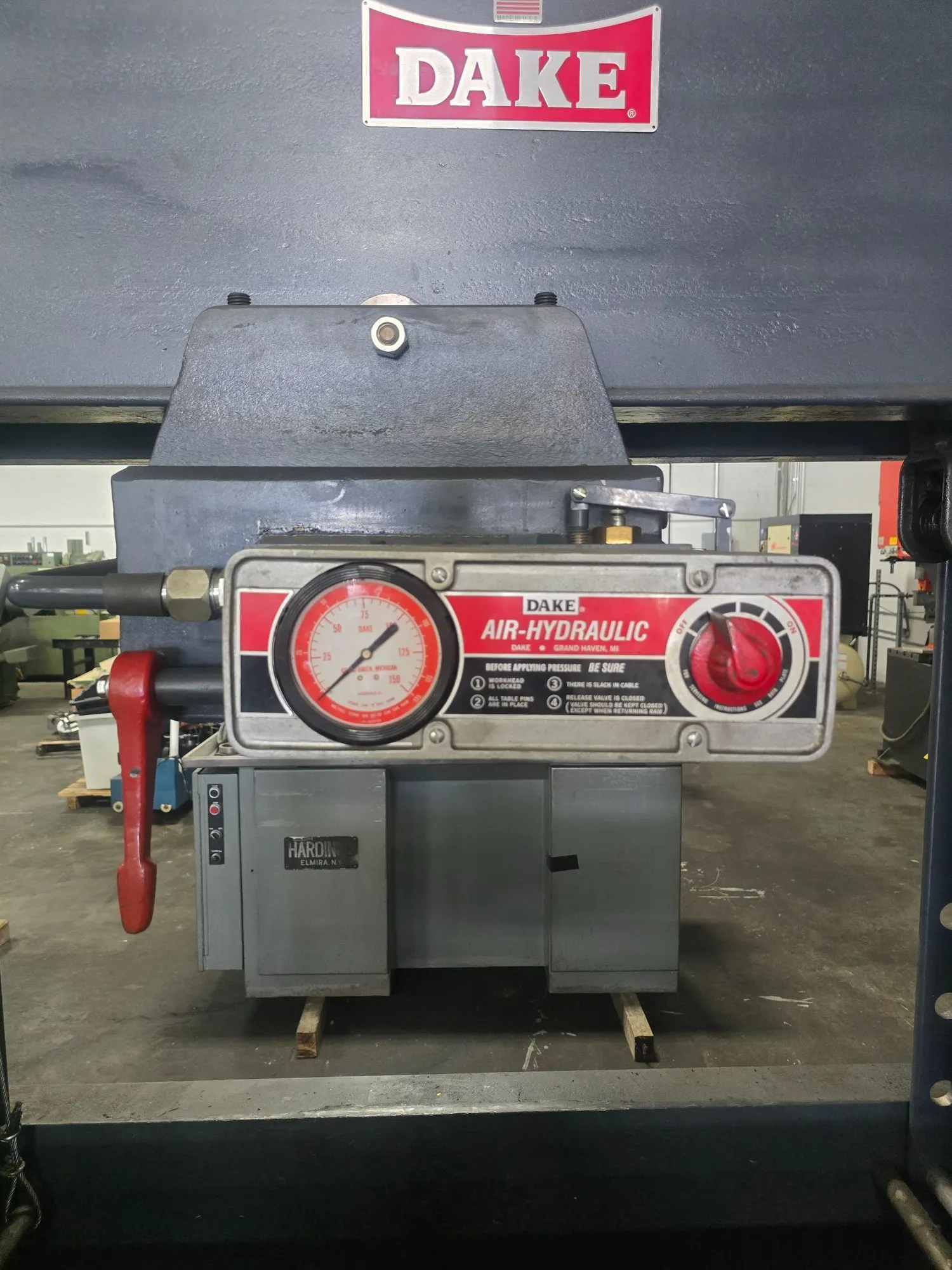

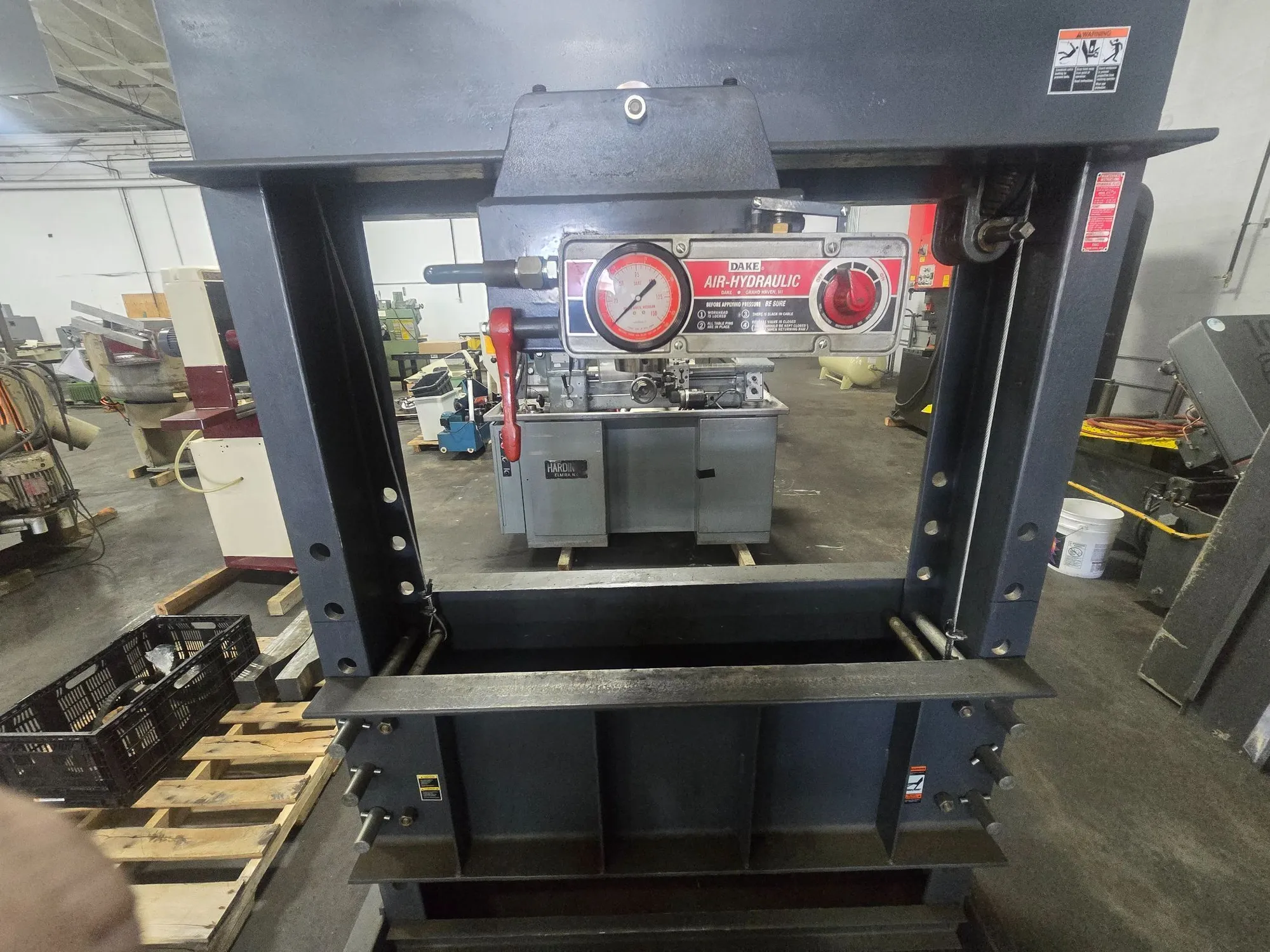

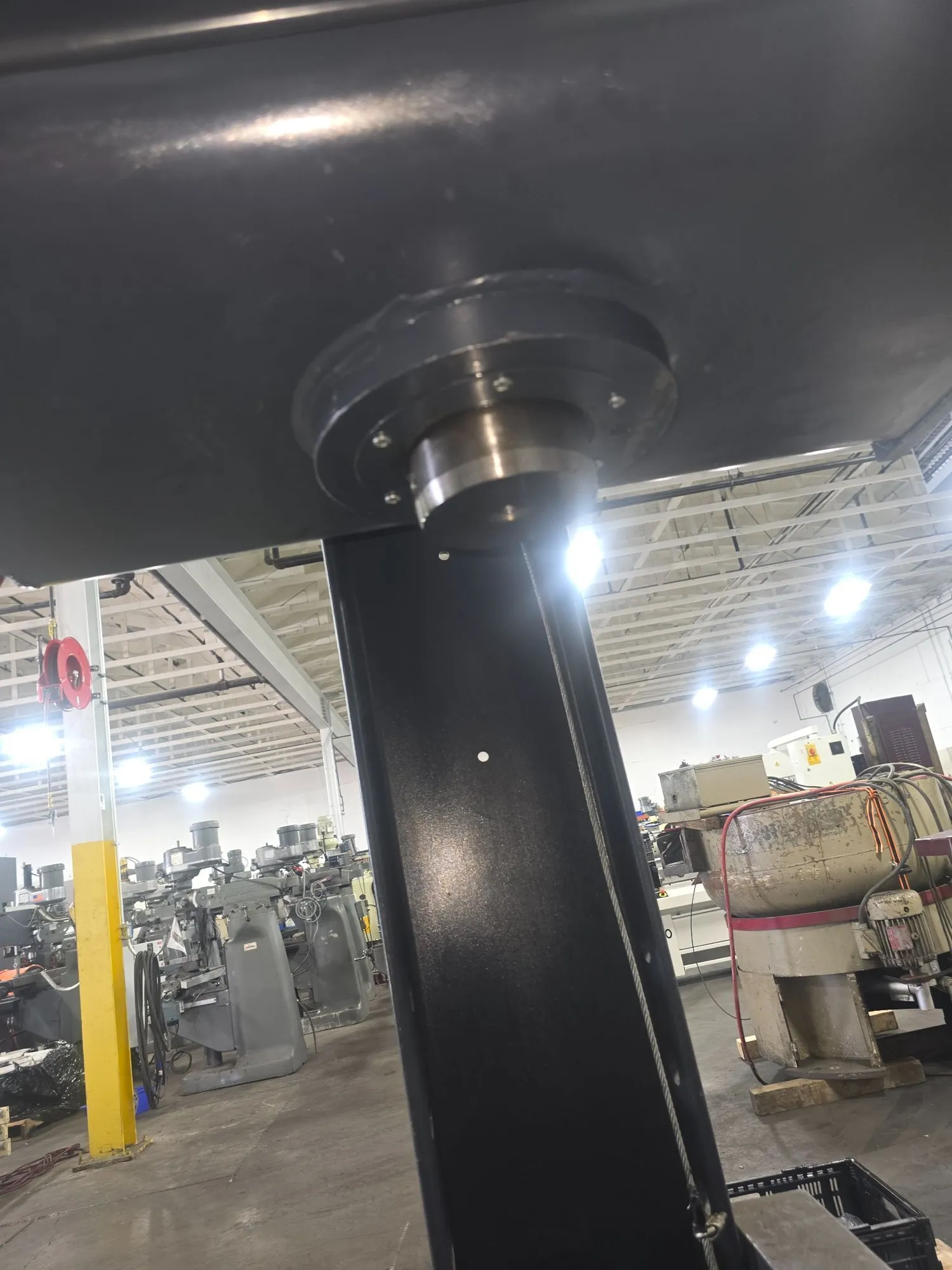

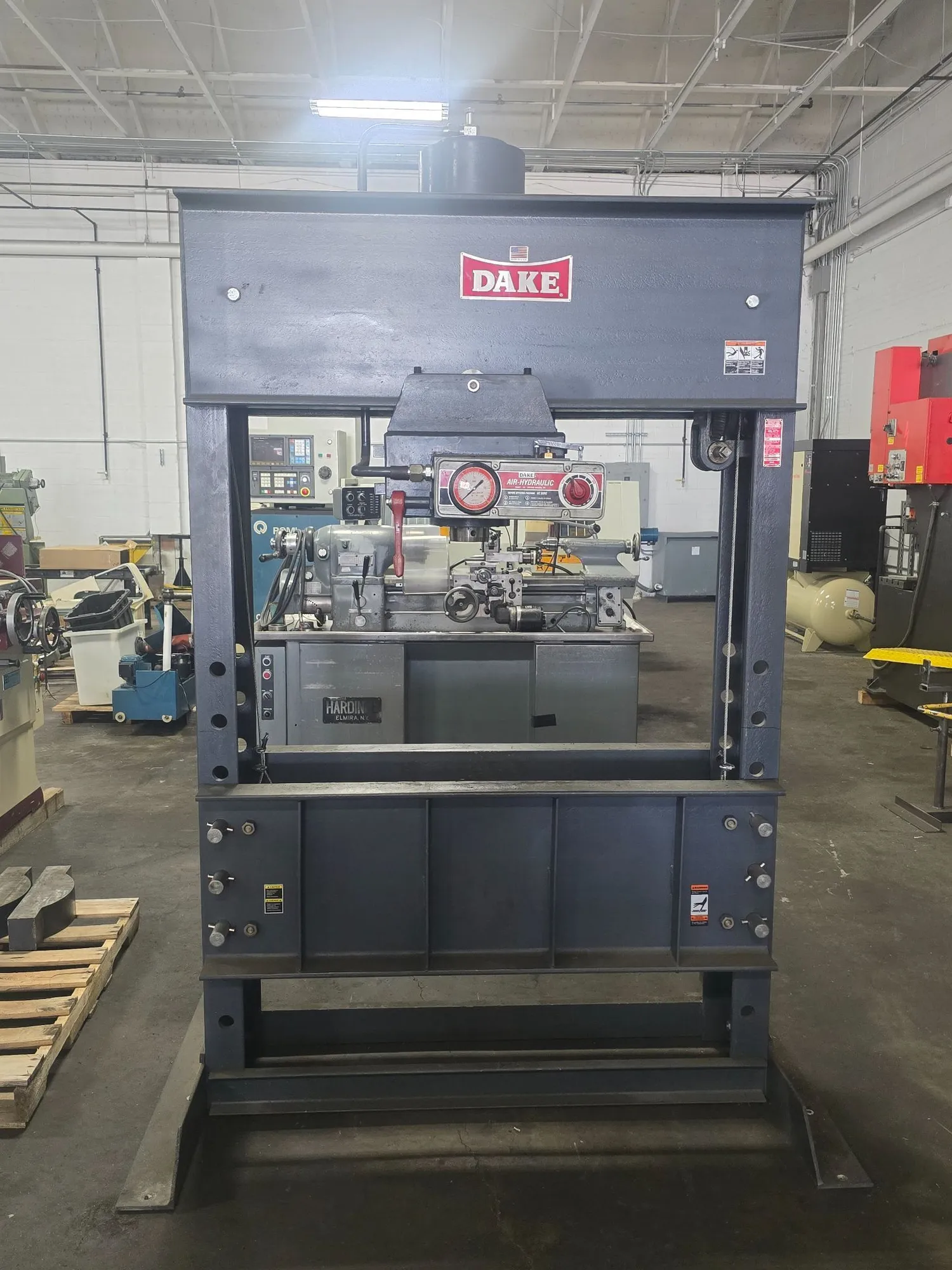

This Dake 6-650 H frame shop press is a 150 ton air-over-hydraulic press designed for fabricating and pressing applications. It operates with an air pressure requirement of 90-125 PSI. The press has overall base dimensions of 66 inches by 42 inches and a height of 95 inches, with a total weight of 3,000 lbs. Key working dimensions include a width of 48 inches between the uprights and 12-1/4 inches between the table channels. The ram features a travel of 16 inches, with the maximum ram-to-table distance being 30 inches and the minimum at 10 inches. The horizontal workhead travel is 21-7/8 inches. The machine incorporates an adjustable table with a self-locking hoist for easy vertical movement, and a movable workhead that is roller mounted on ball bearings to facilitate off-center work. Operational features include air operation to eliminate manual hand pumping, a safety valve for overload protection, a stroke indicator for accurate ram control, and a rapid ram approach feature to expedite production time.
