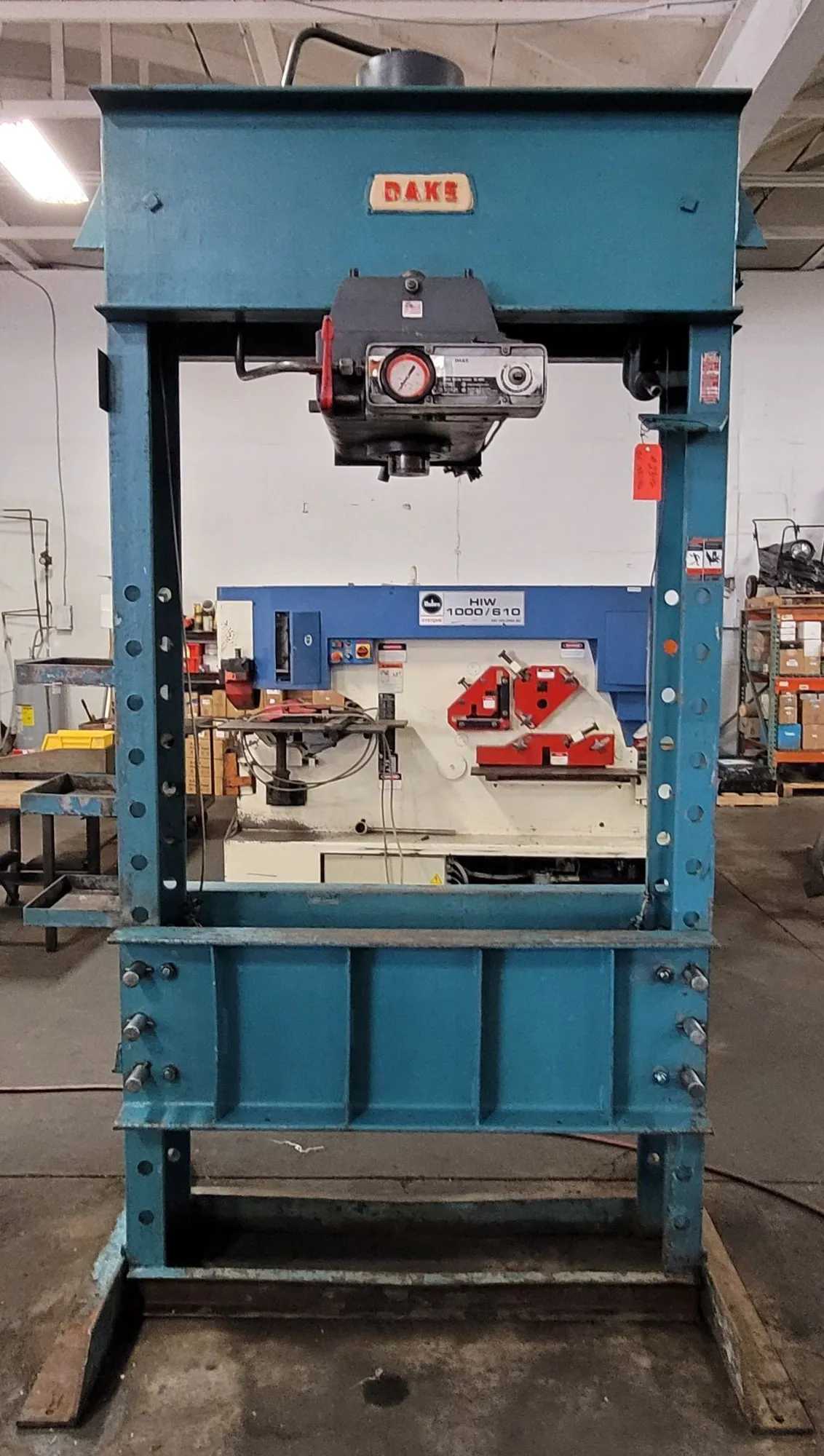

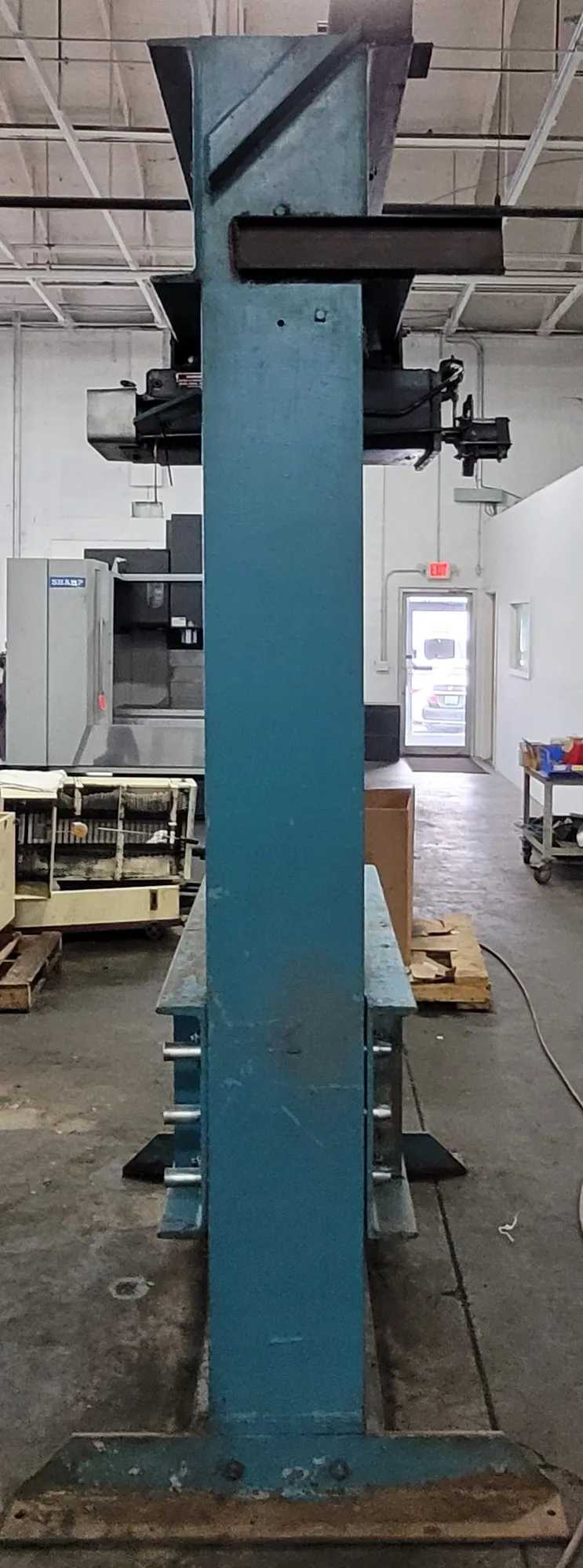

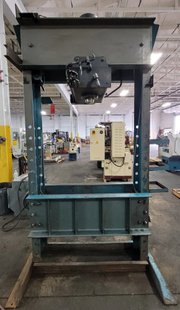

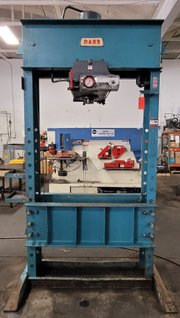

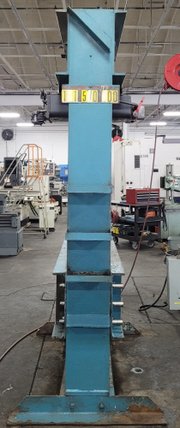

DAKE 6-858 150-TON AIR-OVER-HYDRAULIC H-FRAME PRESS, 16" RAM TRAVEL, 48" BETWEEN UPRIGHTS

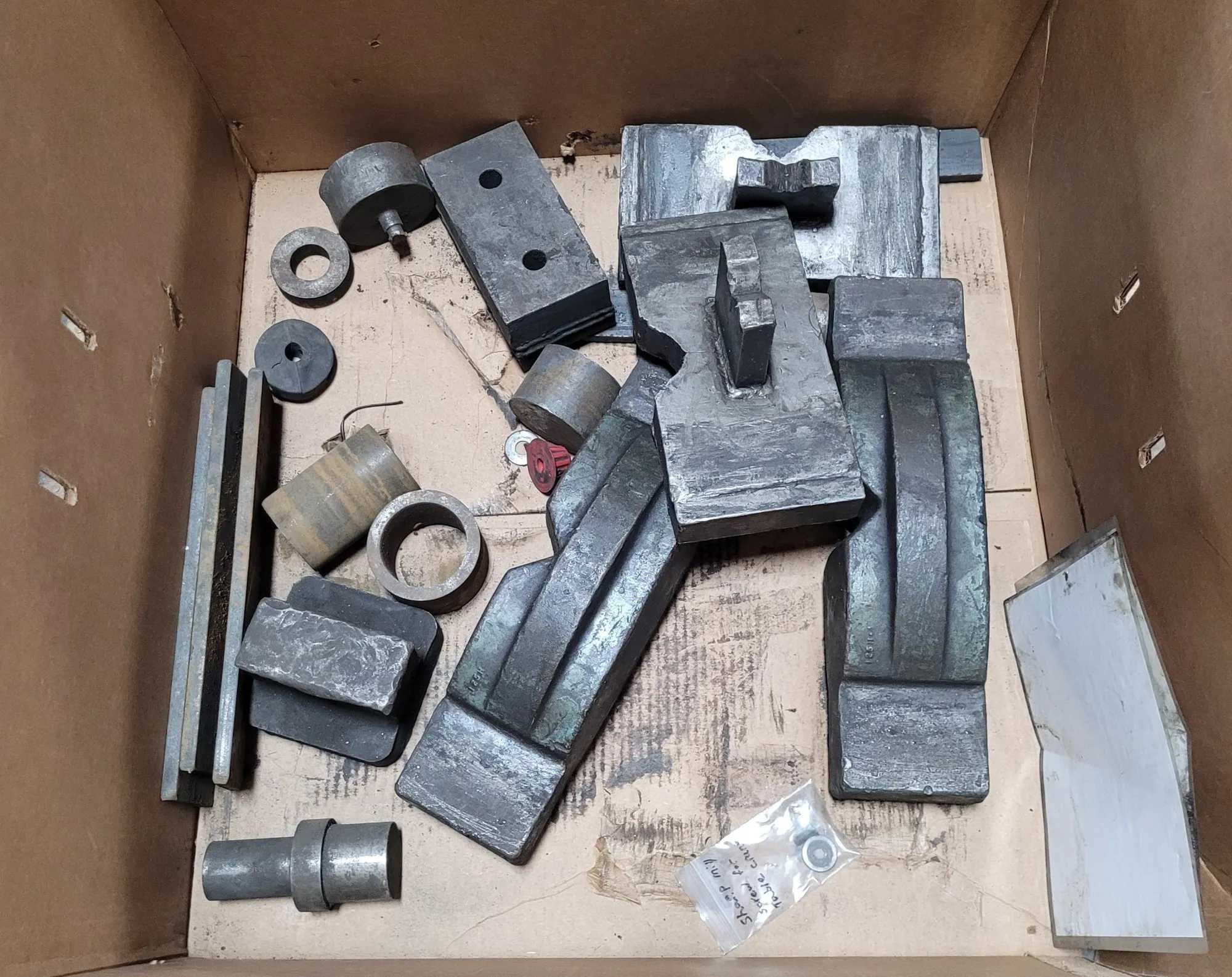

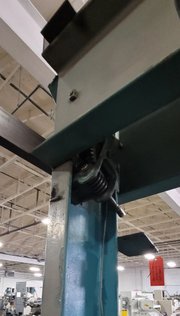

THE DAKE MODEL 6-858 IS A 150-TON AIR-OVER-HYDRAULIC HEAVY-DUTY H-FRAME PRESS DESIGNED FOR HIGH-CAPACITY FABRICATION. IT OPERATES ON AN AIR PRESSURE RANGE OF 90-125 PSI AND FEATURES DUAL AIR PUMPS TO PROVIDE FASTER PRESSING SPEEDS. THE PRESS IS CONSTRUCTED WITH A HEAVY-DUTY WELDED STEEL FRAME AND INCLUDES A ROLLER-MOUNTED MOVABLE WORKHEAD FOR OFF-CENTER POSITIONING, ALONG WITH A SELF-LOCKING TABLE HOIST FOR HEIGHT ADJUSTMENT. TECHNICAL SPECIFICATIONS INCLUDE A 16-INCH RAM TRAVEL, A MAXIMUM RAM-TO-TABLE DISTANCE OF 30 INCHES, AND A MINIMUM DISTANCE OF 10 INCHES. THE UNIT PROVIDES A 48-INCH WIDTH BETWEEN UPRIGHTS, AN OVERALL UPRIGHT WIDTH OF 56 INCHES, AND 12-1/2 INCHES BETWEEN TABLE CHANNELS. THE WORKHEAD HAS A HORIZONTAL TRAVEL OF 21-7/8 INCHES. PERFORMANCE SPEEDS ARE RATED AT 22 INCHES PER MINUTE FOR RAM ADVANCE AND 2 INCHES PER MINUTE FOR PRESSING. THE PHYSICAL FOOTPRINT OF THE MACHINE IS 66 INCHES BY 42 INCHES AT THE BASE, WITH AN OVERALL HEIGHT OF 112 INCHES AND A TOTAL WEIGHT OF 3,050 LBS. STANDARD ACCESSORIES INCLUDE TWO FORGED STEEL V-BLOCKS, TWO TABLE PLATES, AND A PRESSURE GAUGE.
