1993 FADAL 6030 VHT, VMC, 62.5"X30" TABLE, 10,000 RPM, 22.5 HP, 21-STATION TOOL CHANGER

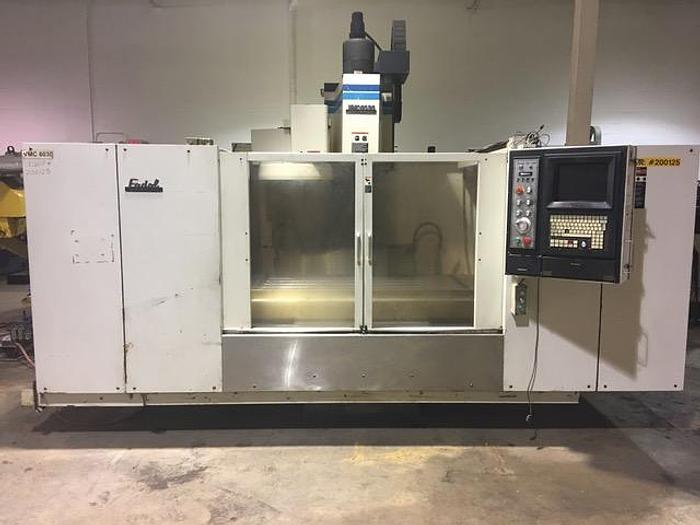

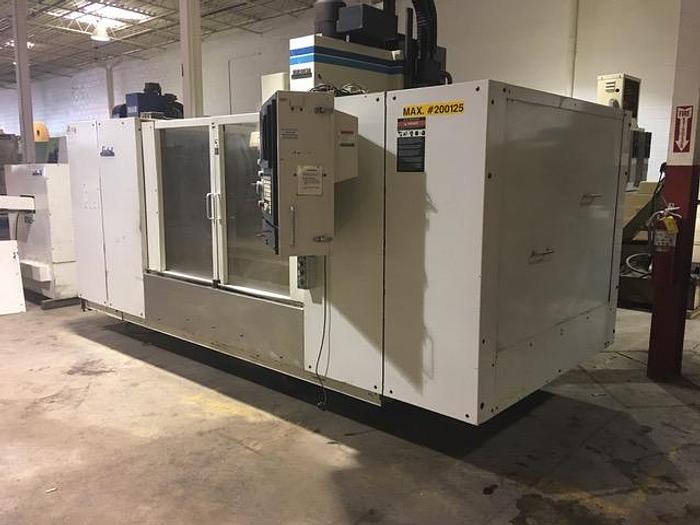

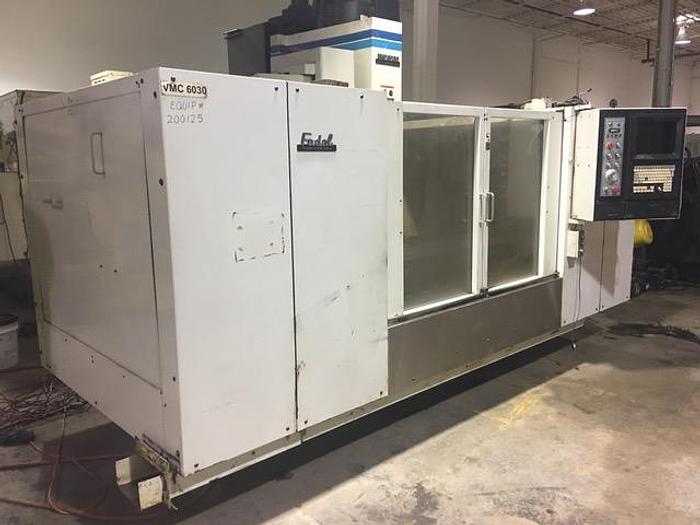

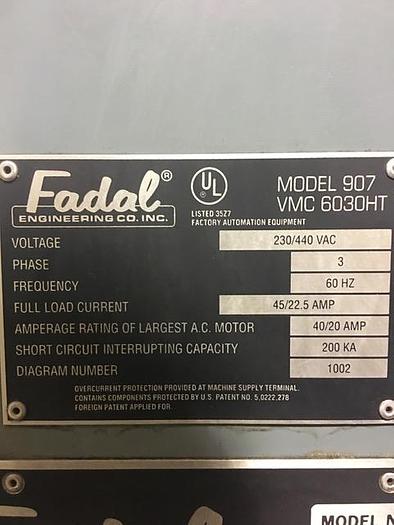

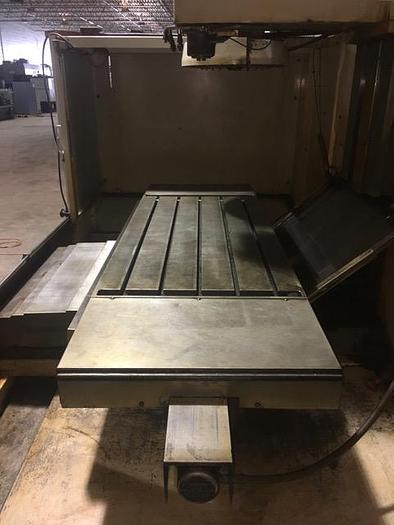

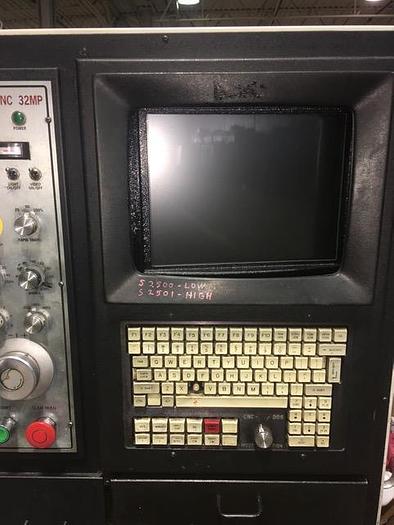

THE 1993 FADAL 6030 VHT IS A VERTICAL MACHINING CENTER FEATURING A 62.5 INCH BY 30 INCH TABLE WITH A MAXIMUM WEIGHT CAPACITY OF 4,120 LBS. THIS MACHINE PROVIDES A TRAVEL RANGE OF 60 INCHES ON THE X-AXIS, 30 INCHES ON THE Y-AXIS, AND 30 INCHES ON THE Z-AXIS. THE SPINDLE UTILIZES A NO. 40 TAPER, DELIVERS SPEEDS UP TO 10,000 RPM, AND IS POWERED BY A 22.5 HP MOTOR PRODUCING 220 FT-LBS OF TORQUE. IT IS EQUIPPED WITH A 21-STATION AUTOMATIC TOOL CHANGER SUPPORTING TOOLS UP TO 15 INCHES IN LENGTH AND 15 LBS IN WEIGHT. TECHNICAL ACCURACY SPECIFICATIONS INCLUDE AN AXIS POSITIONING TOLERANCE OF PLUS OR MINUS .0003 INCHES AND REPEATABILITY OF PLUS OR MINUS .00015 INCHES. THE UNIT FEATURES A FADAL MULTIPROCESSOR CNC CONTROL, A NEW COLOR CRT, AND A CHIP CONVEYOR. THE MACHINE'S PHYSICAL FOOTPRINT MEASURES 158 INCHES IN WIDTH BY 103 INCHES IN DEPTH, WITH A MAXIMUM HEIGHT OF 122 INCHES AND A TOTAL WEIGHT OF 17,000 LBS. POWER REQUIREMENTS ARE 240 VAC, 3-PHASE, 50/60 CYCLE WITH A 28 KVA RATING. ADDITIONAL SPECIFICATIONS INCLUDE A CUTTING FEED RATE OF .01-250 IPM AND RAPID TRAVEL RATES OF 400 IPM ACROSS ALL AXES.
