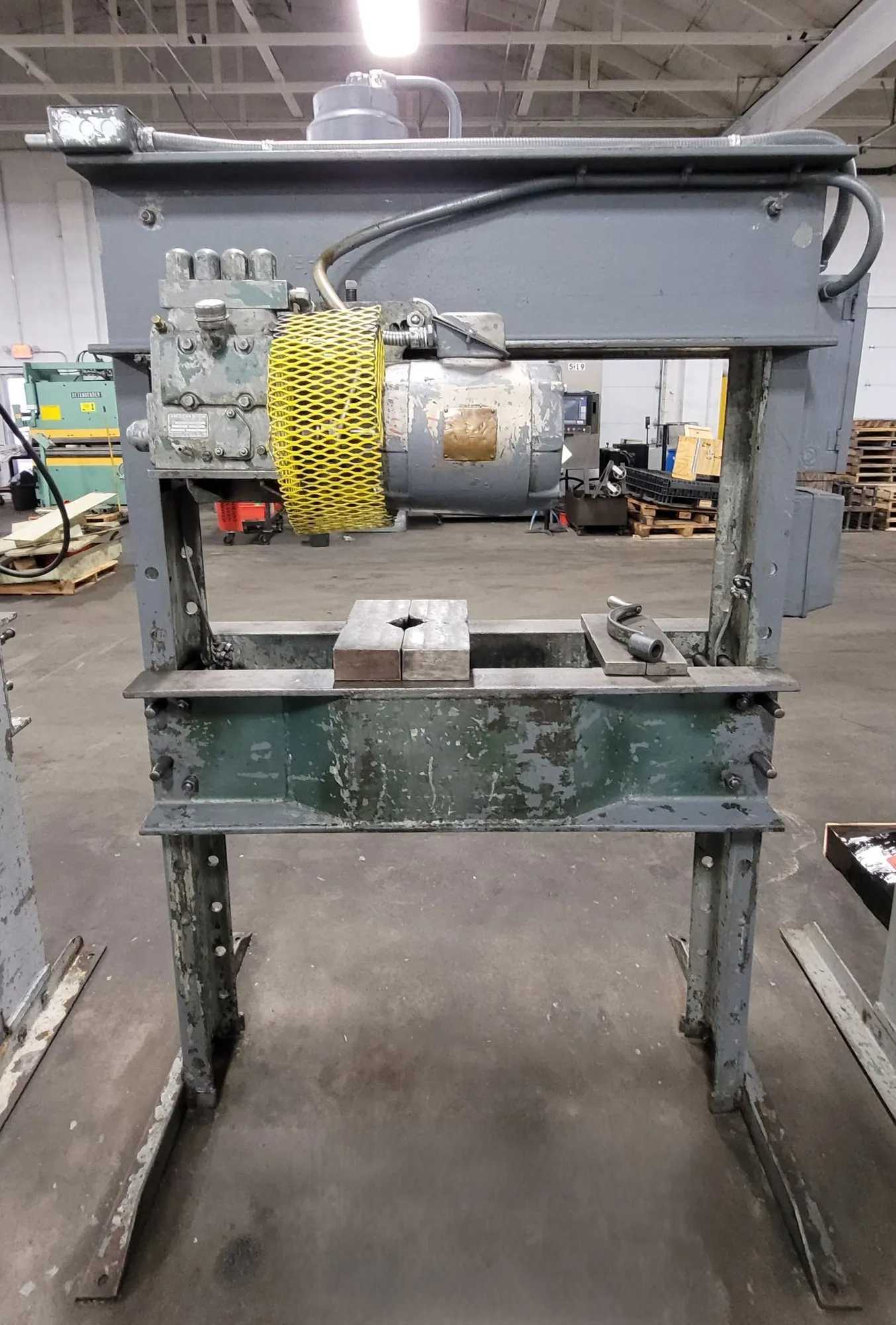

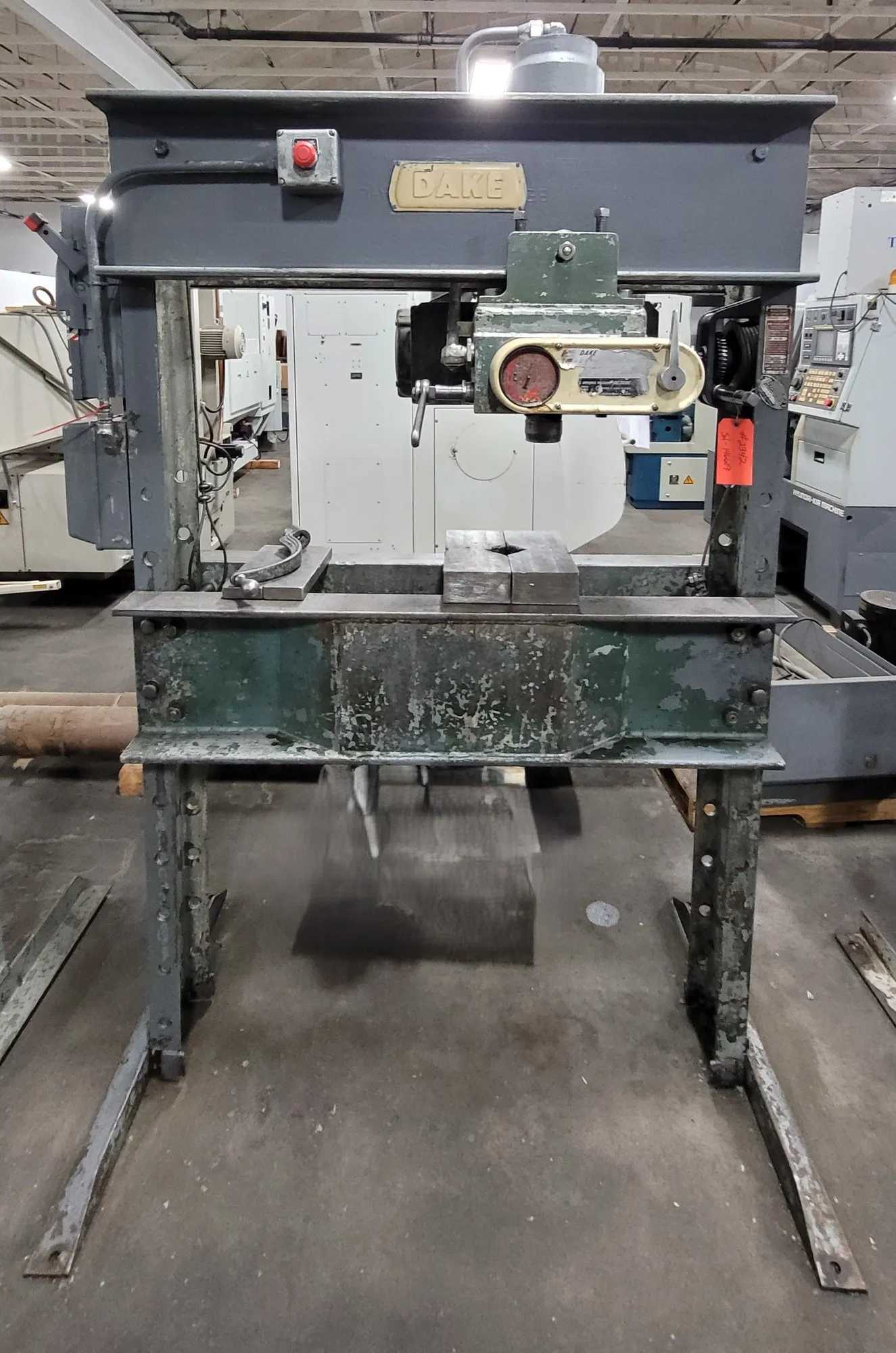

Dake 5-075 Elec-Draulic I H-Frame Press, 75-Ton, 2 HP, 10" Ram Travel, 44" Between Uprights

The Dake 5-075 Elec-Draulic I H-Frame Press is a 75-ton electric-hydraulic press designed for industrial, maintenance, and production applications. It features a 2 HP, 220V/440V, 3-phase motor and a movable workhead with 24 inches of horizontal travel for off-center operations. The unit provides a 44-inch width between uprights and 8 1/4 inches between table channels. The vertical workspace ranges from 6 to 36 inches between the ram and the table, supported by an adjustable table with a self-locking hoist. Technical performance specifications include a 10-inch ram travel, an approximate advance speed of 28 IPM, and a pressing speed of 5 IPM. The press is equipped with fingertip controls and a safety overload bypass. Physical dimensions are approximately 55 x 36 x 87 inches with a weight of 1,245 lbs.
