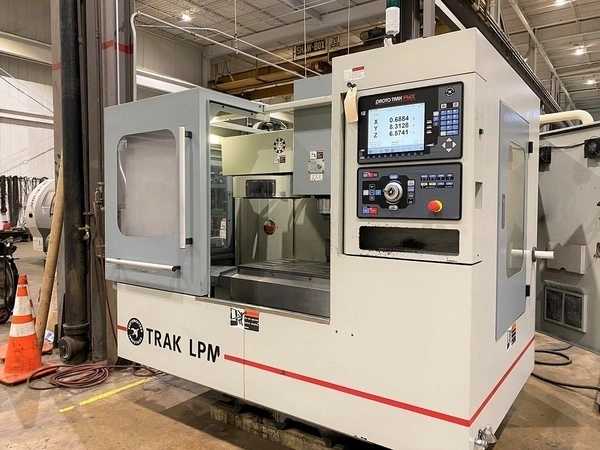

2009 Southwestern Trak Lpm VMC, 31X18.5X21 in Travel, 10 HP Spindle, 8000 RPM, BT-40, 20 Tool ATC

The Southwestern Trak LPM machining center is a vertical machining center featuring X, Y, and Z axis travels of 31 inches, 18.5 inches, and 21 inches, respectively. It is equipped with a 10 HP spindle motor providing a maximum spindle speed of 8,000 RPM. The work table measures 35 inches in length and 19 inches in width. Further technical specifications include a BT-40 spindle taper, a 20-tool automatic tool changer, and rapid traverse rates of 500 inches per minute for the X and Y axes, and 400 inches per minute for the Z axis. The machine is controlled by a Prototrak SMX system.
