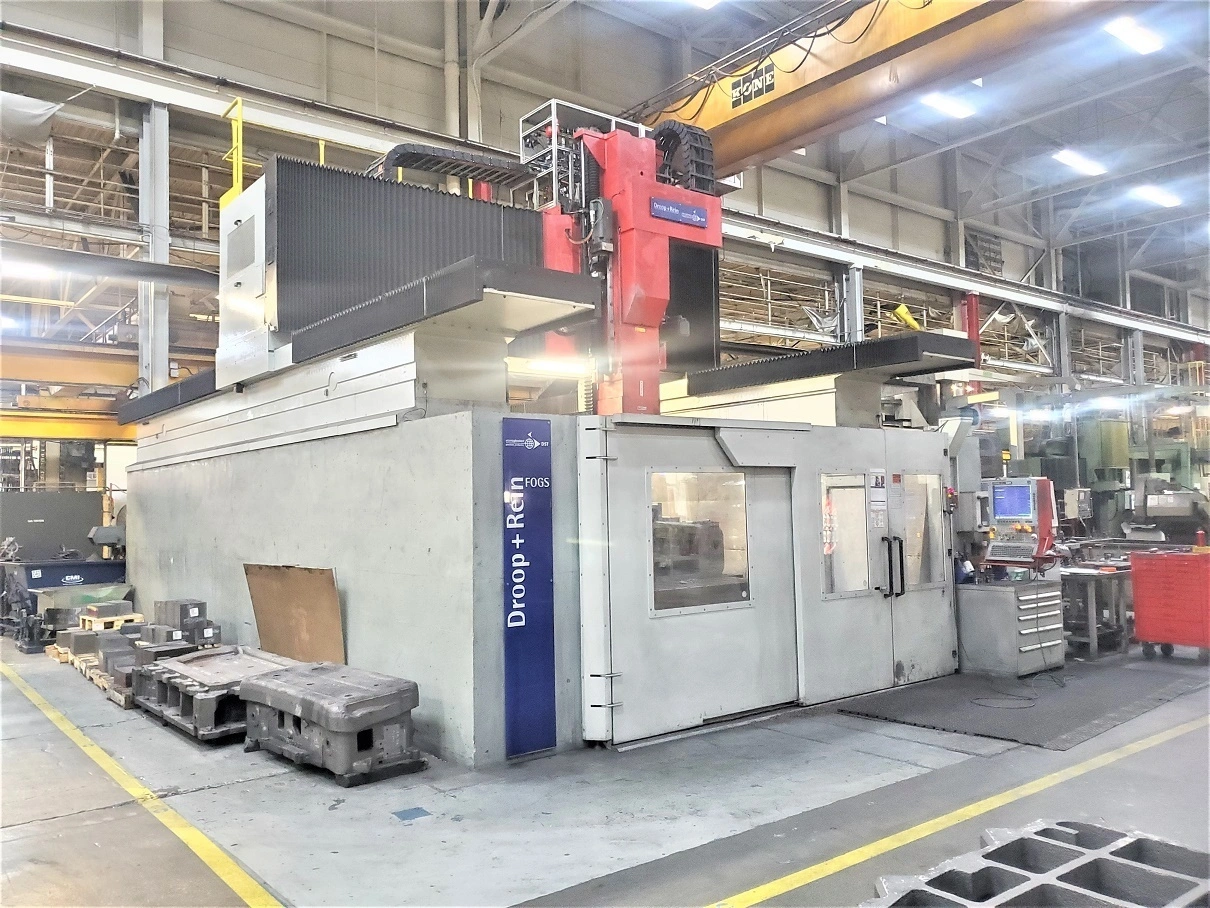

2013 DROOP & REIN FOGS 3068C, CNC VMC, 5 AXIS, 267IN X-TRAVEL, 26 HP SPINDLE, 30 TOOL

THE DROOP & REIN FOGS 3068C IS A 5-AXIS GANTRY STYLE CNC VERTICAL MACHINING CENTER, WITH AN APPROXIMATE WEIGHT OF 209,000 LBS. IT FEATURES AN X-AXIS TRAVEL OF 267 INCHES, A Y-AXIS TRAVEL OF 118 INCHES, AND A Z-AXIS TRAVEL OF 59 INCHES. THE MACHINE IS EQUIPPED WITH A C-AXIS PROVIDING N X 360-DEGREE ROTATION AND A B-AXIS OFFERING +/- 115-DEGREE ARTICULATION. THE CLAMPING PLATE MEASURES 118 INCHES BY 236 INCHES. HORIZONTAL CLEARANCE BETWEEN COLUMNS IS 161.02 INCHES (4,090 MM), WITH A VERTICAL CLEARANCE OF 94 INCHES. FEED RATES FOR THE X, Y, AND Z AXES ARE UP TO 1181.1 INCHES PER MINUTE (30 M/MIN), WITH RAPID FEED RATES UP TO 1574.8 INCHES PER MINUTE (40 M/MIN). C-AXIS AND B-AXIS FEED AND RAPID RATES ARE 4,320 DEGREES PER MINUTE. POWER IS SUPPLIED BY A 26 HP MILLING SPINDLE MOTOR, WITH ELECTRICAL REQUIREMENTS OF 600V, 3-PHASE, 60HZ, 115 AMPS. THE SYSTEM INTEGRATES A FIDIA C20 CNC CONTROL AND A 30-TOOL AUTOMATIC TOOL CHANGER. ADDITIONAL FEATURES INCLUDE A FORK-TYPE HEAD WITH HYDRAULIC CLAMPING FOR VARIOUS MOTOR MILLING SPINDLES, A TEMPERATURE SENSOR FOR LENGTH COMPENSATION, AND A CONTINUOUS SWIVEL B-AXIS MOTOR MILLING SPINDLE.
