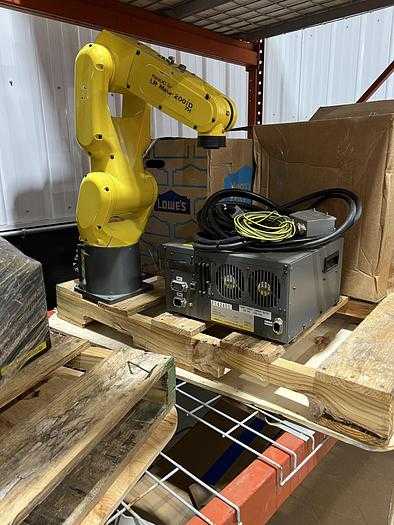

2013 FANUC LR Mate 200ID/7H CNC Robot, 7kg Payload, 717mm Reach, R-30iB Controller

The 2013 FANUC LR Mate 200ID/7H is a compact five-axis articulated CNC robot designed for high-speed performance in applications such as assembly, dispensing, machine loading, machine tending, material removal, order picking, packaging, and pick and place operations. It features a 7 kg payload capacity, a horizontal reach of 717.00 mm, and a repeatability of ±0.0200 mm. The robot has a mass of 24.00 kg and supports floor, inverted, and angle mounting configurations. It is equipped with a FANUC System R-30iB Mate Open Air controller, connection cables, and a teach pendant. Axis motion speeds are 450°/s for J1, 380°/s for J2, 520°/s for J3, 545°/s for J4, and 1500°/s for J5. The motion range for the axes is J1 +340° to -360°, J2 ±245°, J3 ±420°, J4 ±250°, and J5 ±720°. The system is designed to provide high speed and performance within a small footprint, offering a versatile solution for various automation needs.
