2013 FANUC LR Mate 200ID/7H CNC Robot, 7kg Payload, 717mm Reach, R-30iB Controller

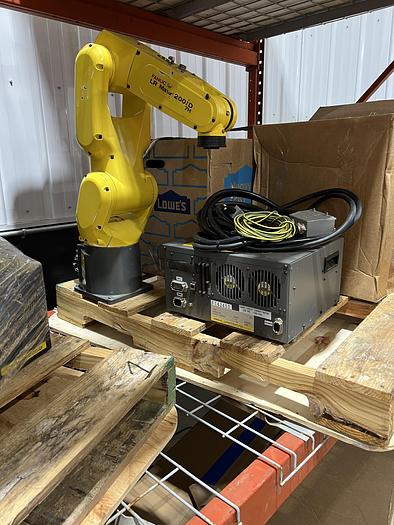

The 2013 FANUC LR Mate 200ID/7H is a five-axis articulated CNC robot designed for high-speed performance in compact workspaces. It features a 7.00 kg payload capacity, a horizontal reach of 717.00 mm, and a repeatability of ±0.0200 mm. With a mass of 24.00 kg, the robot supports floor, inverted, and angle mounting configurations. The system is equipped with a FANUC R-30iB Mate Open Air controller, connection cables, and a teach pendant. Technical specifications for axis motion speeds are 450°/s for J1, 380°/s for J2, 520°/s for J3, 545°/s for J4, and 1500°/s for J5. The motion range for the axes is J1 from +340° to -360°, J2 ±245°, J3 ±420°, J4 ±250°, and J5 ±720°. This model is suitable for various applications including assembly, dispensing, machine loading and tending, material removal, order picking, packaging, and pick and place operations.
