2014 FANUC M-900iA/350 Articulated Robot, 350kg Payload, 2650mm Reach, R-30iB Controller

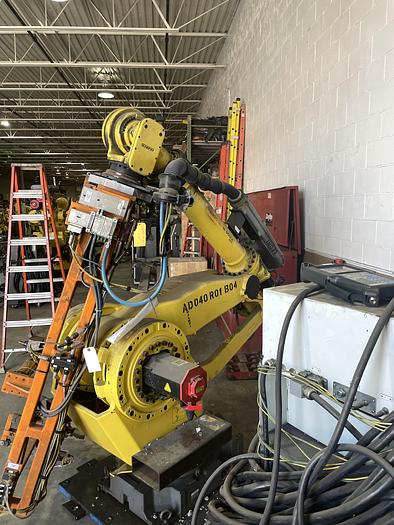

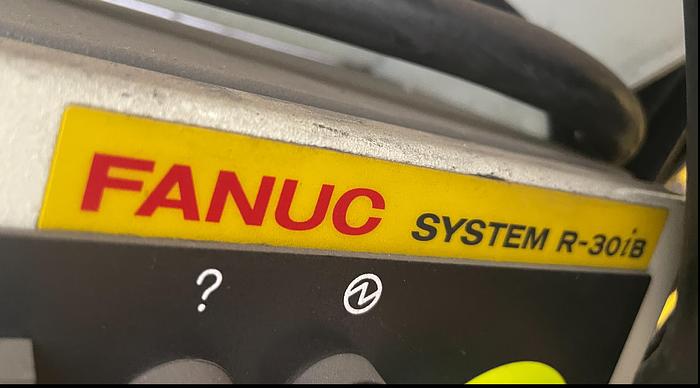

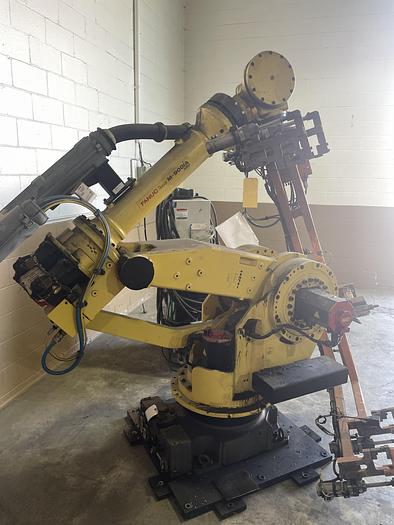

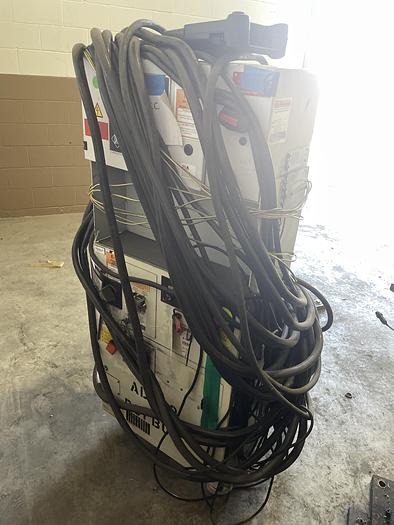

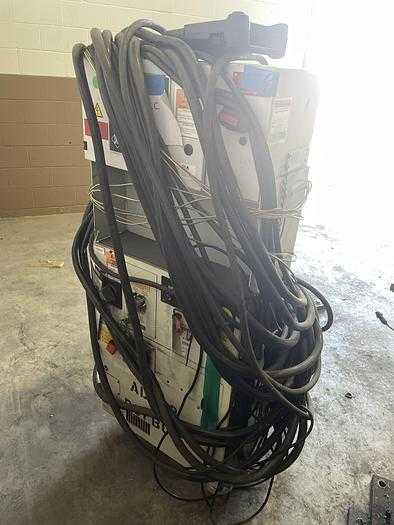

The 2014 FANUC M-900iA/350 is a six-axis articulated robot designed for heavy material handling, pick and place, deburring, and spot welding applications. It features a 350 kg payload capacity, a 2650 mm horizontal reach, and a repeatability of ±0.3 mm. The robot has a mass of 1720 kg and supports floor, inverted, and angle mounting configurations. Axis motion speeds are 100°/s for J1, 95°/s for J2 and J3, 105°/s for J4 and J5, and 170°/s for J6. The motion range for the axes is J1 ±360°, J2 ±150°, J3 ±223°, J4 ±720°, J5 ±250°, and J6 ±720°. The system is equipped with a FANUC R-30iB controller, a FANUC color iPendant, 30-meter connection cables, DeviceNet, and internet IP capability. The unit includes a multi-tap input transformer supporting 380V, 440V, and 575V. Part of the M series lineup, the M-900iA/350 is engineered for high inertia and wrist movements suitable for heavy-duty industrial automation.
