2020 Schmidt 509 Hydraulic Roll Marking Machine, 1.45 Ton, 1/2" Stroke, 8.5" x 6.75" Table

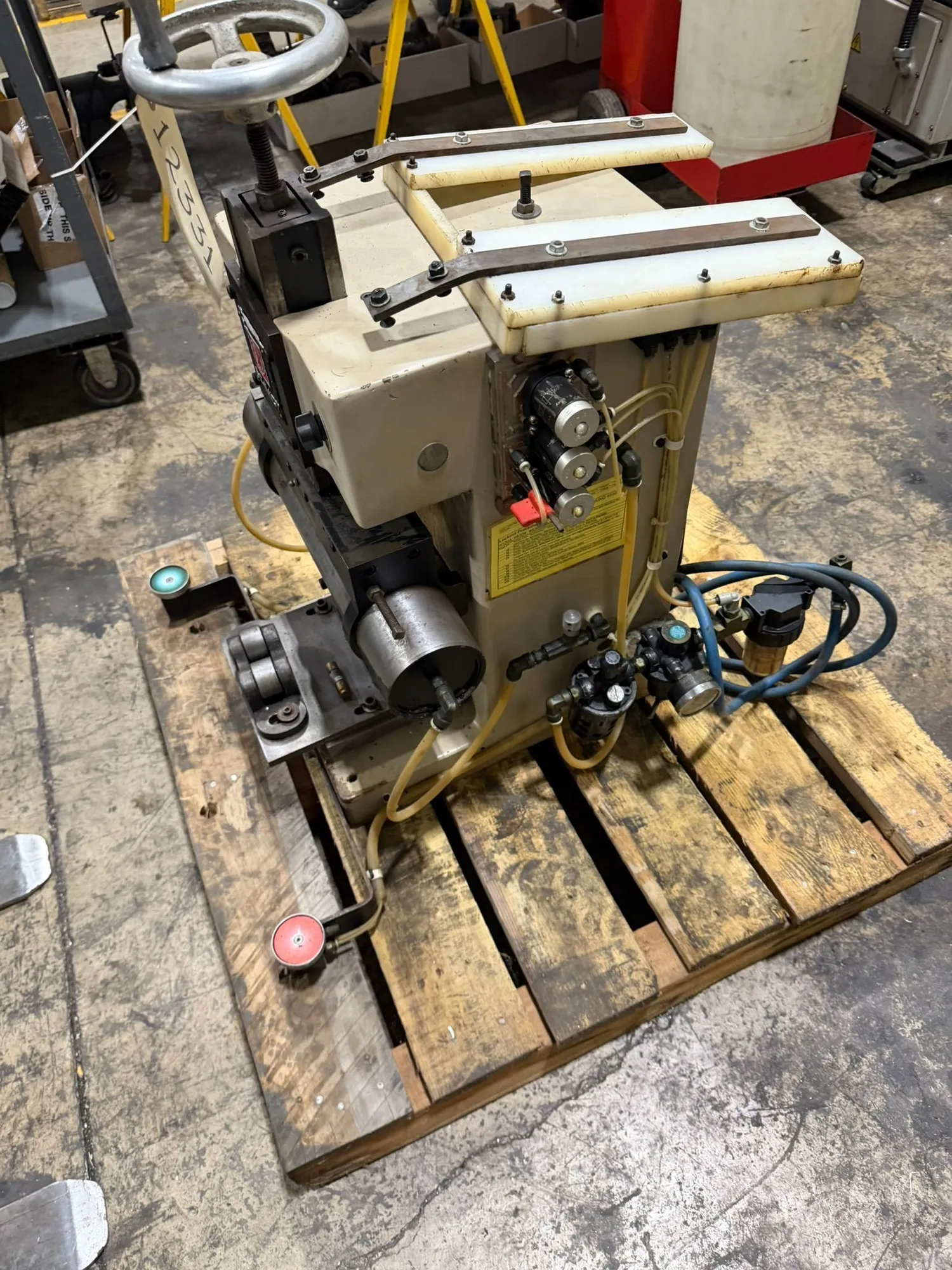

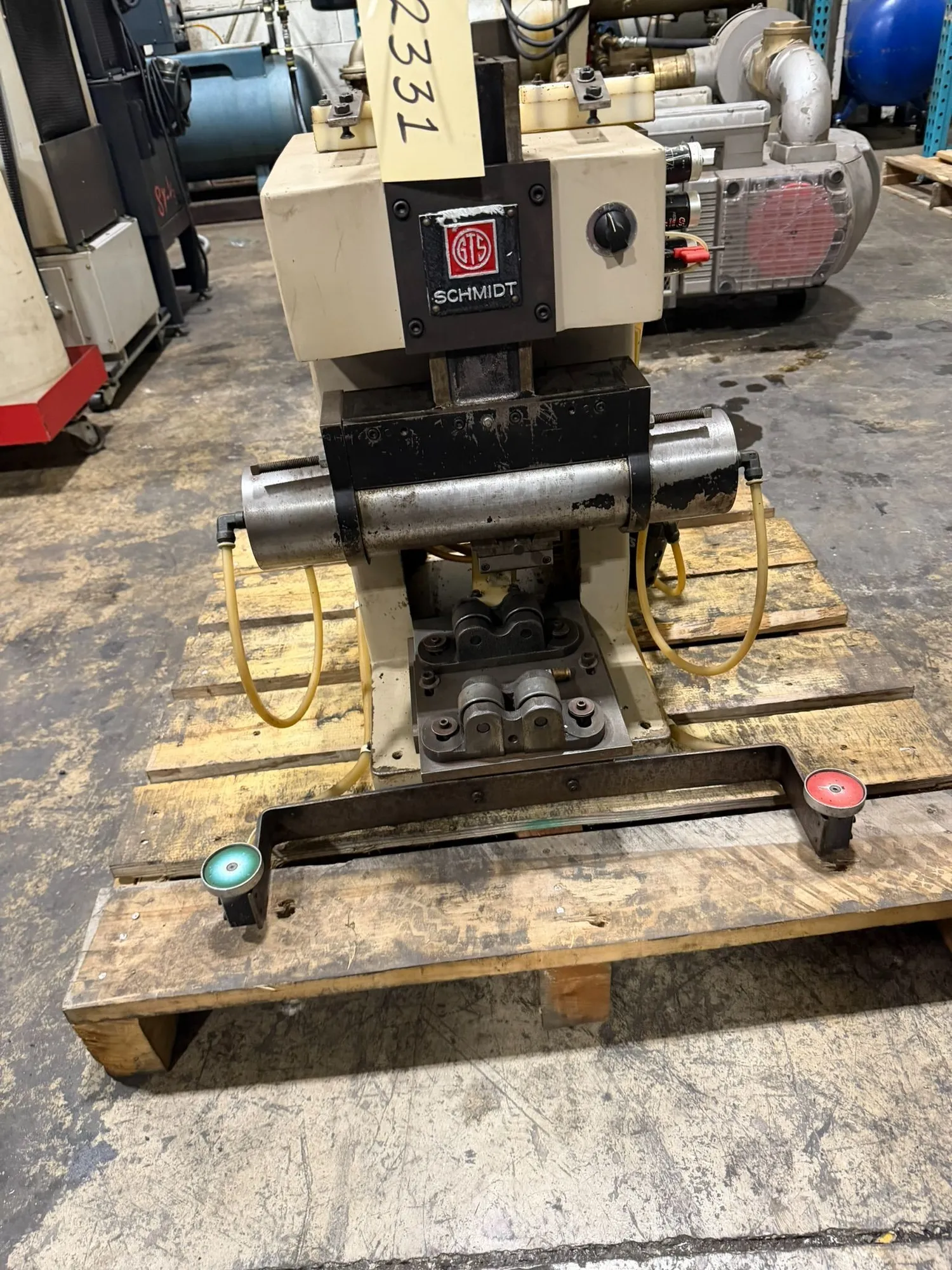

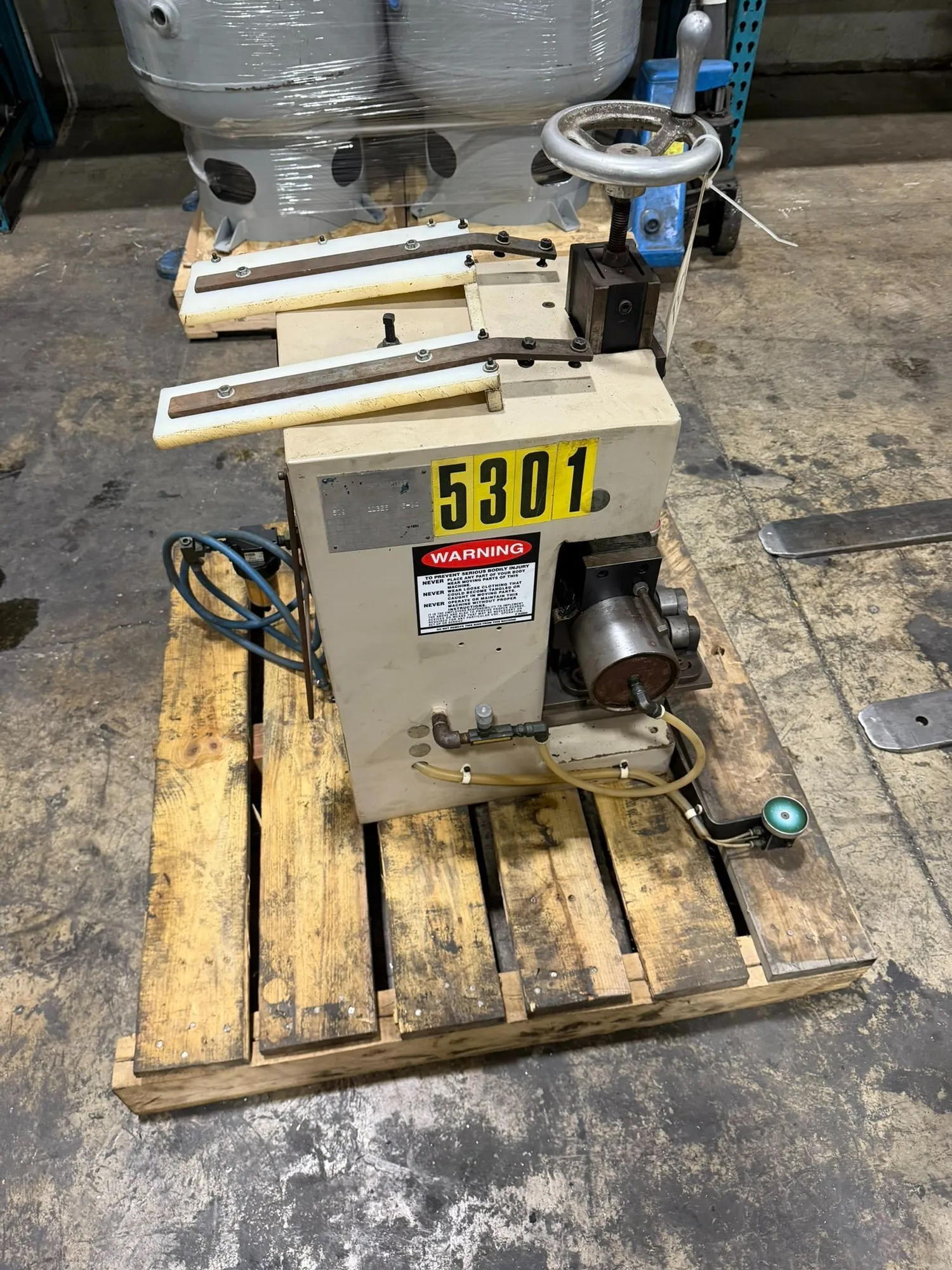

The Schmidt model 509 is a hydraulic roll marking machine designed for precision marking applications. The unit provides a maximum ram pressure of 1.45 tons and a stroke of 1/2 inch, with a working pressure range of 20 to 100 PSI. It features a vertical ram adjustment of approximately 3-3/8 inches and an adjustable cross slide ranging from 0 to 3.5 inches. The machine has a die space between 4.5 and 7.5 inches and a throat depth of 3-7/16 inches. The table measures 8.5 inches wide by 6.75 inches deep. The unit weighs approximately 200 lbs and has overall dimensions of 22 inches in length, 18 inches in width, and 35 inches in height.
