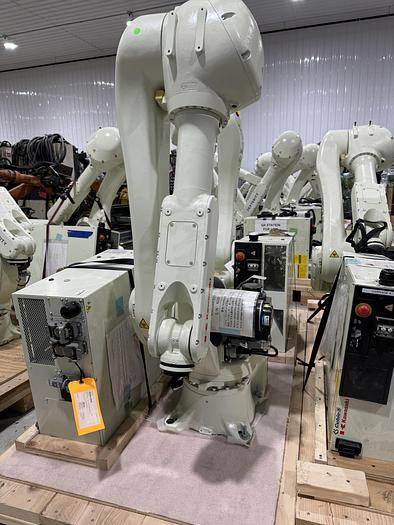

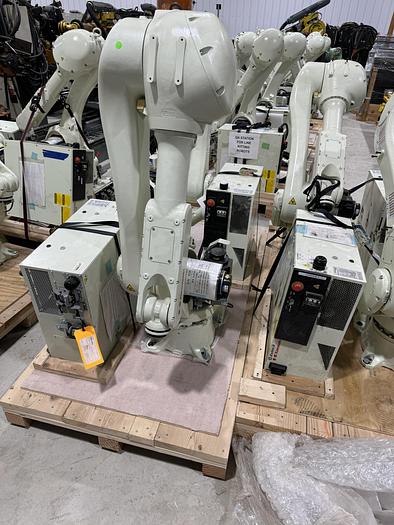

2021 KAWASAKI RS020N ARTICULATED ROBOT, 20KG PAYLOAD, 1725MM REACH, E01 CONTROLLER

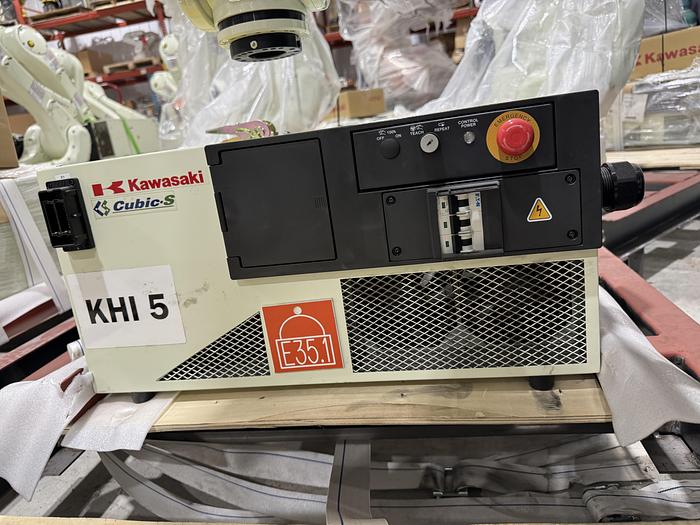

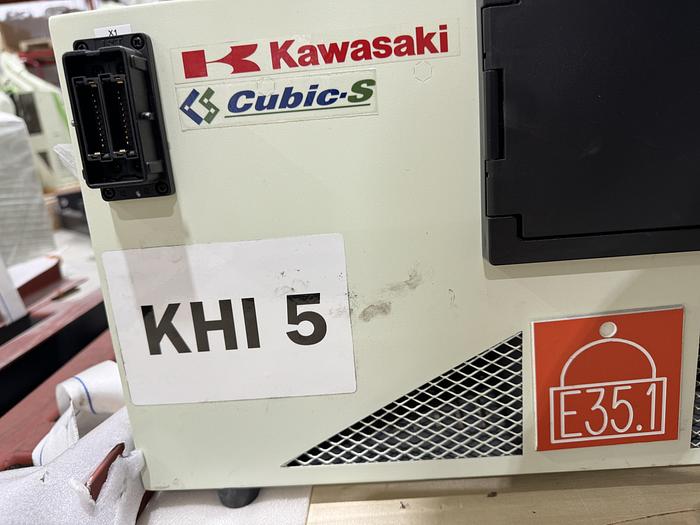

THE 2021 KAWASAKI RS020N IS A HIGH-SPEED, SIX-AXIS ARTICULATED INDUSTRIAL ROBOT FROM THE R SERIES, DESIGNED FOR SMALL TO MEDIUM-DUTY APPLICATIONS INCLUDING MATERIAL HANDLING, MACHINE TENDING, WELDING, AND ASSEMBLY. IT FEATURES A 20 KG PAYLOAD CAPACITY AND A MAXIMUM HORIZONTAL REACH OF 1,725 MM, WITH A REPEATABILITY OF ±0.04 MM. THE ROBOT’S LIGHTWEIGHT ARM DESIGN AND HIGH-OUTPUT MOTORS ALLOW FOR A MAXIMUM LINEAR SPEED OF 11,500 MM/S. MOTION RANGES FOR THE AXES INCLUDE ±180° FOR JT1, +155° TO -105° FOR JT2, +150° TO -163° FOR JT3, ±270° FOR JT4, ±145° FOR JT5, AND ±360° FOR JT6. MAXIMUM AXIS SPEEDS ARE 190°/S FOR JT1, 205°/S FOR JT2, 210°/S FOR JT3, 400°/S FOR JT4, 360°/S FOR JT5, AND 610°/S FOR JT6. THE UNIT HAS A MASS OF 230 KG AND SUPPORTS FLOOR OR CEILING MOUNTING. IT IS EQUIPPED WITH AN E01 CONTROLLER FEATURING CUBIC-S SAFETY TECHNOLOGY, A TEACH PENDANT, AND CONNECTION CABLES.
