Easy-Laser E420, Shaft Align, 1-Axis Psd, 10 M Distance, 0.001 mm Resolution, IP65, Li-Ion Batt

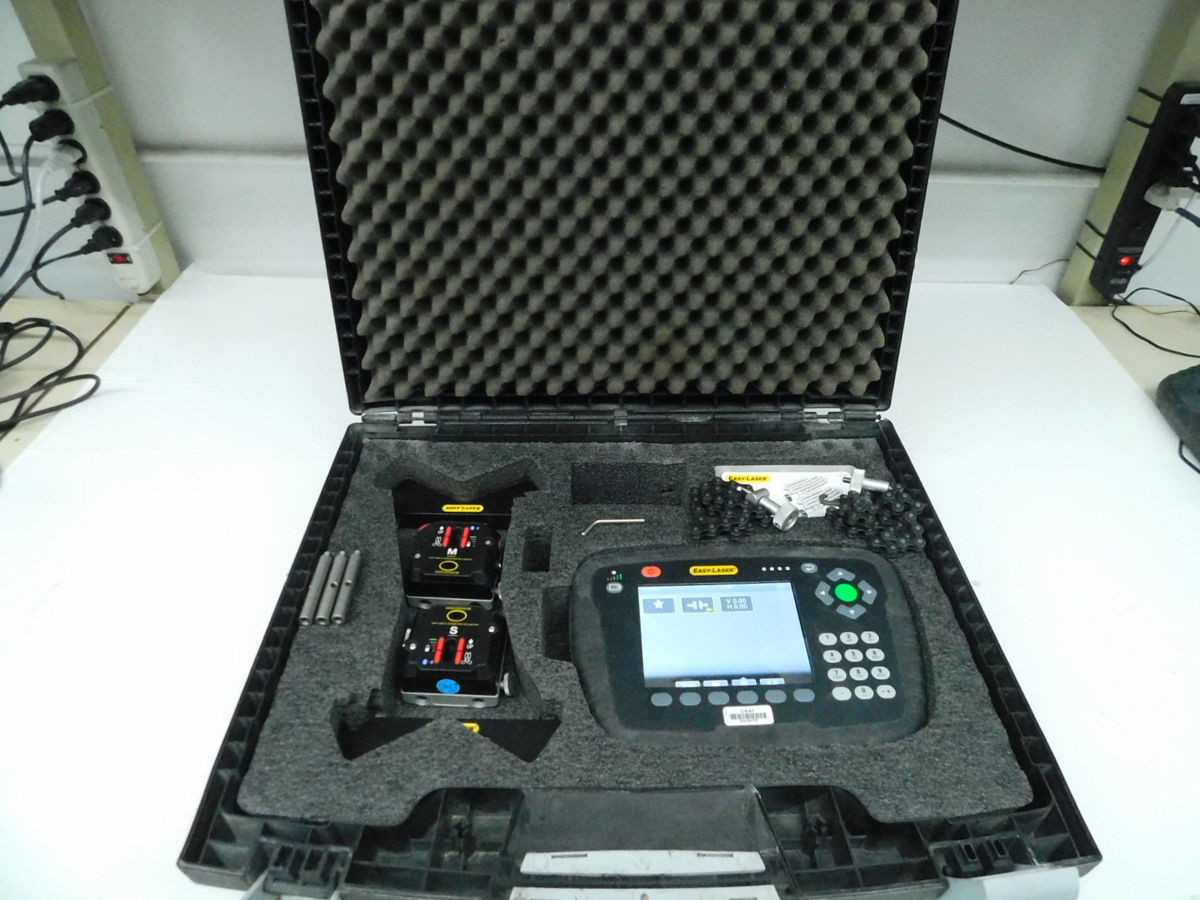

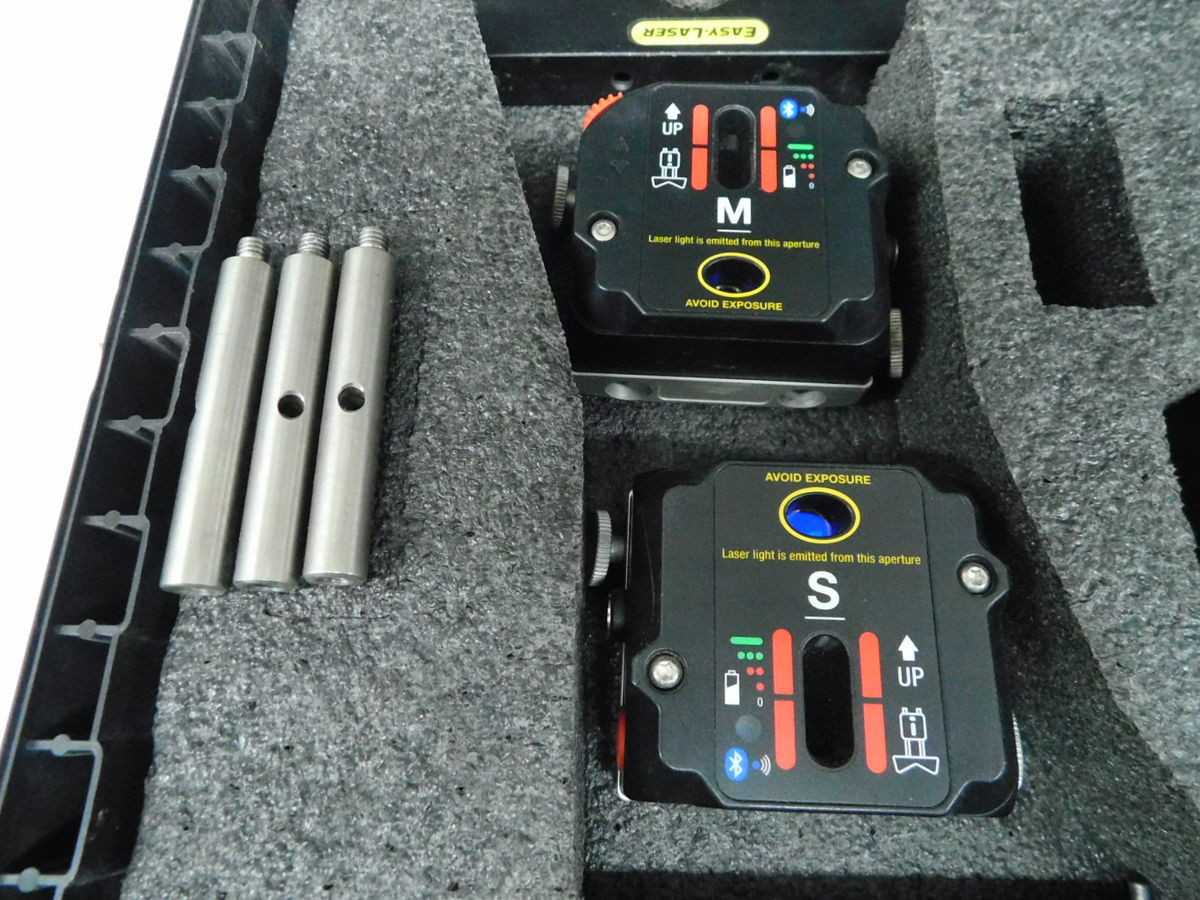

The Easy-Laser E420 is a shaft alignment system categorized within lab lasers photonics. It operates using two laser-based sensor units, each featuring a 1-axis Position Sensitive Detector (PSD) with a 10x10 mm measurement area. The integrated diode lasers emit at a wavelength typically between 635-670 nm, conforming to Class 2 laser safety. This system supports precise alignment measurements over distances up to 10 meters (33 feet) with a reported resolution of 0.001 mm (0.05 mil). Wireless communication between the sensor units and the rugged 5.7-inch VGA color display unit is established via integrated Bluetooth. Core functionalities include horizontal machine alignment, soft foot analysis, and thermal growth compensation. Both the sensor units and the display unit are designed with an IP65 protection class and are powered by rechargeable Li-Ion batteries.
