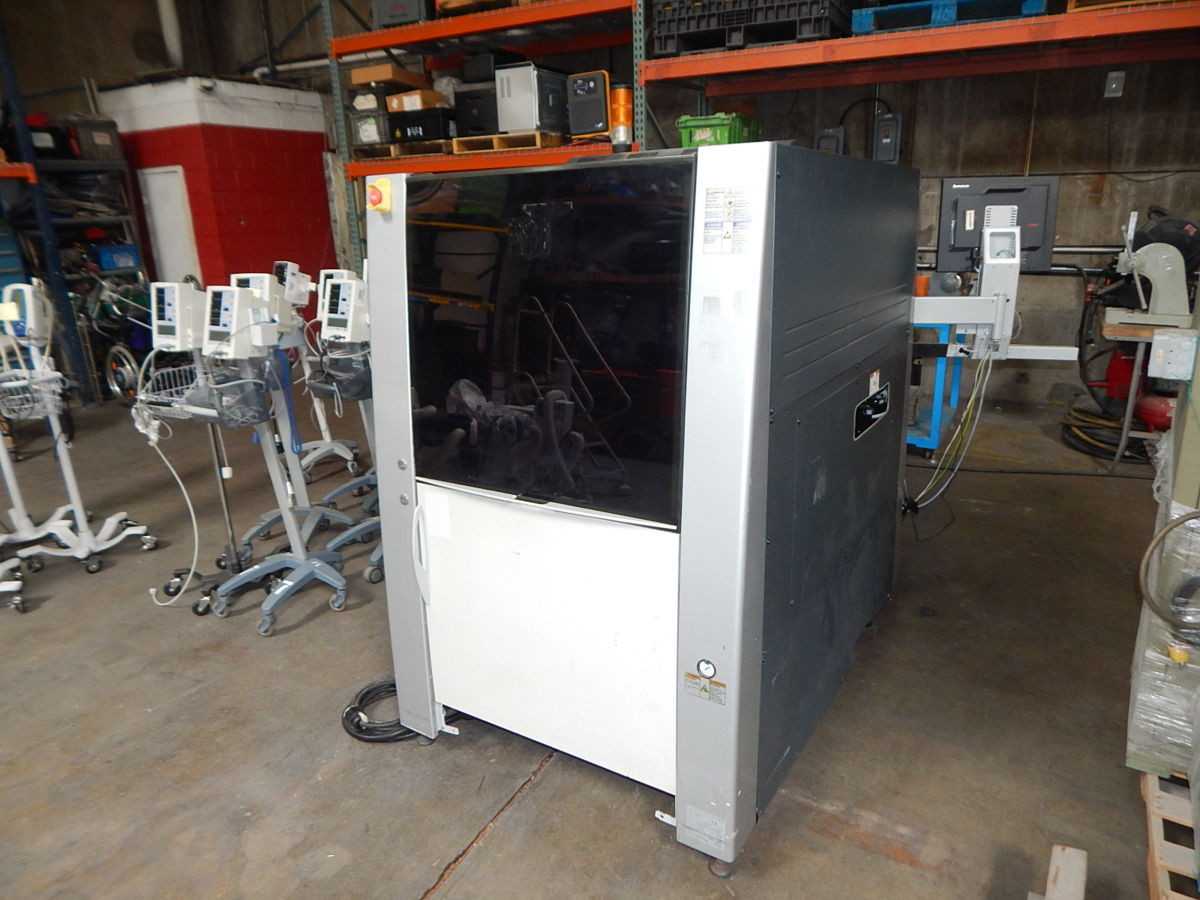

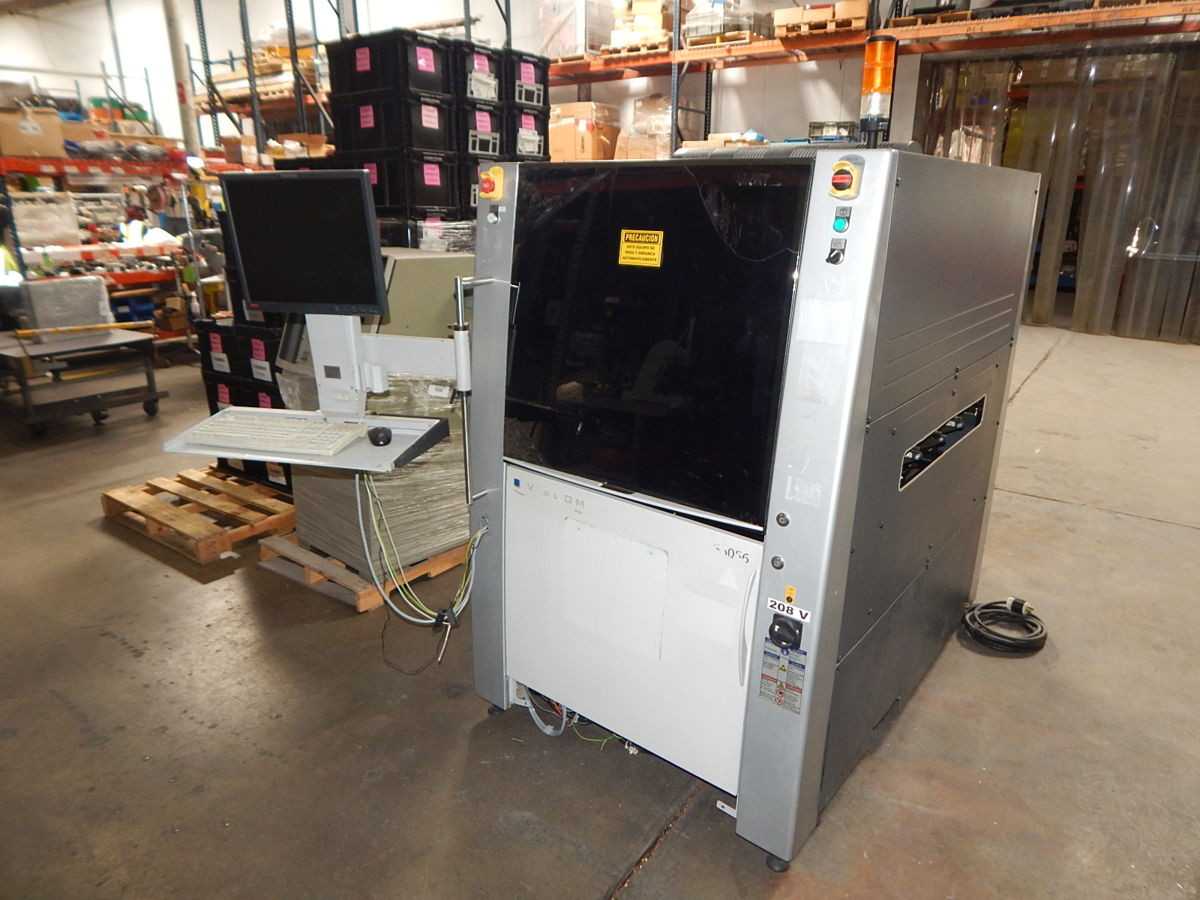

Viscom 6056 DS1, PCB Assembly, 3D Aoi System, 8 Angular + 1 Ortho View, 220V 3PH Power

The Viscom 6056 DS1 is a high-end Automated Optical Inspection (AOI) and 3D AOI system designed for comprehensive quality control in PCB assembly. It integrates the Viscom XM camera module, featuring a multi-camera setup with 8 angular views and one orthogonal view to enable detailed inspection of solder joints, component presence, polarity, and potential defects. The system utilizes advanced 3D measurement technology to provide precise height and coplanarity data for components and solder pads. Engineered for high inspection speed and accuracy, it effectively identifies a broad range of defects including opens, shorts, lifted leads, and misalignments. The unit operates on a 220 VAC, 3 phase power supply.
