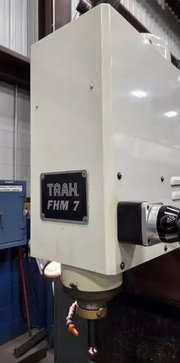

SWI TRAK FHM7 3 Axis CNC Vertical Bed Mill With ProtoTRAK SMX Controller, 7.5HP

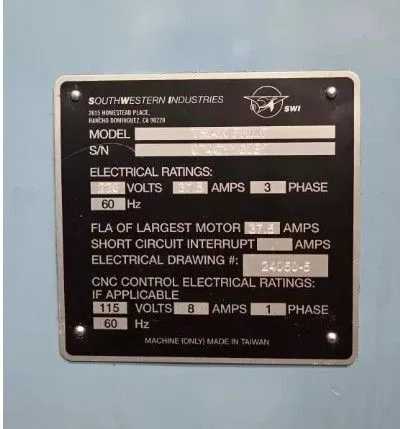

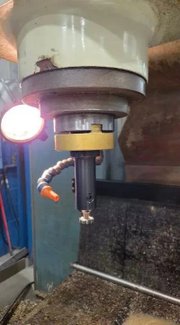

Southwestern Industries FHM 7 CNC Vertical Bed Mill, equipped with Proto-Trak SMX Control, Windows OS, and advanced features. Table: 76" x 14", X-axis: 60", 7.5HP, spindle speed: 200-5000 RPM, max workpiece weight: 2,200 lbs. Table Size-W - 14" Table Size-L - 76" Control - CNC (ProtoTRAK SMX Controller) Dimensions - 110.5” x 93.75” x 101” Weight - 8000lbs 2007 TRAK DPM FHM7 Bed Mill with the ProtoTRAK SMX CNC Controller Machine specifications • Table size – 76” x 14” • T-slots (number x width x pitch) – 3 x 63” x 2.48” • Travel (X, Y, Z axis) – 60” x 23” x 20.5” • Quill diameter – 5.06” • Spindle taper – NMTB 40 • Spindle speed range RPM – 200-5000 • Spindle center to column face – 23” • Spindle motor power – 7.5 HP • Power requirement – 3 phase, 220V, 60 HZ; 37.5 FLA • Power Requirement Control – 110V; 1 phase; 15A • Maximum weight of workpiece – 2200 lbs. • Height of table from bottom of bed – 38.25” • Maximum spindle nose to table – 24” • Minimum height – 95.5” • Maximum height – 101” • Width of machine including table – 110.5” • Length with electric box door closed – 93.75” • Overall width including full table travel – 171.65” • Overall length with electrical door open – 119.5” • Footprint – 42.52” x 63” • Way surface – dovetail X axis; square ways Y and Z axis • Weight (approximate) net – 7650 lbs. • Weight (approximate) shipping – 7975 lbs. • Maximum work capacities – Drilling (mild steel) max. dia. 1.00”; tapping, 5/8”; milling capacities, 7 inch3/min • Way surfaces hardened and ground • Turcite coating on all slide ways Standard Features • Automatic lubrication pump • Auxiliary function hardware • Limit switches • Programming of Auxiliary Functions • Programmable Spindle Control TRAKing/Electronic Handwheels • Electronic Handwheels on X and Y (replaces the mechanical handwheels) • TRAKing of programs during program run • Go To Dimensions • Selectable Fine/Coarse handwheel resolution Machine Options • Glass scales for table and saddle • Power drawbar • Remote stop/go switch • Coolant pump • Spray coolant • Table guard • Halogen work lamp • Chip pan / splash shield • Vise ProtoTRAK SMX System Specifications (O) indicates optional feature ProtoTRAK System Hardware • ProtoTRAK SMX CNC • Two- or three-axis CNC, 3-axis DRO • Real handwheels for manual operation • 10.4” color active-matrix screen • Industrial-grade Pentium® processor • 1 GB Ram • 4 USB connectors • Override of program feedrate • LED status lights built into display • RJ45 Port and Ethernet card (O) • Override of program spindle speed • USB Thumb drive flash memory 512 or more (O) • Uncluttered front panel with few hard keys • Ballscrew and motor assembly installed on quill • Electronic quill handwheel Software Features – general operation • Clear, uncluttered screen display • Prompted data inputs • English language – no codes • Soft keys - change within context • Windows® operating system • Selectable two or three-axis CNC • Color graphics with adjustable views • Inch/mm selectable • Convenient modes of operation DRO Mode features • Incremental and absolute dimensions • Jog at rapid with override • Powerfeed X, Y or Z • Do One CNC canned cycle • Teach-in of manual moves • Servo return to 0 absolute • Tool offsets from library • Go To Dimensions (O) • Fine/Course handwheel resolution Program Mode features • Auto Geometry Engine (O) • Geometry-based programming • 3-axis geometry programming (O) • Tool Path programming (O) • Scaling of print data (O) • Multiple fixture offsets (O) • Programming of Auxiliary Functions • Event Comments (O) • Three-axis Geometry conversational programming (O) • Incremental and absolute dimensions • Automatic diameter cutter comp • Circular interpolation • Linear interpolation • Look –graphics with a single button push • List step – graphics with programmed events displayed • Alphanumeric program names • Program data editing • Program pause • Conrad – automatic corner radius • Math helps with graphical interface • Auto load of math solutions • Tool step over adjustable for pocket routines • Pocket bottom finish pass • Selectable ramp or plunge cutter entry • Subroutine repeat of programmed events • Nesting • Rotate about Z axis for skewing data • Mirror of programmed events (O) • Copy (O) • Copy rotate (O) • Copy mirror (O) Canned cycles • Position • Drill • Bolt Hole • Mill • Arc • Circle pocket • Rectangular pocket • Irregular Pocket (O) • Circular profile • Rectangular profile • Irregular Profile(O) • Circle Island (O) • Rectangular Island (O) • Irregular Island(O) • Helix (O) • Thread milling (O) • Engrave(O) • Tapping(O) • Face Mill (O) Edit mode Features • Delete events • Erase program • Spreadsheet editing (O) • Global data change (O) • G-Code editor (O) • Clipboard to copy events between programs (O) Set Up Mode Features • Program diagnostics • Advanced tool library • Tool names • Tool length offset with modifiers • Advanced diagnostic routines • Software travel limits • Tool path graphics with adjustable views • Program run time estimation clock (O) Run Mode Features • TRAKing • Trial run at rapid • 3D CAM file program run • 3D G code file run with tool comp • Real time run graphics with tool icon • Countdown clock to next pause or tool change (O) Program In/Out Mode Features • Program storage to USB Flash drive • CAM program converter • Converter for prior-generation ProtoTRAK programs • DXF/DWG file converter (O) • Selection of file storage locations (O) • Automatic file back-up routine (O) • Preview graphics for unopened files (O) • Networking (O) Control Options Advanced Features with Verify Option • Verify – see a 3-D model machined before cutting chips • Auto Geometry Engine ™ • 3-axis conversational programming • Additional Canned Cycles: - Irregular Pocket - Circle Island - Rectangular Island - Irregular Island - Irregular Profile - Helix - Thread milling - Engrave - Tapping - Face Mill • G-Code editor • Countdown clock to next pause or tool change • Total program time estimator • Spreadsheet editing • Global data change • Scaling of print data • Multiple fixture offsets • Event comments • Tool path conversational programming • Mirror of programmed events • Copy with or without offsets • Copy Rotate • Copy Mirror • Clipboard to copy events between programs Networking Option • Networking via RJ 45 port The DXF File Converter Option • Import and convert CAD data into ProtoTRAK programs • DXF or DWG files • Chaining • Automatic Gap Closing • Layer control • Easy, prompted process you can do right at the machine CAM Out Converter Option • Save ProtoTRAK files as CAM files for running on different controls 2007 TRAK DPM FHM7 Bed Mill with the ProtoTRAK SMX CNC Controller Machine specifications • Table size – 76” x 14” • T-slots (number x width x pitch) – 3 x 63” x 2.48” • Travel (X, Y, Z axis) – 60” x 23” x 20.5” • Quill diameter – 5.06” • Spindle taper – NMTB 40 • Spindle speed range RPM – 200-5000 • Spindle center to column face – 23” • Spindle motor power – 7.5 HP • Power requirement – 3 phase, 220V, 60 HZ; 37.5 FLA • Power Requirement Control – 110V; 1 phase; 15A • Maximum weight of workpiece – 2200 lbs. • Height of table from bottom of bed – 38.25” • Maximum spindle nose to table – 24” • Minimum height – 95.5” • Maximum height – 101” • Width of machine including table – 110.5” • Length with electric box door closed – 93.75” • Overall width including full table travel – 171.65” • Overall length with electrical door open – 119.5” • Footprint – 42.52” x 63” • Way surface – dovetail X axis; square ways Y and Z axis • Weight (approximate) net – 7650 lbs. • Weight (approximate) shipping – 7975 lbs. • Maximum work capacities – Drilling (mild steel) max. dia. 1.00”; tapping, 5/8”; milling capacities, 7 inch3/min • Way surfaces hardened and ground • Turcite coating on all slide ways Standard Features • Automatic lubrication pump • Auxiliary function hardware • Limit switches • Programming of Auxiliary Functions • Programmable Spindle Control TRAKing/Electronic Handwheels • Electronic Handwheels on X and Y (replaces the mechanical handwheels) • TRAKing of programs during program run • Go To Dimensions • Selectable Fine/Coarse handwheel resolution Machine Options • Glass scales for table and saddle • Power drawbar • Remote stop/go switch • Coolant pump • Spray coolant • Table guard • Halogen work lamp • Chip pan / splash shield • Vise ProtoTRAK SMX System Specifications (O) indicates optional feature ProtoTRAK System Hardware • ProtoTRAK SMX CNC • Two- or three-axis CNC, 3-axis DRO • Real handwheels for manual operation • 10.4” color active-matrix screen • Industrial-grade Pentium® processor • 1 GB Ram • 4 USB connectors • Override of program feedrate • LED status lights built into display • RJ45 Port and Ethernet card (O) • Override of program spindle speed • USB Thumb drive flash memory 512 or more (O) • Uncluttered front panel with few hard keys • Ballscrew and motor assembly installed on quill • Electronic quill handwheel Software Features – general operation • Clear, uncluttered screen display • Prompted data inputs • English language – no codes • Soft keys - change within context • Windows® operating system • Selectable two or three-axis CNC • Color graphics with adjustable views • Inch/mm selectable • Convenient modes of operation DRO Mode features • Incremental and absolute dimensions • Jog at rapid with override • Powerfeed X, Y or Z • Do One CNC canned cycle • Teach-in of manual moves • Servo return to 0 absolute • Tool offsets from library • Go To Dimensions (O) • Fine/Course handwheel resolution Program Mode features • Auto Geometry Engine (O) • Geometry-based programming • 3-axis geometry programming (O) • Tool Path programming (O) • Scaling of print data (O) • Multiple fixture offsets (O) • Programming of Auxiliary Functions • Event Comments (O) • Three-axis Geometry conversational programming (O) • Incremental and absolute dimensions • Automatic diameter cutter comp • Circular interpolation • Linear interpolation • Look –graphics with a single button push • List step – graphics with programmed events displayed • Alphanumeric program names • Program data editing • Program pause • Conrad – automatic corner radius • Math helps with graphical interface • Auto load of math solutions • Tool step over adjustable for pocket routines • Pocket bottom finish pass • Selectable ramp or plunge cutter entry • Subroutine repeat of programmed events • Nesting • Rotate about Z axis for skewing data • Mirror of programmed events (O) • Copy (O) • Copy rotate (O) • Copy mirror (O) Canned cycles • Position • Drill • Bolt Hole • Mill • Arc • Circle pocket • Rectangular pocket • Irregular Pocket (O) • Circular profile • Rectangular profile • Irregular Profile(O) • Circle Island (O) • Rectangular Island (O) • Irregular Island(O) • Helix (O) • Thread milling (O) • Engrave(O) • Tapping(O) • Face Mill (O) Edit mode Features • Delete events • Erase program • Spreadsheet editing (O) • Global data change (O) • G-Code editor (O) • Clipboard to copy events between programs (O) Set Up Mode Features • Program diagnostics • Advanced tool library • Tool names • Tool length offset with modifiers • Advanced diagnostic routines • Software travel limits • Tool path graphics with adjustable views • Program run time estimation clock (O) Run Mode Features • TRAKing • Trial run at rapid • 3D CAM file program run • 3D G code file run with tool comp • Real time run graphics with tool icon • Countdown clock to next pause or tool change (O) Program In/Out Mode Features • Program storage to USB Flash drive • CAM program converter • Converter for prior-generation ProtoTRAK programs • DXF/DWG file converter (O) • Selection of file storage locations (O) • Automatic file back-up routine (O) • Preview graphics for unopened files (O) • Networking (O) Control Options Advanced Features with Verify Option • Verify – see a 3-D model machined before cutting chips • Auto Geometry Engine ™ • 3-axis conversational programming • Additional Canned Cycles: - Irregular Pocket - Circle Island - Rectangular Island - Irregular Island - Irregular Profile - Helix - Thread milling - Engrave - Tapping - Face Mill • G-Code editor • Countdown clock to next pause or tool change • Total program time estimator • Spreadsheet editing • Global data change • Scaling of print data • Multiple fixture offsets • Event comments • Tool path conversational programming • Mirror of programmed events • Copy with or without offsets • Copy Rotate • Copy Mirror • Clipboard to copy events between programs Networking Option • Networking via RJ 45 port The DXF File Converter Option • Import and convert CAD data into ProtoTRAK programs • DXF or DWG files • Chaining • Automatic Gap Closing • Layer control • Easy, prompted process you can do right at the machine CAM Out Converter Option • Save ProtoTRAK files as CAM files for running on different controls 2007 TRAK DPM FHM7 Bed Mill with the ProtoTRAK SMX CNC Controller Machine specifications • Table size – 76” x 14” • T-slots (number x width x pitch) – 3 x 63” x 2.48” • Travel (X, Y, Z axis) – 60” x 23” x 20.5” • Quill diameter – 5.06” • Spindle taper – NMTB 40 • Spindle speed range RPM – 200-5000 • Spindle center to column face – 23” • Spindle motor power – 7.5 HP • Power requirement – 3 phase, 220V, 60 HZ; 37.5 FLA • Power Requirement Control – 110V; 1 phase; 15A • Maximum weight of workpiece – 2200 lbs. • Height of table from bottom of bed – 38.25” • Maximum spindle nose to table – 24” • Minimum height – 95.5” • Maximum height – 101” • Width of machine including table – 110.5” • Length with electric box door closed – 93.75” • Overall width including full table travel – 171.65” • Overall length with electrical door open – 119.5” • Footprint – 42.52” x 63” • Way surface – dovetail X axis; square ways Y and Z axis • Weight (approximate) net – 7650 lbs. • Weight (approximate) shipping – 7975 lbs. • Maximum work capacities – Drilling (mild steel) max. dia. 1.00”; tapping, 5/8”; milling capacities, 7 inch3/min • Way surfaces hardened and ground • Turcite coating on all slide ways Standard Features • Automatic lubrication pump • Auxiliary function hardware • Limit switches • Programming of Auxiliary Functions • Programmable Spindle Control TRAKing/Electronic Handwheels • Electronic Handwheels on X and Y (replaces the mechanical handwheels) • TRAKing of programs during program run • Go To Dimensions • Selectable Fine/Coarse handwheel resolution Machine Options • Glass scales for table and saddle • Power drawbar • Remote stop/go switch • Coolant pump • Spray coolant • Table guard • Halogen work lamp • Chip pan / splash shield • Vise ProtoTRAK SMX System Specifications (O) indicates optional feature ProtoTRAK System Hardware • ProtoTRAK SMX CNC • Two- or three-axis CNC, 3-axis DRO • Real handwheels for manual operation • 10.4” color active-matrix screen • Industrial-grade Pentium® processor • 1 GB Ram • 4 USB connectors • Override of program feedrate • LED status lights built into display • RJ45 Port and Ethernet card (O) • Override of program spindle speed • USB Thumb drive flash memory 512 or more (O) • Uncluttered front panel with few hard keys • Ballscrew and motor assembly installed on quill • Electronic quill handwheel Software Features – general operation • Clear, uncluttered screen display • Prompted data inputs • English language – no codes • Soft keys - change within context • Windows® operating system • Selectable two or three-axis CNC • Color graphics with adjustable views • Inch/mm selectable • Convenient modes of operation DRO Mode features • Incremental and absolute dimensions • Jog at rapid with override • Powerfeed X, Y or Z • Do One CNC canned cycle • Teach-in of manual moves • Servo return to 0 absolute • Tool offsets from library • Go To Dimensions (O) • Fine/Course handwheel resolution Program Mode features • Auto Geometry Engine (O) • Geometry-based programming • 3-axis geometry programming (O) • Tool Path programming (O) • Scaling of print data (O) • Multiple fixture offsets (O) • Programming of Auxiliary Functions • Event Comments (O) • Three-axis Geometry conversational programming (O) • Incremental and absolute dimensions • Automatic diameter cutter comp • Circular interpolation • Linear interpolation • Look –graphics with a single button push • List step – graphics with programmed events displayed • Alphanumeric program names • Program data editing • Program pause • Conrad – automatic corner radius • Math helps with graphical interface • Auto load of math solutions • Tool step over adjustable for pocket routines • Pocket bottom finish pass • Selectable ramp or plunge cutter entry • Subroutine repeat of programmed events • Nesting • Rotate about Z axis for skewing data • Mirror of programmed events (O) • Copy (O) • Copy rotate (O) • Copy mirror (O) Canned cycles • Position • Drill • Bolt Hole • Mill • Arc • Circle pocket • Rectangular pocket • Irregular Pocket (O) • Circular profile • Rectangular profile • Irregular Profile(O) • Circle Island (O) • Rectangular Island (O) • Irregular Island(O) • Helix (O) • Thread milling (O) • Engrave(O) • Tapping(O) • Face Mill (O) Edit mode Features • Delete events • Erase program • Spreadsheet editing (O) • Global data change (O) • G-Code editor (O) • Clipboard to copy events between programs (O) Set Up Mode Features • Program diagnostics • Advanced tool library • Tool names • Tool length offset with modifiers • Advanced diagnostic routines • Software travel limits • Tool path graphics with adjustable views • Program run time estimation clock (O) Run Mode Features • TRAKing • Trial run at rapid • 3D CAM file program run • 3D G code file run with tool comp • Real time run graphics with tool icon • Countdown clock to next pause or tool change (O) Program In/Out Mode Features • Program storage to USB Flash drive • CAM program converter • Converter for prior-generation ProtoTRAK programs • DXF/DWG file converter (O) • Selection of file storage locations (O) • Automatic file back-up routine (O) • Preview graphics for unopened files (O) • Networking (O) Control Options Advanced Features with Verify Option • Verify – see a 3-D model machined before cutting chips • Auto Geometry Engine ™ • 3-axis conversational programming • Additional Canned Cycles: - Irregular Pocket - Circle Island - Rectangular Island - Irregular Island - Irregular Profile - Helix - Thread milling - Engrave - Tapping - Face Mill • G-Code editor • Countdown clock to next pause or tool change • Total program time estimator • Spreadsheet editing • Global data change • Scaling of print data • Multiple fixture offsets • Event comments • Tool path conversational programming • Mirror of programmed events • Copy with or without offsets • Copy Rotate • Copy Mirror • Clipboard to copy events between programs Networking Option • Networking via RJ 45 port The DXF File Converter Option • Import and convert CAD data into ProtoTRAK programs • DXF or DWG files • Chaining • Automatic Gap Closing • Layer control • Easy, prompted process you can do right at the machine CAM Out Converter Option • Save ProtoTRAK files as CAM files for running on different controls
