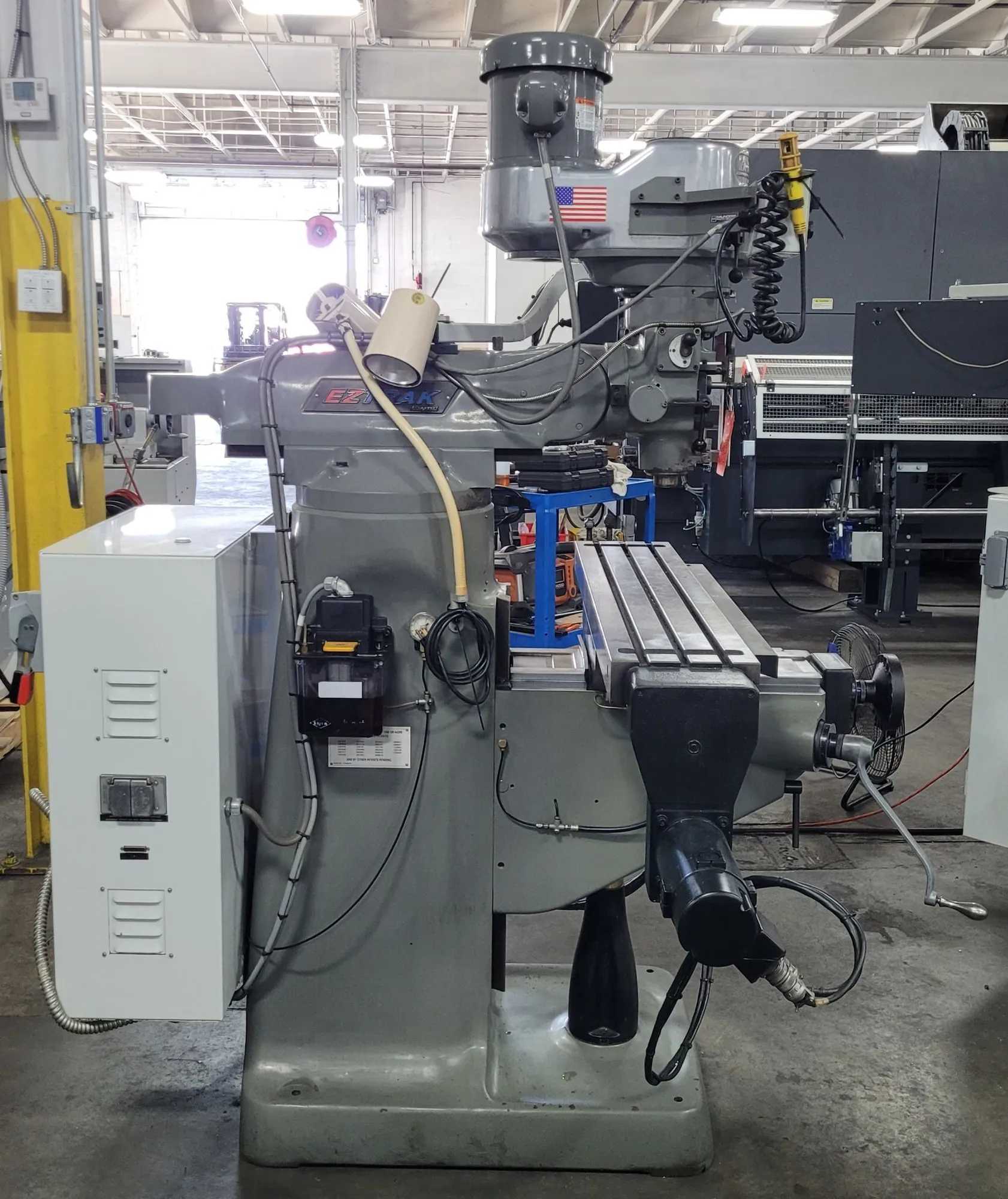

Bridgeport Series 1 EZ Trak DX Vertical Mill, 2 HP, 9" x 48" Table, R8 Spindle, 4200 RPM

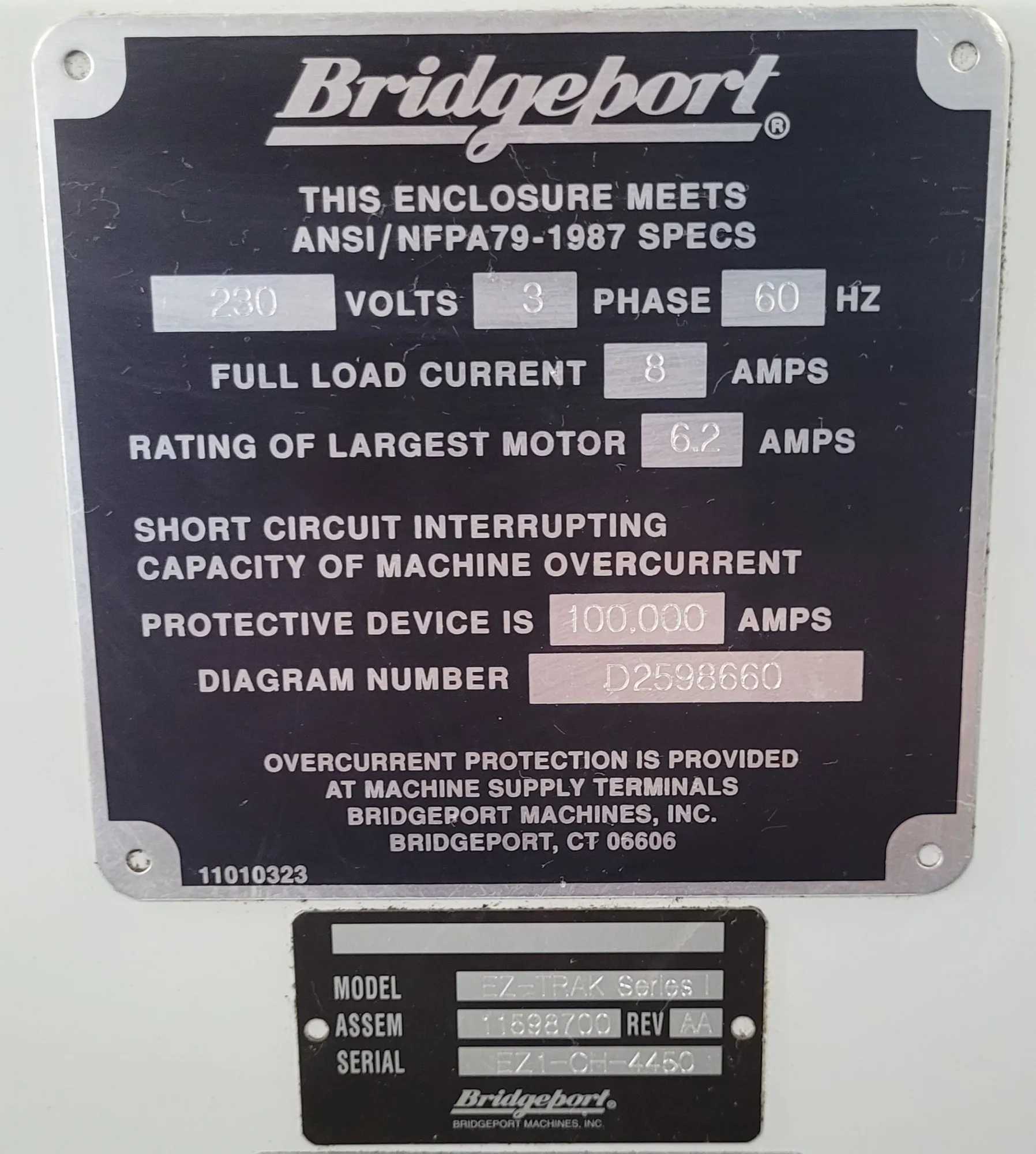

THE BRIDGEPORT SERIES 1 EZ TRAK DX VERTICAL MILL FEATURES A 2 HP VARIABLE SPEED HEAD WITH AN R8 TAPER SPINDLE AND CHROME WAYS. THE MACHINE IS EQUIPPED WITH A 9 INCH BY 48 INCH TABLE PROVIDING 33.5 INCHES OF LONGITUDINAL TRAVEL, 12 INCHES OF CROSS TRAVEL, AND 14 INCHES OF VERTICAL KNEE TRAVEL. THE SPINDLE OFFERS INFINITELY VARIABLE SPEEDS RANGING FROM 60 TO 4200 RPM, WITH QUILL TRAVEL OF 5 INCHES AND POWER FEEDS OF 0.0015, 0.003, AND 0.006 INCHES. THE UNIT INCLUDES A 12 INCH RAM TRAVEL AND A THROAT DISTANCE OF 6-3/4 INCHES TO 18-3/4 INCHES. POSITIONING AND FEED RATES FOR THE X AND Y AXES RANGE FROM 0.1 TO 100 INCHES PER MINUTE. ELECTRICAL SPECIFICATIONS INCLUDE A 1735 RPM MOTOR WIRED FOR 230V THREE-PHASE POWER AT 60 CYCLES, WITH A FULL LOAD AMPERAGE OF 6.2/3.1. PHYSICAL DIMENSIONS ARE APPROXIMATELY 70 INCHES BY 77 INCHES BY 87 INCHES HIGH, WITH AN APPROXIMATE WEIGHT OF 3,000 LBS. INTEGRATED COMPONENTS INCLUDE A TRICO MIST COOLANT SYSTEM, BUJIR AUTO LUBE SYSTEM, AND A CONSOLE FEATURING AN LED SCREEN, KEYPAD, AND USB DRIVE.
